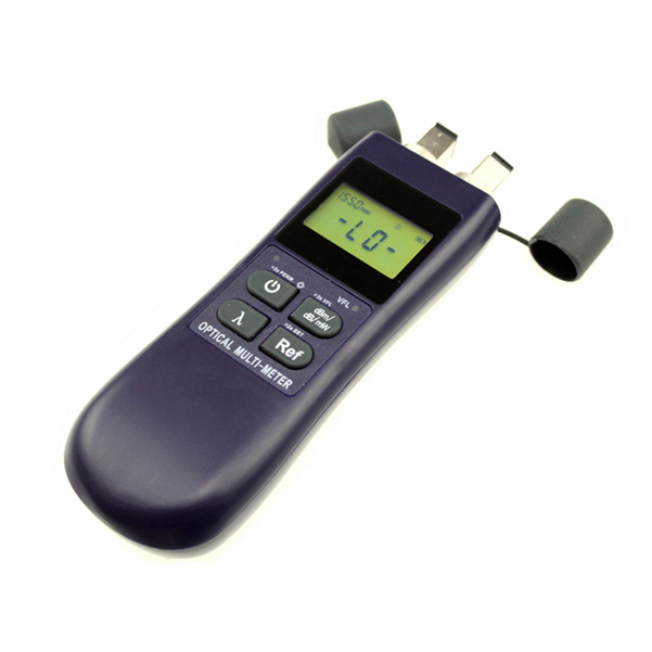

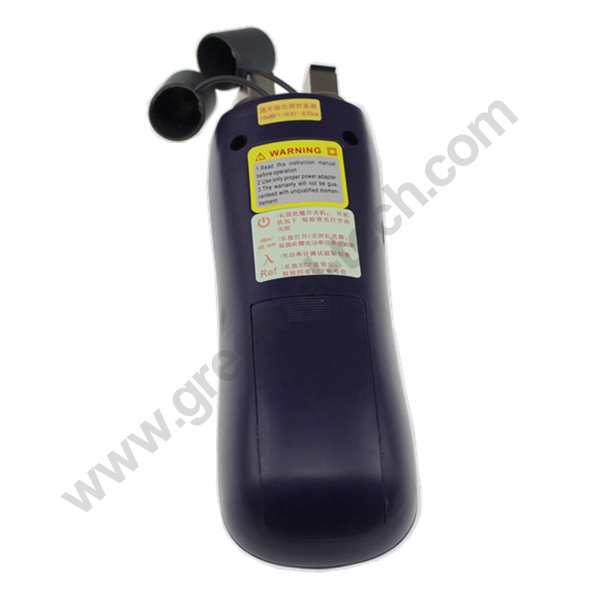

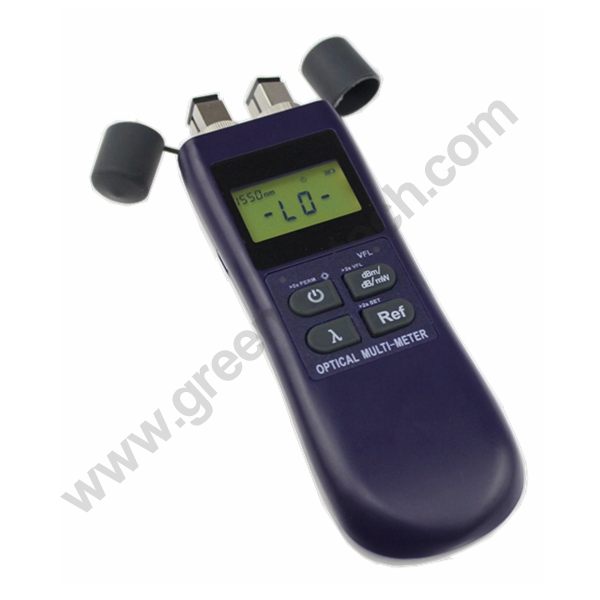

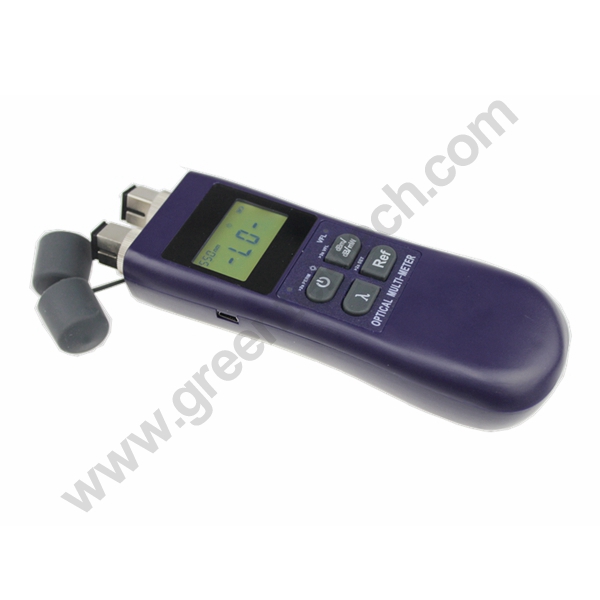

Optical Multimeter

Power meters and VFL are part of the most essential tools for all technicians especially during the installing or maintaining optical fiber networks in customer’s building or premise such as we call it FTTH jobs. GreenTel MV-15 series multi meters are specifically designed for such scenario, a 2-in-1 set which combines power meter and VFL in one unit incredibly facilitates technicians operational experience.

PREV:Visual Fault Locator
NEXT:Optical Light Source

Product Information
Feedback

Among those famous optical multimeter manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized optical power meter and vfl, opm and vfl, opm and vfl 2 in 1 made in China. Our factory is waiting for your contact. Description Power meters and VFL are part of the most essential tools for all technicians especially during the installing or maintaining optical fiber networks in customer’s building or premise such as we call it FTTH jobs. GreenTel MV-15 series multi meters are specifically designed for such scenario, a 2-in-1 set which combines power meter and VFL in one unit incredibly facilitates technicians operational experience. Features ● 2.5mm universal ferrule for FC, SC, ST adapters High resolution LCD screen with back light ● Pocket size design, easy to carry Built-in VFL ● Auto-off if no operation in 10 minutes ● Energy save mode ● Reference value storage; ● Power autonomy of 100 hours ● 850/1300/1310/1490/1550/1625nm for PM ● One year warranty and three-year recommended calibration interval Specification

Optical Multi Meter - MV-15 Parameter
Model	MV-15A-10	MV-15B-10
Measurement Range(dBm)	-70 to +10 dBm	-50 to +20 dBm
Accuracy *	+/- 0.2 dB
Calibrated Wavelengths	850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Resolution	0.01dB
Connector	Pre-installed SC/UPC Adaptor (additional FC/UPC with 2.5mm universal head)
Reference Value storage	Yes
Automatic Power Off	No operation in 10 minutes, Low battery alarm
Back Light	Yes
Detector Type	In GaAs
Battery Charge	Yes(Optional)
Wave ID	Yes (when working in pair with GreenTel OS-15 light source)
Built-in VFL	650nm(default 10mw, Class IIB), Optional 1mw,20mw
Power Supply	Input:AC 100-240V,50-60Hz Output: DC 5V/550mA
Battery Life	Above 100 hours
Power Supply	AA * 2 batteries or AC/DC power supply adapter
Size(HWD)	150mm * 55mm * 35mm
Weight	About 150g
Storage Temperature	-20 to +70℃ ,<90% RH
Operating Temperature	-10 to +50℃ ,<90% RH

* at 20.3 ℃,CW,with SC connector,-10dBm For 850nm,the Min.Power measurement:-60dBm@OM-15-A, -40dBm@OM-15-B Standard Package ①MV-15 main body*1 ②Nylon bag and the Q/C certificate*1 ③Additional FC adaptor*1 ④Operation Manual*1 ⑤Paper Box Optional Items ⑥ST Adaptor ⑦Male to Female LC Adaptor ⑧Power Charging Circuit (modification on meter) ⑨Power Charging USB Cable and AC/DC Power Adapter Ordering Information OM-15X-XX (1)OM-15A-10: PM(-70 to +10dBm), VFL(10mw) (2)OM-15B-01: PM(-50 to +26dBm), VFL(1mw)
