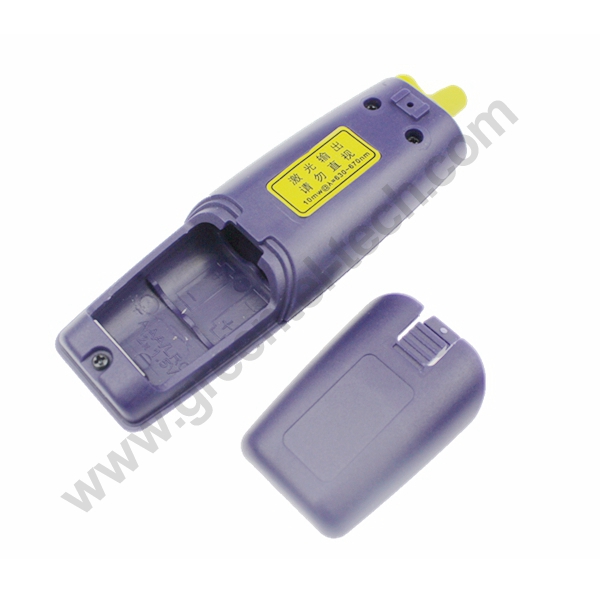

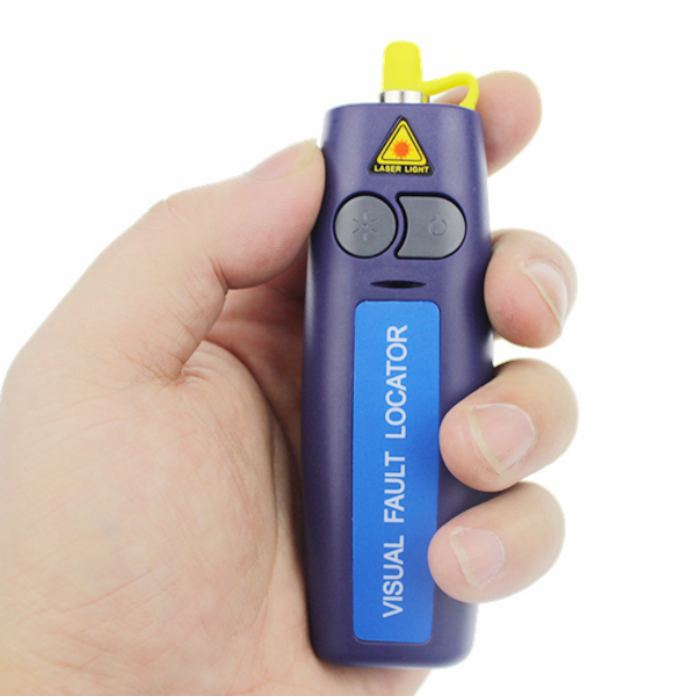

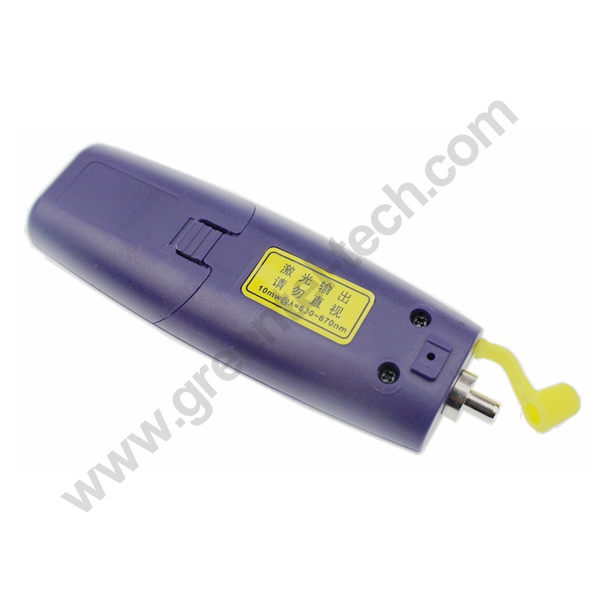

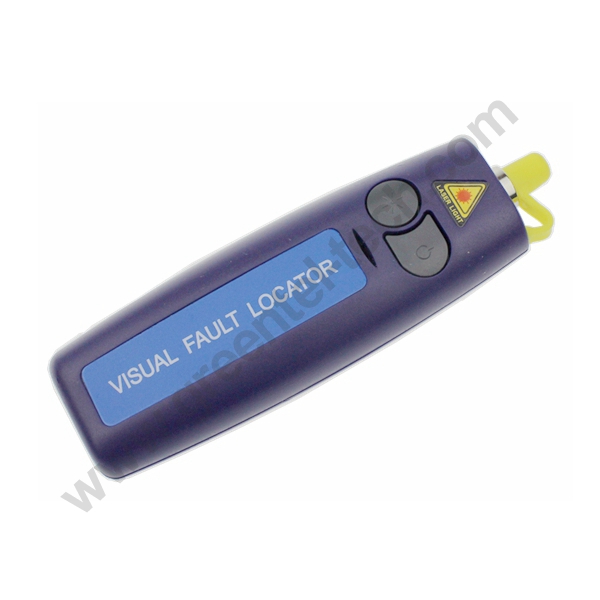

Visual Fault Locator

The pocket type VFL is the easiest way to identify fibers from end to end and locate connector endfaces. Its red laser shines through most yellow-jacketed fibers to help you trouble-shooting on fiber breaks,tight bends, faulty connections, splices and other causes of signal loss. GreenTel offers you the world-smallest VFL to the most demanding environment with reliable operation under intensive use and harsh conditions. It is a perfect complementary tool for OTDR because of its capability of finding
Contact Us
  • Product Information
  • Feedback
Among those famous visual fault locator manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized vfl, fiber fault finder, red light source, red laser source made in China. Our factory is waiting for your contact.   Description The pocket type VFL is the easiest way to identify fibers from end to end and locate connector endfaces. Its red laser shines through most yellow-jacketed fibers to help you trouble-shooting on fiber breaks,tight bends, faulty connections, splices and other causes of signal loss. GreenTel offers you the world-smallest VFL to the most demanding environment with reliable operation under intensive use and harsh conditions. It is a perfect complementary tool for OTDR because of its capability of finding breaks in the dead zone of OTDR. Features ● Bright red laser at 650nm ● Pulsed and CW operation ● 50 hours of operation(typical) ● Standard AA alkaline batteries ● Rugged and weatherproof design ● 2.5mm universal connector ● One-year warranty and Three-year recommended calibration interval Specification

Visual Fault Locator - OV-15 Parameter

Model

OV-15-01

OV-15-10

OV-15-15

OV-15-20

Wavelength

650nm +/- 20nm

Output Power *

>1mw

>10mw

>15mw

>20mw

Dynamic Distance **

>5km

>8km

>12km

>15km

Operation Mode

Pulsed(2Hz) and CW

Connector ***

2.5mm Universal Connector

Size(H*W*D)

138mm * 59mm * 20mm

Weight

About 130g

Storage Temperature

-20  to  +70℃  ,<90% RH

Operating Temperature

-10  to  +50℃  ,<90% RH

  *After 5 minutes warm-up, 20+/- 3 degrees, CW, FC connector **The distance is tested by G.655, single mode, lab level fiber ***Standard connector is 2.5mm UPP, 1.25mm UPP will be customized and increase the cost Standard Package ①MV-15 main body*1 ②Nylon bag and the Q/C certificate*1 ③Operation Manual*1 ④Paper Box Ordering Information OV-15X (1)OV-15-01: VFL(1mw) (2)OM-15-10: VFL(10mw) (3)OM-15-15: VFL(15mw) (4)OM-15-20: VFL(20mw)
