Optical Light Source

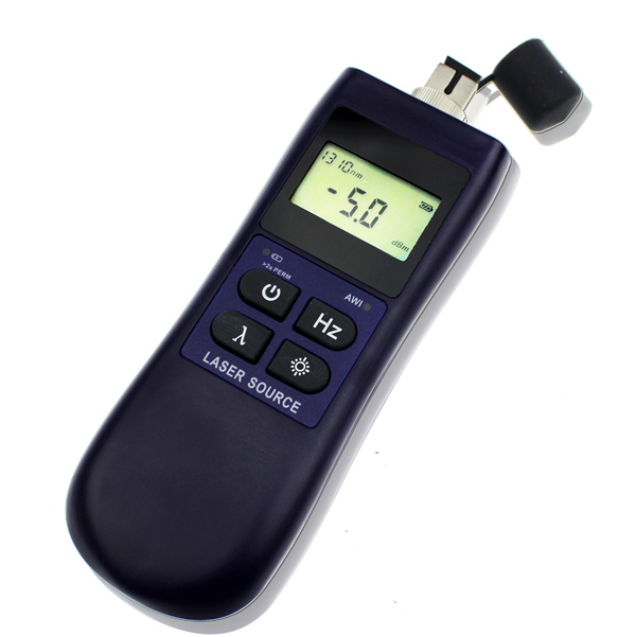

Light sources are part of the toolbox essentials working in pair with power meters to measure the optical attenuation and eliminate the faults when telecom technicians install or maintain optical fiber networks. GreenTel OS-15 light sources are well designed for first-class versatility With a rugged design, OS-15 light sources are built for top ruggedness, perfect for the harshest test conditions to verify the continuity and evaluate fiber link transmission quality.
Contact Us
  • Product Information
  • Feedback
Among those famous optical light source manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized optical laser source, ols made in China. Our factory is waiting for your contact.   Description Light sources are part of the toolbox essentials working in pair with power meters to measure the optical attenuation and eliminate the faults when telecom technicians install or maintain optical fiber networks. GreenTel OS-15 light sources are well designed for first-class versatility With a rugged design, OS-15 light sources are built for top ruggedness, perfect for the harshest test conditions to verify the continuity and evaluate fiber link transmission quality. Features ● 2-3 wavelengths output on a single port ● High stabilization, built-in optic isolator ● 270, 1000, 2000 Hz Tone ● Auto-Wave ID output(when work with GreenTel power meter OM-15) ● Back lighting LCD screen ● Energy save mode ● Power autonomy of 16 hours ● One-year warranty and Three-year recommended calibration interval Specification

Optical Light Source - OS-15 Parameter

Model

OS-15S

OS-15M

OS-15T

Wavelength(nm)

1310/1550

850/1300

1310/1490/1550

Stabilization *

0.05dB / 1 hour; 0.1dB / 8 hours

Output Power

> - 5dBm +/- 0.5dB (Laser: Class I)

Modulation

270Hz, 1KHz, 2KHz

Connector

Default SC/UPC adaptor (additional FC/UPC adaptor with 2.5mm universal head)

Auto Power Off

No operation in 10 minutes , Low battery energy

Spectral Width

3nm typical value

Wave ID

Yes ( when working in pair with GreenTel OM-15 series power meter)

Battery Charge

AA * 2 batteries or AC/DC power supply adapter

Operate Time

Above 16 hours

Power Supply

Input: AC 100-240V,50-60Hz / Output: DC 5V/550mA

Size(H*W*D)

150mm * 55mm * 35mm

Weight

About 150g

Storage Temperature

-20  to  +70℃ ,<90% RH

Operating Temperature

-10  to  +50℃ ,<90% RH

* After 5 minutes warm-up, 20.3 degrees, CW, FC connector, with optic isolator   Standard Package ①OS-15 main body*1 ②Nylon bag and the Q/C certificate*1 ③Additional FC adaptor*1 ④Operation Manual*1 ⑤Paper Box Optional Items ⑥ST Adaptor ⑦Male to Female LC Adaptor ⑧Power Charging Circuit (modification on meter) ⑨Power Charging USB Cable and AC/DC Power Adapter Ordering Information OS-15X (1)OS-15S: SM(1310/1550nm) (2)OS-15M: MM(850/1300nm) (3)OS-15T: SM(1310/1490/1550nm)
