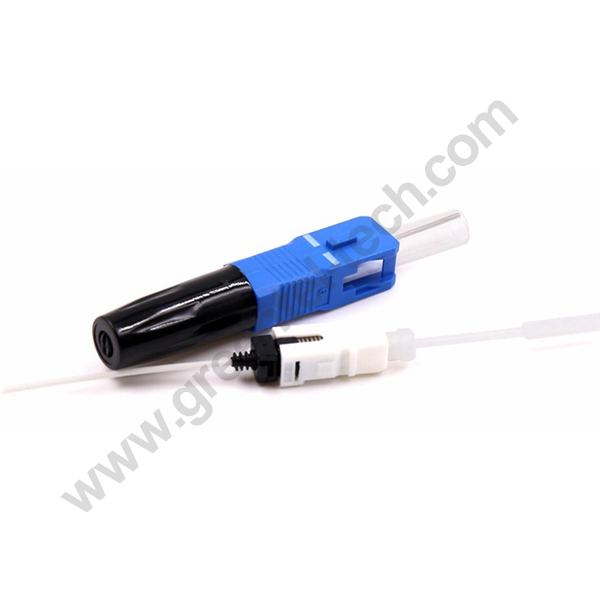

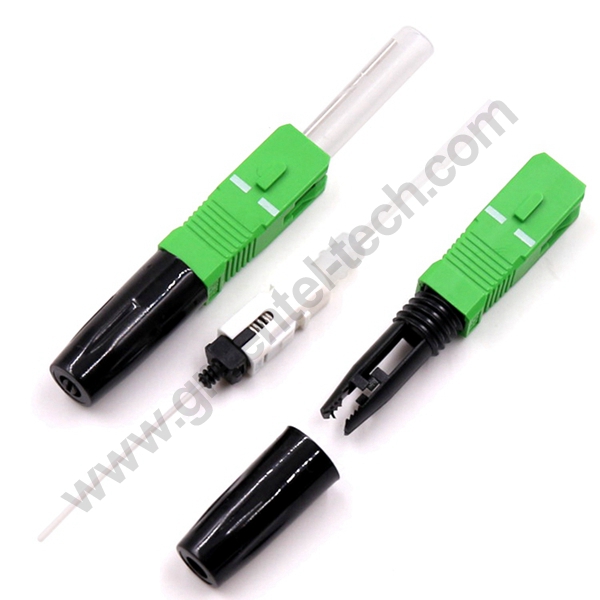

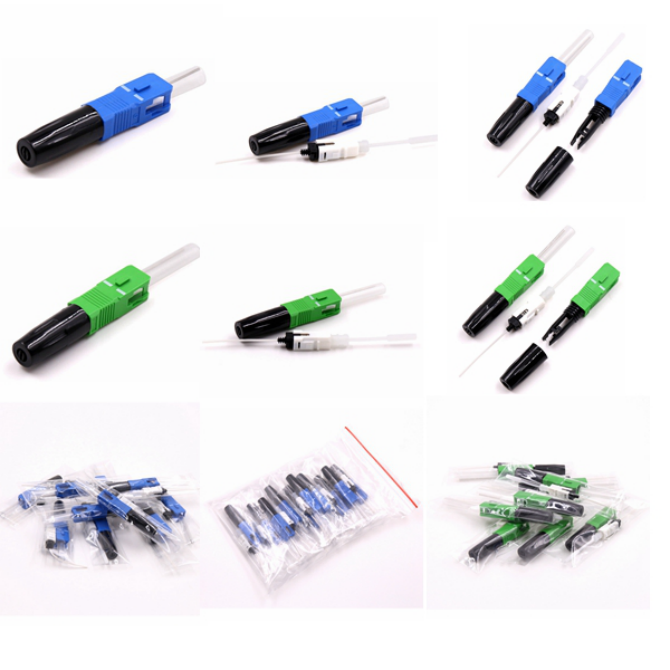

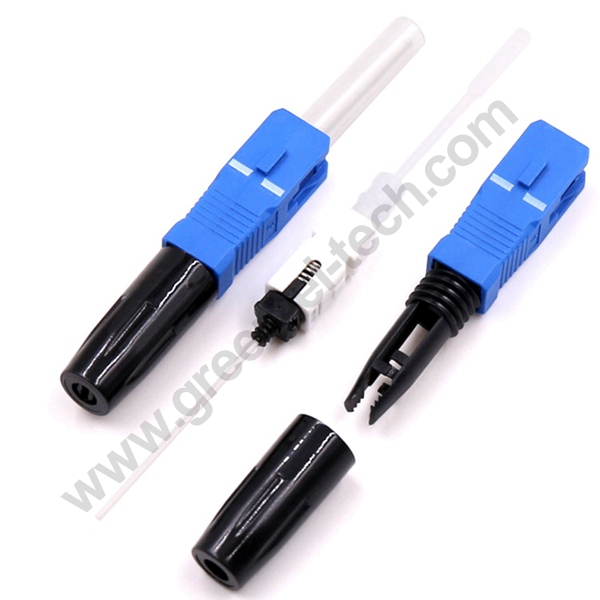

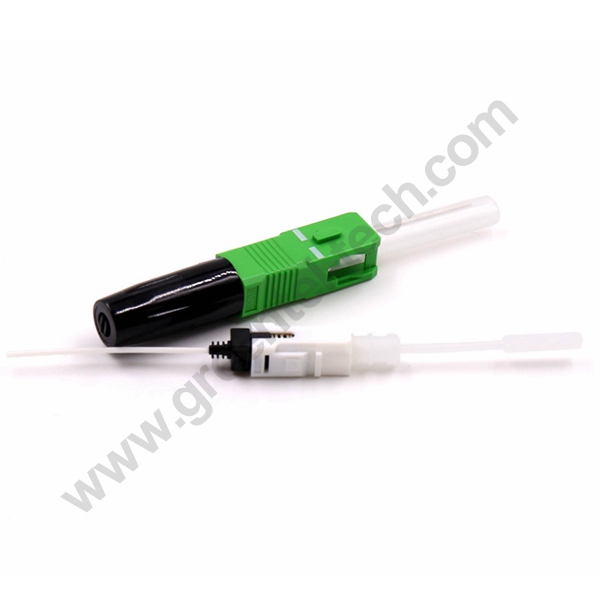

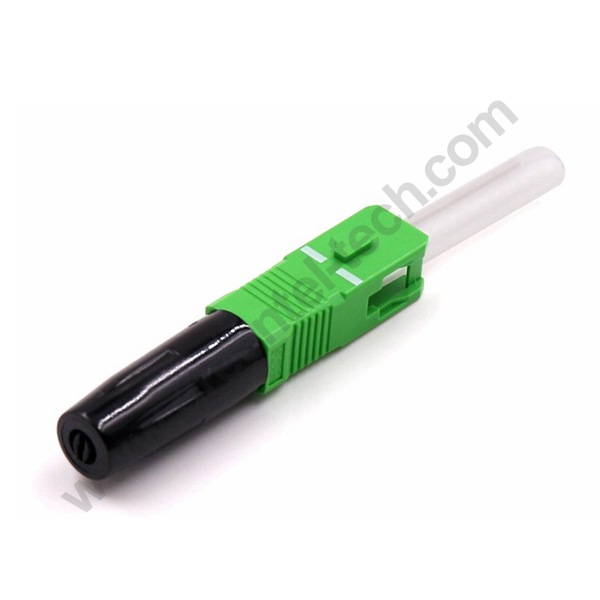

Fiber Splice On Connector

Among those famous fiber splice on connector manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized soc, optical splice on connector, fusion splice on connector made in China. Our factory is waiting for your contact.   Description For FTTH installation and deployment, mechanical connectors have been widely used, however unstable quality , weak durability and high maintenance cost might be of a concern,splice-on connectors are invented to provide a more solid solution for FTTH installation. Splice-on connector technology has made it an integration with fusion splicing machine to improve the field work effciency dramatically. The splice-on connector can be used not only in the filed of communication but also widely used in advanced technical fields including aero space,military,ship-building, medical,power plant and most of FTTh network solution. Features ● Suitable for FTTh butterfly type drop cable ● Low insertion loss(including optical adapter) ● Saving cost dramatically especially the maintenance cost ● High durability and high quality FTTH connectoring ● Enhanced high quality with improved optical features (Return loss & Splice loss) ● Enhanced & improved highly tensile strength(exceeding 60N) ● Easy to use Specification

Splice On Connector(SOC) Parameter
Connector Type	SC
Polish Type	UPC or APC
Cable Fixing Type	Screw Type
Suitable Fiber Type	Single Mode (SM)
Application Cable	2.0x3.1mm drop cable
Fiber Coating Diameter	250um
Insertion Loss(dB)	Average<0.2(including adaptor)(Max 0.3dB)
Return Loss(dB)	UPC>50 dB, APC>60dB
Impact Test	<0.2dB,1.5m,10 repetition
Durability Test	<0.2dB,500 x assembly/disassembly
Vibrate Test	<0.2dB,3x2hr/axis,1.5mm,10-55Hz
Thermal Cycle Test	<0.2dB,-40℃~ +75℃,21 cycles for 168 hrs
Humidity Test	<0.2dB,90 to 95%,Temp 75℃,21 cycles for 168 hrs
Tensile Force(N)	>60N
Working Temperature	-40 (℃) to +65(℃)
Storage Temperature	-40 (℃) to +85(℃)
Relative Humidity	<90%RH
Weight	4g

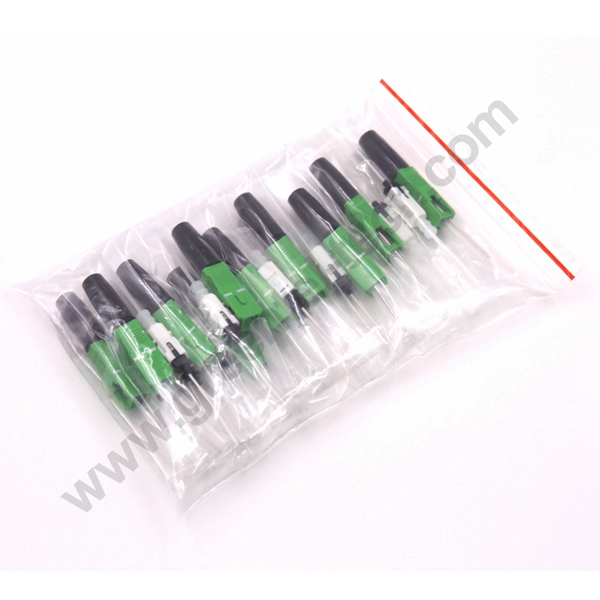

Packing Method	Individual plastic bag/pcs, big plastic bag/10pcs, paper carton/100pcs, big paper carton/1000pcs
