Fiber Optical Connector
  • Fiber Optical Connector
  • Fiber Optical Connector
  • Fiber Optical Connector
  • Fiber Optical Connector
  • Fiber Optical Connector
  • Fiber Optical Connector

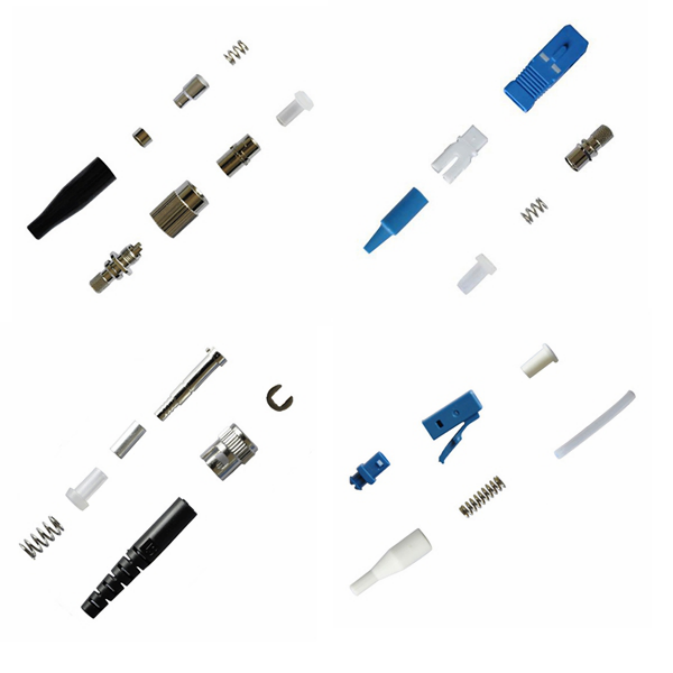

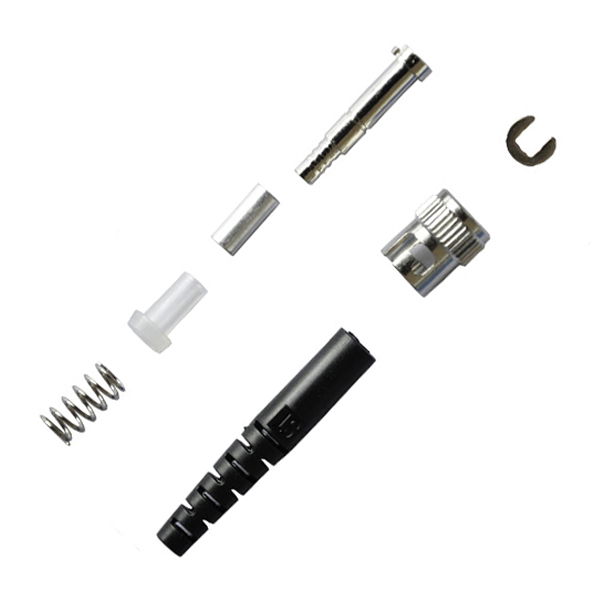

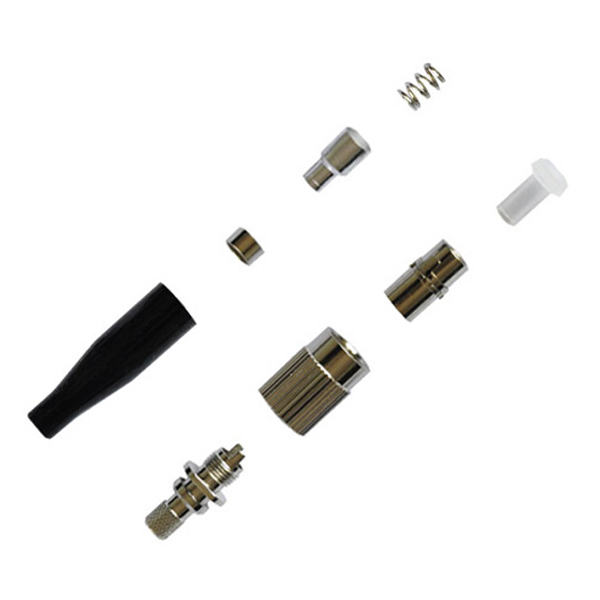

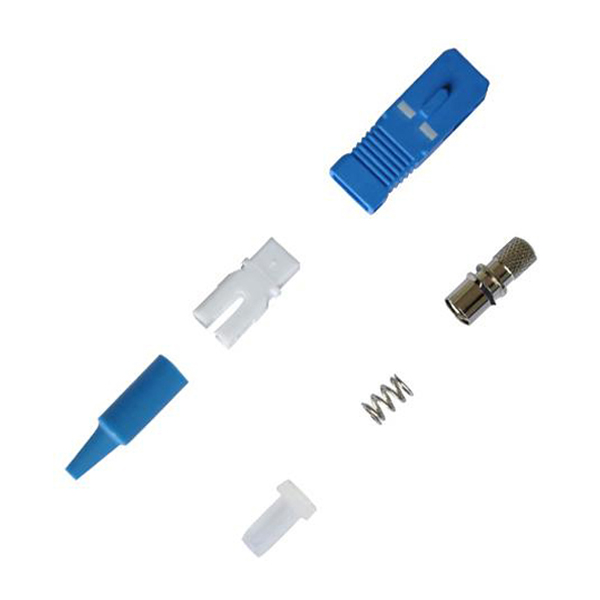

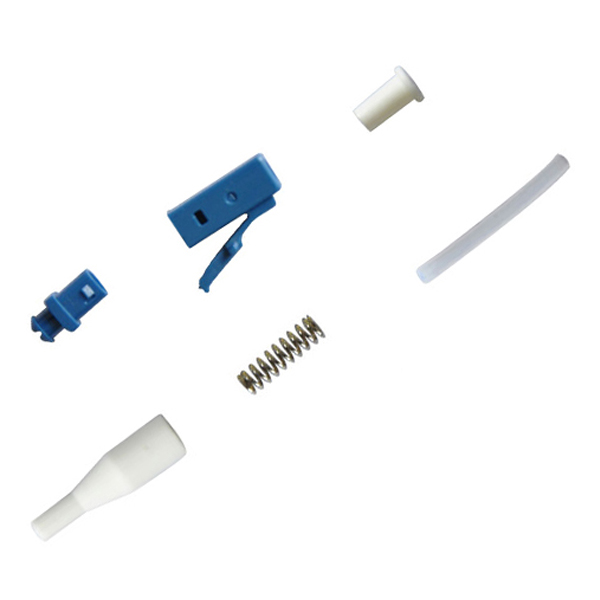

Fiber Optical Connector

With the rasing of FTTH construction around the world, fiber optical connectors are widely used for patchcord and PLC splitter factories for the connectivity with fiber optical cable.
Contact Us
PREV:No previous article
NEXT:Fiber Splice On Connector
  • Product Information
  • Feedback
Among those famous fiber optical connector manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber semi finished connector, fiber half finished connector made in China. Our factory is waiting for your contact.   Description With the rasing of FTTH construction around the world, fiber optical connectors are widely used for patchcord and PLC splitter factories for the connectivity with fiber optical cable. Features ● Low insertion loss ● High return loss ● Good repeatability ● Good interchangeability ● High temperature stability Application ● CATV ● Passive components (Pactchcord, PLC Splitter, WDM) factory ● Telecommunication networks ● PON (Passive Optical Network) ● FTTH (Fiber to the Home) Specification

Fiber Optical Connector Parameter

Connector Type

FC, SC, ST, LC, MU, E2000,

Polish Type

UPC or APC

Boot Type

Net Type

Suitable Fiber Type

Single Mode (SM) and Multi Mode(MM)

Boot Color

SM UPC:Blue, SM APC:Green, MM:Beige

Cable Count

Simplex or Duplex

Insertion Loss(dB)

<0.3

Return Loss(dB)

UPC>50 dB, APC>60dB, MM>35dB

Impact Test

<0.2dB,1.5m,10 repetition

Durability Test

<0.2dB,200 x assembly/disassembly

Vibrate Test

<0.2dB,3x2hr/axis,1.5mm,10-55Hz

Thermal Cycle Test

<0.2dB,-40℃~ +75℃,21 cycles for 168 hrs

Humidity Test

<0.2dB,90 to 95%,Temp 75℃,21 cycles for 168 hrs

Tensile Force(N)

>10N

Working Temperature

-40 (℃) to +65(℃)

Storage Temperature

-40 (℃) to +85(℃)

Relative Humidity

<90%RH

Assembly Situation

Before Assembly or Semi-Assembly

Weight

4g

Packing Method

Plastic bag/10pcs, paper carton/100pcs, big paper carton/1000pcs

Hot Tags: fiber optical connector, fiber semi finished connector, fiber half finished connector factory, customized, manufacturers China, suppliers China, made in China, China made



Green Telecom

Registered in 1999,Green Telecom is professional China Fiber Optical Connector suppliers annd OEM/ODM Fiber Optical Connector company, engaged in the integration and service of customized projects of deployment and detection of optical communication network. Green Telecom offers the most comprehensive selection of fiber optic splice closure products to customers in different industries.

Green Telecom owns a factory of 40,000 square meters,with employees over 130 people,to manufacture 1) Telecom Racks and Cabinets 2) Plastic Fiber Termination Boxes 3) Fiber Passive Products 4) Fiber Test Instruments 5) custom Fiber Optical Connector and etc.
