Field Assembly Optical Connector

Among those famous field assembly optical connector manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized faoc, fiber fast connector, optical quick connector, fiber mechanical splice connector made in China. Our factory is waiting for your contact.   Description With the rasing of FTTH construction around the world, field assembly optical connector FAOC is a most common solution used to terminate optical fiber especially for FTTh box. Filed assembly optical connector FAOC technology enable site engineers to build a connector upon the existing optical cable within just a few minutes, it enhances the working efficiency dramatically, and FAOC is reusable for 10 time so it is also the most saving solution for telecom operators. Filed assembly optical connector FAOC technology is wildly applied in ODN construction, especially in fiber distribution box, fiber termination box and fiber rossette. Features ● Suitable for FTTh butterfly type drop cable ● Low insertion loss(including optical adapter) ● Screw design, easy to open and close ● Preset fiber and matching-fluid design minimizes optical loss ● Best quality ceramic ferrule ● Guaranteed optical loss less than 0.5dB ● Easy to use, reusable for 10 times Specification

Field Assembly Optical Connector(FAOC) Parameter
Connection Type	Preset fiber with matching fluid

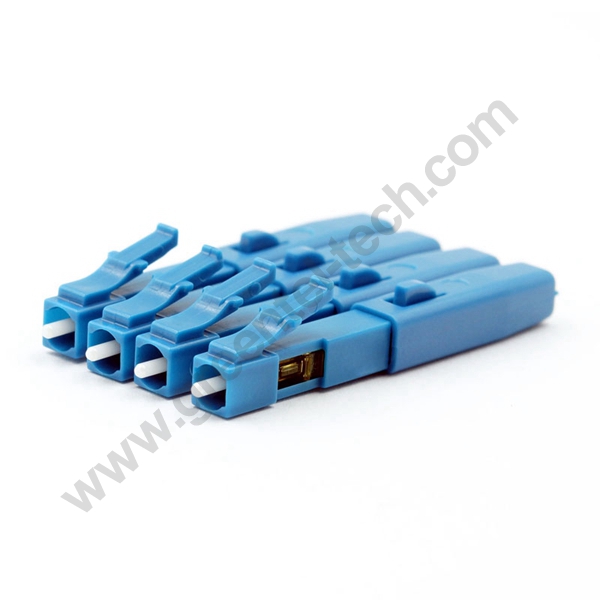

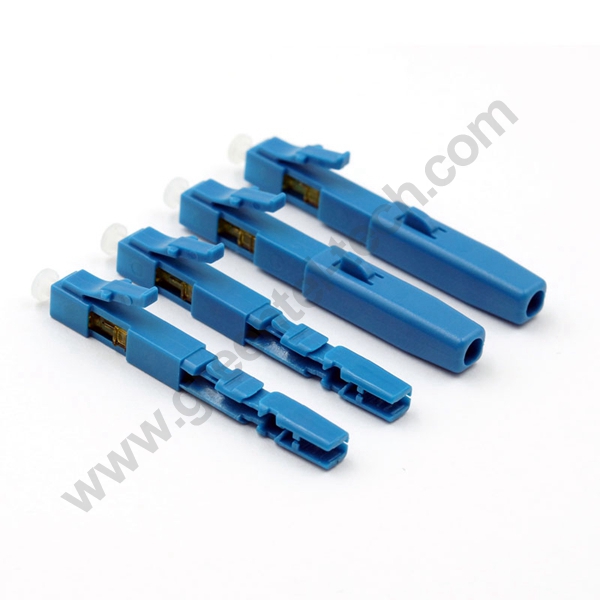

Connector Type	SC or LC
Polish Type	UPC or APC
Cable Fixing Type	Screw Type
Suitable Fiber Type	Single Mode (SM) and Multi Mode(MM)
Application Cable	2.0x3.1mm drop cable
Fiber Coating Diameter	250um
Insertion Loss(dB)	<0.5(including adaptor)
Return Loss(dB)	UPC&#62;40 dB, APC&#62;45dB
Impact Test	<0.2dB,1.5m,10 repetition
Durability Test	<0.2dB,200 x assembly/disassembly
Vibrate Test	<0.2dB,3x2hr/axis,1.5mm,10-55Hz
Thermal Cycle Test	<0.2dB,-40℃~ +75℃,21 cycles for 168 hrs
Humidity Test	<0.2dB,90 to 95%,Temp 75℃,21 cycles for 168 hrs
Tensile Force(N)	&#62;10N
Working Temperature	-40 (℃) to +65(℃)
Storage Temperature	-40 (℃) to +85(℃)
Relative Humidity	<90%RH

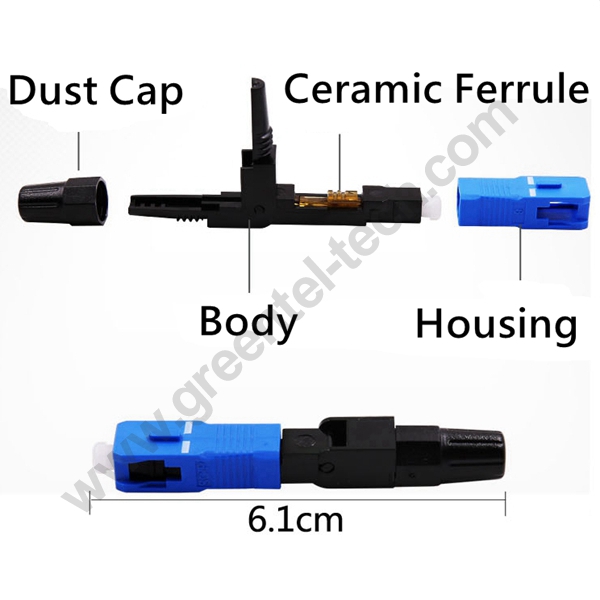

Connector Length	6.1cm
Weight	4g

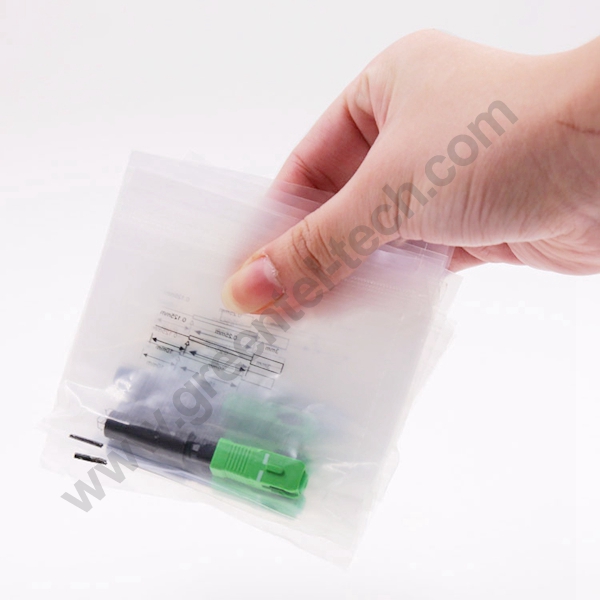

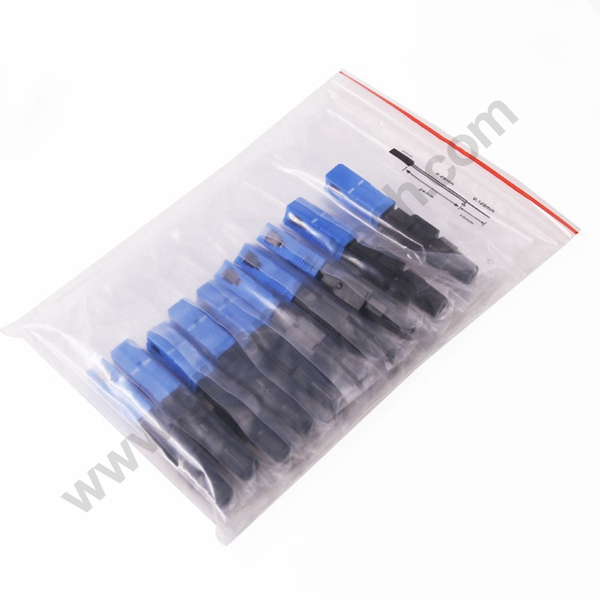

Packing Method	Individual plastic bag/pcs, big plastic bag/10pcs, paper carton/100pcs, big paper carton/1000pcs
