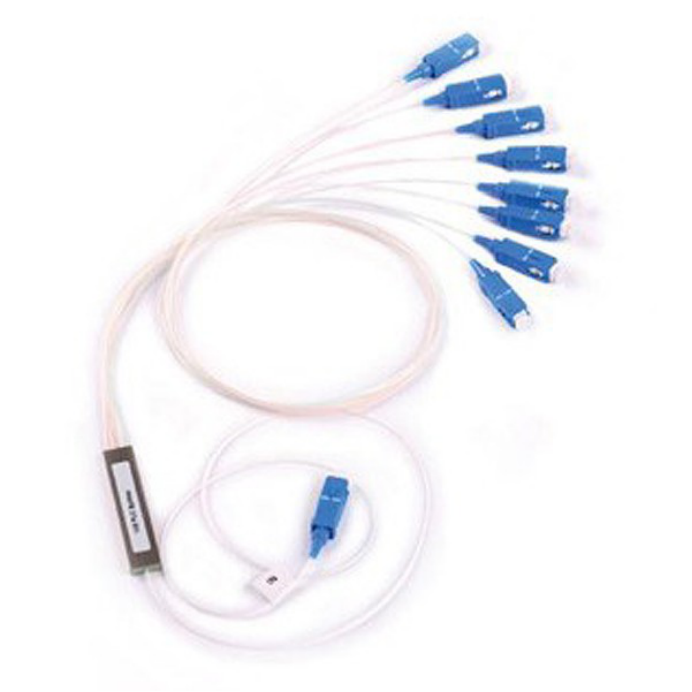

Steel Tube PLC Splitter

Green Telecom provides a high precise steel tube type PLC splitter for the construction of optical network .Low requirements of placing position and environment, compact micro type design. It is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes, in favor of splicing and stay in tray without additional space reservation. It can be easily applied in FTTh construction, optical network construction,CATV networks and etc.
Contact Us
  • Product Information
  • Feedback
Among those famous steel tube plc splitter manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized micro type plc splitter, mini type plc splitter, steel box plc splitter, mini tube plc splitter made in China. Our factory is waiting for your contact.

Description
Green Telecom provides a high precise steel tube type PLC splitter for the construction of optical network .Low requirements of placing position and environment, compact micro type design. It is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes, in favor of splicing and stay in tray without additional space reservation.
It can be easily applied in FTTh construction, optical network construction,CATV networks and etc.
Features
● Compact design
● Low insertion loss and low PDL
● High reliability
● High channel counts
● Wide wavelength range
● Large operating and temperature range
● Customized packaging and configuration
● Full Telcordia GR1209/1221 qualifications
Specification
1×N (N>2) PLCS (With connector) Optical parameters
Parameters
1×2
1×4
1x8
1×16
1×32
1×64
Operation wavelength
1260~1650nm
Insertion loss (dB) Max
4.1
7.4
10.5
13.8
17.1
21
Uniformity (dB)   Max
0.6
0.7
0.8
1.2
1.5
2.0
Return loss   (dB) Minimum
APC
55
55
55
55
55
55
UPC
50
50
50
50
50
50
PDL (dB)          Max
0.2
0.2
0.3
0.3
0.3
0.3
Directivity (dB)    Min
55
55
55
55
55
55
Pigtail length (m)
1.2(±0.1) or customer specified
Fiber type
G.657A
Operation temperature
-40~85(°C)
Storage temperature
-40~85(°C)
Dimension (L×W×H) (mm)
60×7×4
60×12×4
80×20×6
100×40×6
2×N (N>2) PLCS (With connector) Optical parameters
Parameters
2×4
2×8
2×16
2×32
2×64
Operation wavelength
1260~1650(nm)
Insertion loss (dB) Max
7.7
10.8
14.1
17.4
21.4
Uniformity (dB)   Max
0.6
0.8
1.0
1.5
2.0
Return loss
      (dB) Min
APC
55
55
55
55
55
UPC
50
50
50
50
50
PDL (dB)         Max
0.2
0.3
0.4
0.4
0.4
Directivity (dB)   Min
55
55
55
55
55
Pigtail length (m)
1.2(±0.1) or customer specified
Fiber type
G.657A
Operation temperature
-40~85 (°C)
Storage temperature
-40~85 (°C)
Dimension (L×W×H) (mm)
60×7×4
80×12×4
80×20×6
100×40×6

Customization Event
①Channel count
②Fiber core type
③Input fiber length
④Input connector type
⑤Output fiber length
⑥Output connector type
