ABS Box PLC Splitter

Among those famous abs box plc splitter manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized box type plc splitter, cassette type plc splitter, black box type plc splitter, plastic box type plc splitter made in China. Our factory is waiting for your contact.

Description

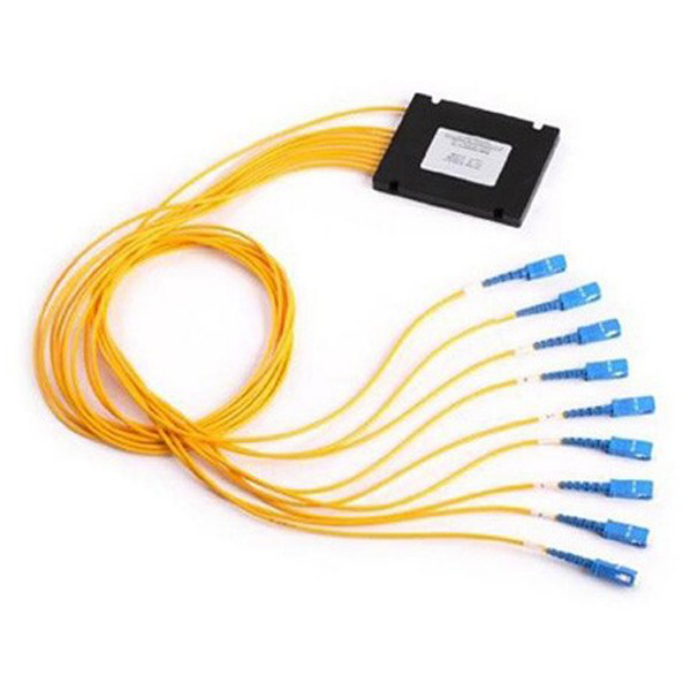

Green Telecom provides a high precise box/cassette type PLC splitter for the construction of optical network .Low requirements of placing position and environment, compact cassette type design,can easily be placed into optical distribution cabinet,optical distribution hub or any kind of box with some space reserved.
It can be easily applied in FTTh construction, optical network construction,CATV networks and etc.

Features
● Compact design
● Low insertion loss and low PDL
● High reliability
● High channel counts
● Wide wavelength range
● Large operating and temperature range
● Customized packaging and configuration
● Full Telcordia GR1209/1221 qualifications

Specification

1×N (N>2) PLCS (With connector) Optical parameters

Parameters

1×2

1×4

1x8

1×16

1×32

1×64

Operation wavelength

1260~1650nm

Insertion loss (dB) Max

4.1

7.4

10.5

13.8

17.1

21

Uniformity (dB)   Max

0.4

0.7

0.8

1.0

1.3

1.9

Return loss
      (dB) Minimum

APC

55

55

55

55

55

55

UPC

50

50

50

50

50

50

PDL (dB)          Max

0.2

0.2

0.3

0.3

0.3

0.3

Directivity (dB)     Min

55

55

55

55

55

55

Pigtail length (m)

1.2(±0.1) or customer specified

Fiber type

G.657A

Operation temperature

-40~85(°C)

Storage temperature

-40~85(°C)

Dimension (L×W×H) (mm)

100×80×10

120×80×18

2×N (N>2) PLCS (With connector) Optical parameters

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operation wavelength

1260~1650(nm)

Insertion loss (dB) Max

4.4

7.7

11.0

14.1

17.4

21.5

Uniformity (dB)   Max

0.6

0.6

0.8

1.0

1.5

2.0

Return loss
      (dB) Min

APC

55

55

55

55

55

55

UPC

50

50

50

50

50

50

PDL (dB)         Max

0.2

0.2

0.3

0.4

0.4

0.4

Directivity (dB)   Min

55

55

55

55

55

55

Pigtail length (m)

1.2(±0.1) or customer specified

Fiber type

G.657A

Operation temperature

-40~85 (°C)

Storage temperature

-40~85 (°C)

Dimension (L×W×H) (mm)

100×80×10

120×80×18

Customization Event
 ①Channel count
②Fiber core type
③Input fiber length
④Input connector type
⑤Output fiber length
⑥Output connector type
⑦Input cable type
⑧Output cable type
