Fiber Hybrid Adaptor

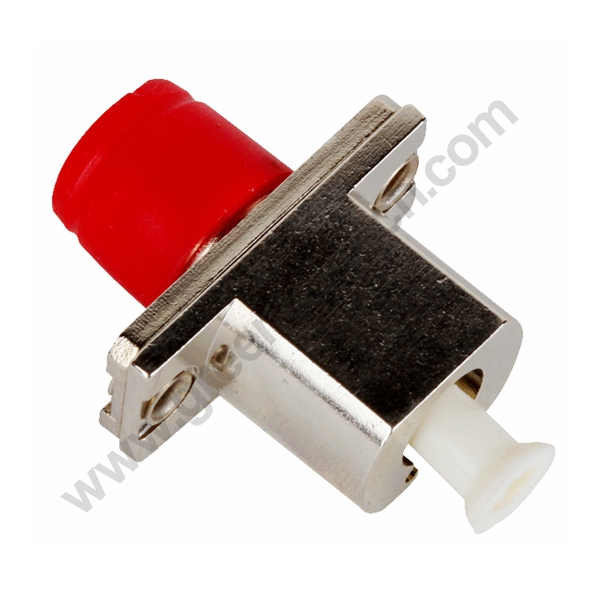

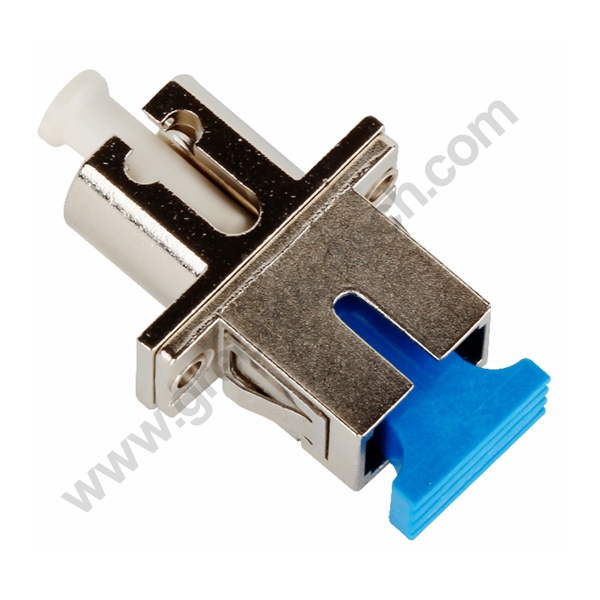

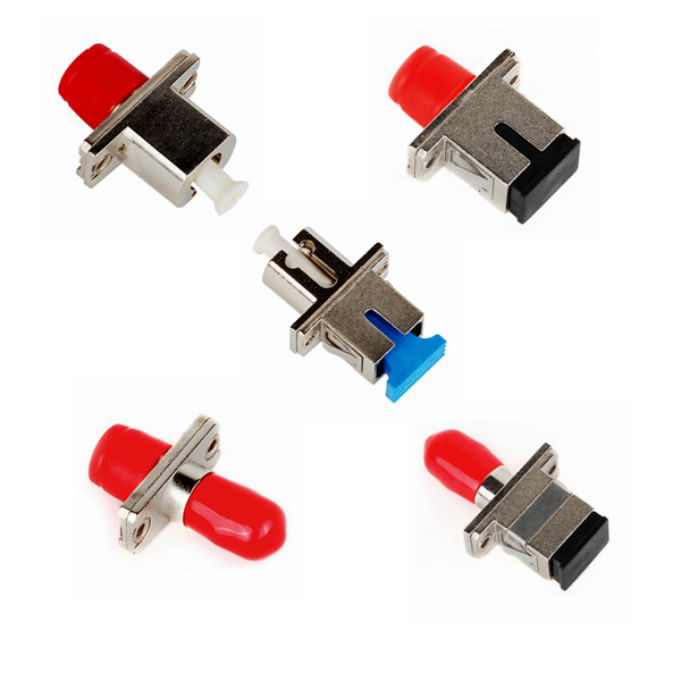

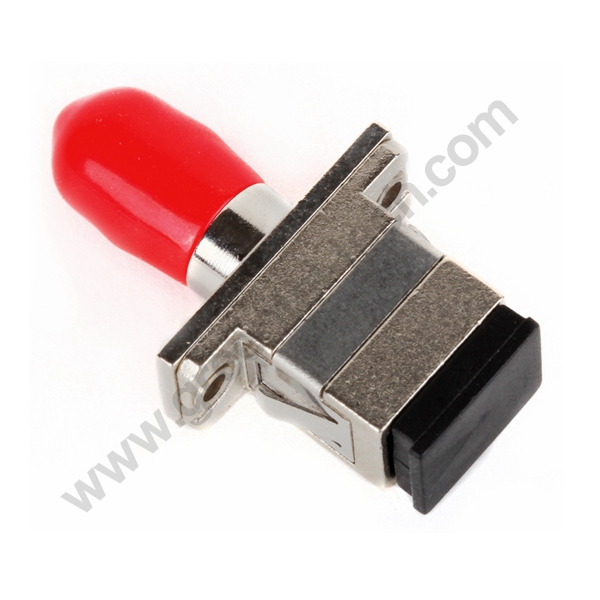

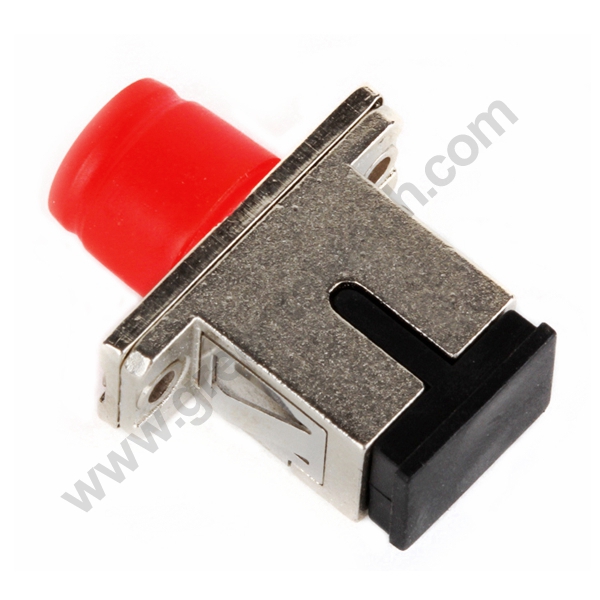

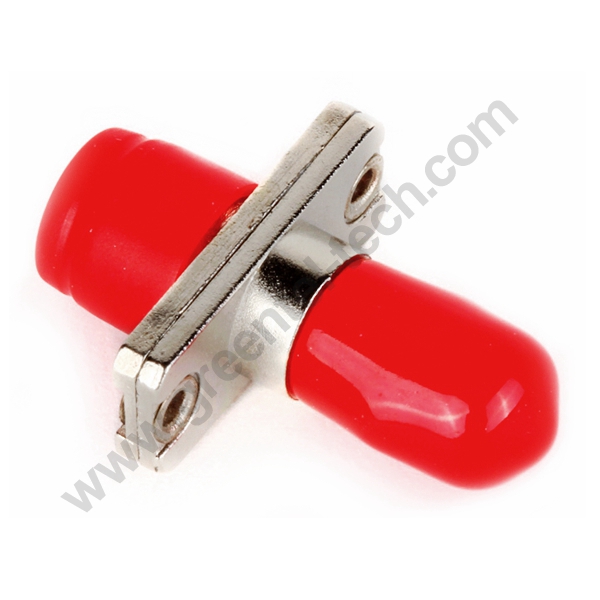

Among those famous fiber hybrid adaptor manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber hybrid adapter, optical hybrid adaptor, optical mating switch made in China. Our factory is waiting for your contact.   Description Fiber adaptor is one kind of fiber flanges to be used for the interconnection between two fiber connectors. UPC and APC polishing are available to be selected. For interconnecting fiber connectors, there are two kinds of fiber adaptors, mating sleeve and hybrid adaptor. Hybrid adaptor is used in interconnecting of two different connectors so that it is widely applied in optical fiber management system, optical testing project, ODN, FTTh , Metro, CATV. Features ● Easy to use ● Easy to be installed in ODN equipments ● High reliability ● Low insertion loss ● Zirconia ceramic tube ● Large operating and temperature range ● Customized packaging and configuration ● Full Telcordia GR1209/1221 qualifications Specification

Mating Sleeve Fiber Adaptor Parameter
Connector Type	SC FC ST LC MU E2000 MU MTRJ
Polish Type	UPC or APC
Fiber Insertion Loss(dB)	< 0. 2
Interchangeability(dB)	<0. 2
Durability	> 1000 times
Repeatability(500 times)(dB)	<0. 1
Working Temperature	-20 (℃) to +60(℃)
Storage Temperature	-40 (℃) to +80(℃)
Relative Humidity	<90%RH
