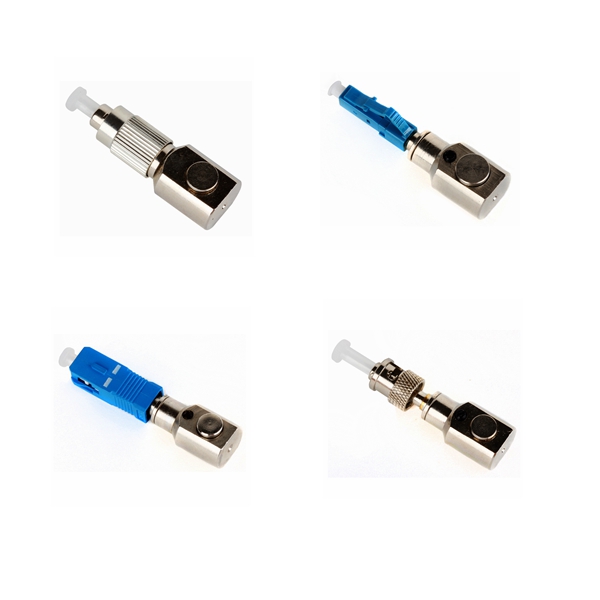

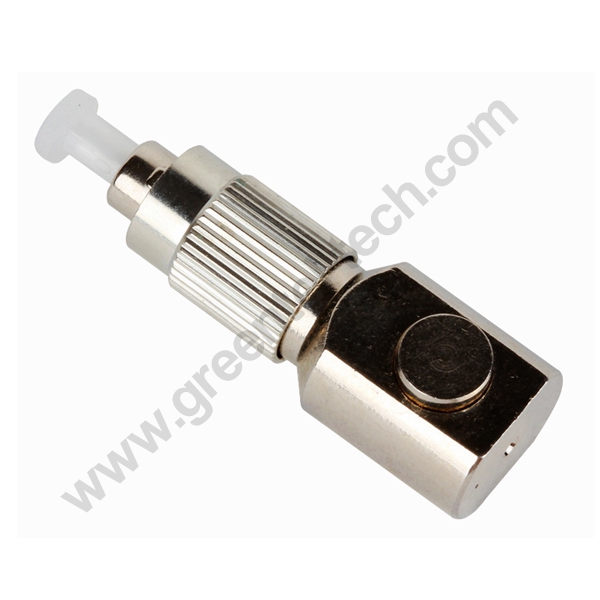

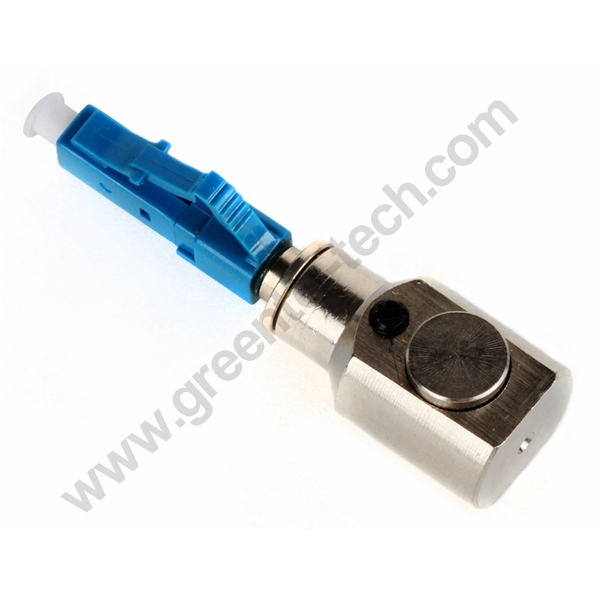

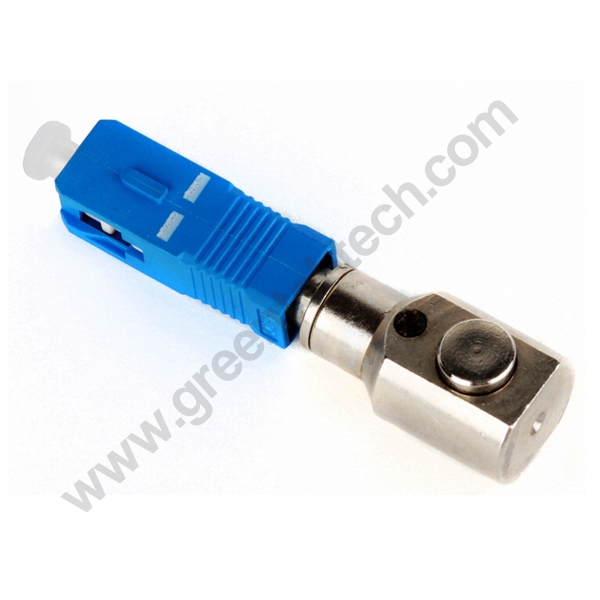

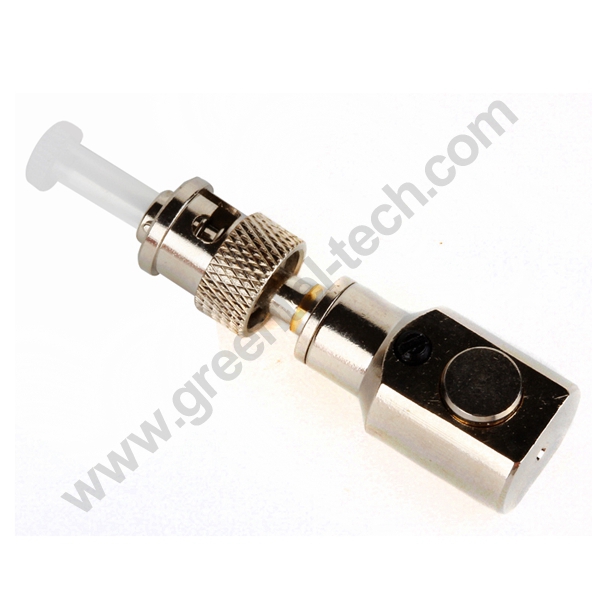

Bare Fiber Adaptor

Among those famous bare fiber adaptor manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized bare fiber adapter, quick fiber adaptor, site fiber adaptor made in China. Our factory is waiting for your contact.   Description Fiber adaptor is one kind of fiber flanges to be used for the interconnection between two fiber connectors. UPC and APC polishing are available to be selected. For interconnecting fiber connectors, there are two kinds of fiber adaptors, mating sleeve and hybrid adaptor. Bare fiber adaptor is a special hybrid adaptor for 0. 25mm bare fiber(tight buffer coating) to form an adaptor quickly. Bare fiber adaptor is widely applied in field testing,ODF and ODN project. Features ● Easy to use ● Easy to be installed in ODN equipments ● High reliability ● Low insertion loss ● Zirconia ceramic tube ● Large operating and temperature range ● Customized packaging and configuration ● Full Telcordia GR1209/1221 qualifications Specification

Mating Sleeve Fiber Adaptor Parameter
Connector Type	SC FC ST LC MU E2000 MU MTRJ
Polish Type	UPC or APC
Fiber Insertion Loss(dB)	< 0. 2
Interchangeability(dB)	<0. 2
Durability	> 1000 times
Repeatability(500 times)(dB)	<0. 1
Working Temperature	-20 (℃) to +60(℃)
Storage Temperature	-40 (℃) to +80(℃)
Relative Humidity	<90%RH
