Fiber Access Terminal FATB-0416A

Among those famous fiber access terminal FATB-0416A manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FATB-0416A made in China. Our factory is waiting for your contact.



Description

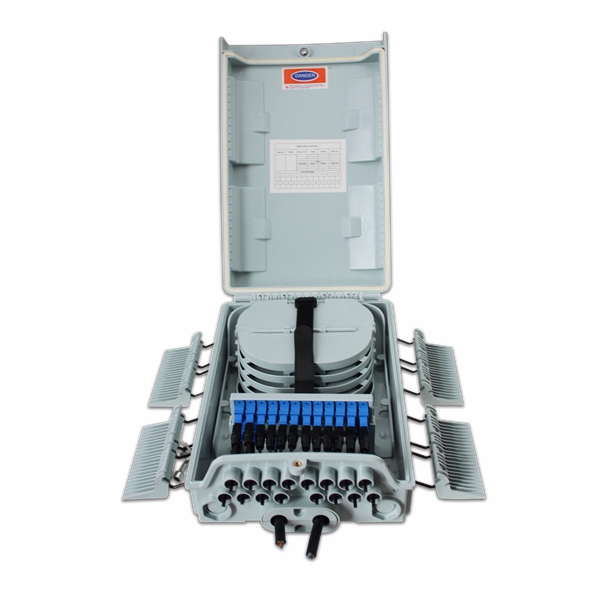

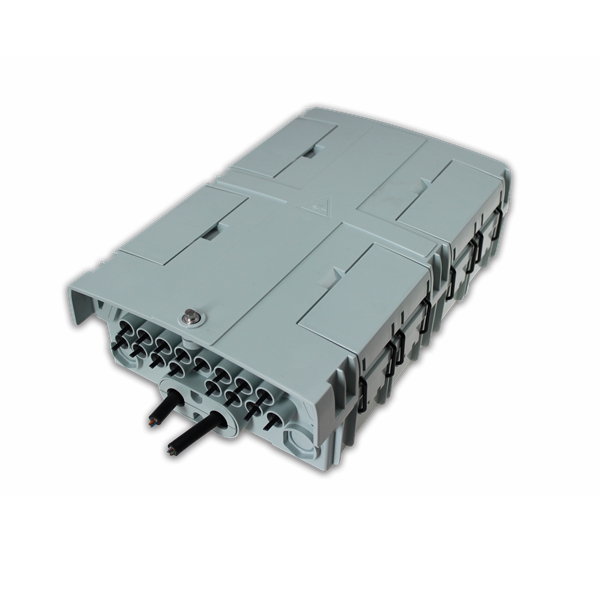

FATB-0416A fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

● Water-proof design with IP-65 Protection level.
● Integrated with flap-up splice cassette and adapter holder.
● Maximum 120F splice capacity,stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 2pcs of 1*8 PLC splitter can be installed
● 16pcs of mechanical ports for 3-7mm drop cable.
● 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)

Configuration

Fiber Access Terminal FATB-0416A Parameter

Material

Size

Max Capacity

Nos of adapter

Weight

Color

PC+ABS

AxBxC(mm)

Splice 120 fibers

PLC splitter

24pcs SC/UPC

1.85kg

Grey/Black

340x220x95

(5 trays x 24F)

2 pcs of 1x8(SC)

or 24pcs SC/APC

Application
● wall-mounted installation
● pole-mounted installation
● Aerial-hanging installation
● suitable for 2*3mm indoor FTTH drop cable an outdoor4-7mm figure-8 self-supporting drop cable

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube,key,wrench,rubber seal for cable entrance.

Optional Accessories
Pole mounted kits.
