Fiber Access Terminal FAT-16D
  • Fiber Access Terminal FAT-16D
  • Fiber Access Terminal FAT-16D
  • Fiber Access Terminal FAT-16D
  • Fiber Access Terminal FAT-16D
  • Fiber Access Terminal FAT-16D

Fiber Access Terminal FAT-16D

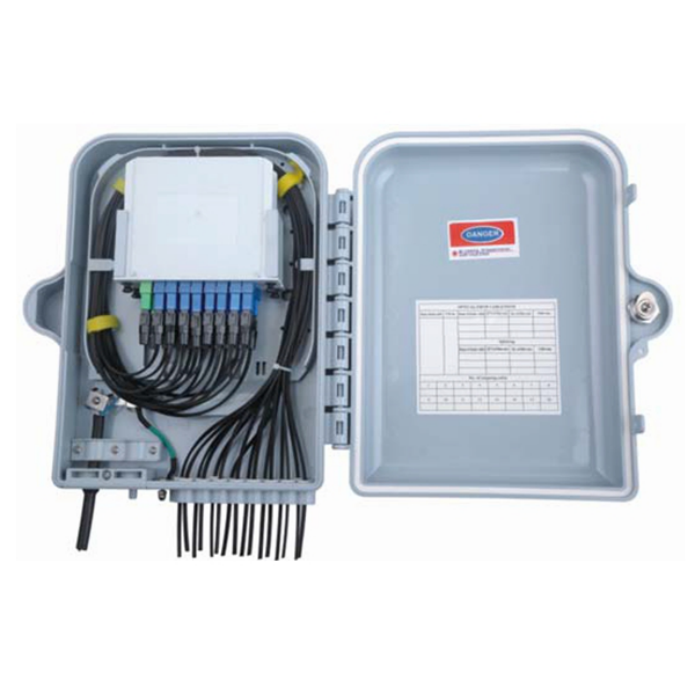

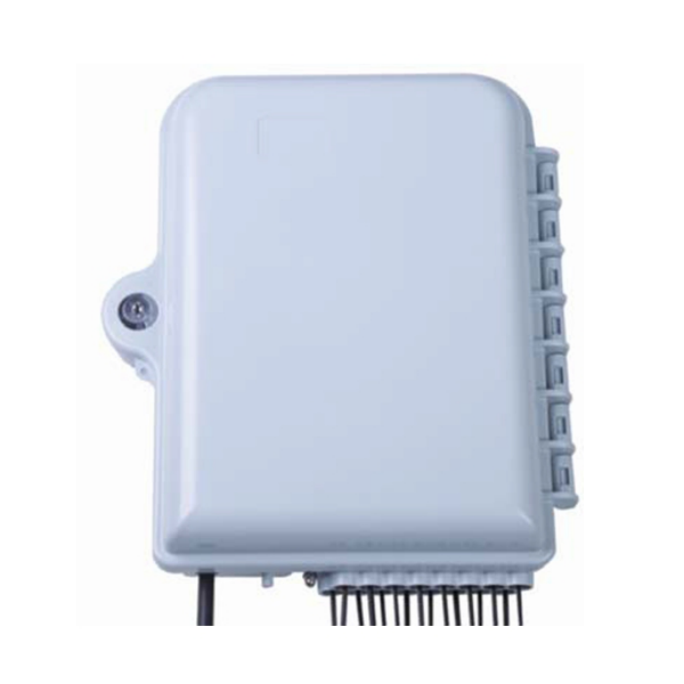

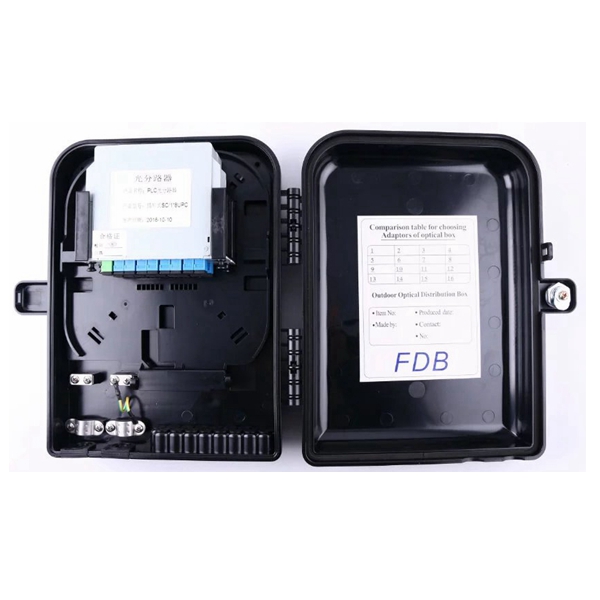

FAT-16D fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
PREV:Fiber Access Terminal FATB-0416A
NEXT:Fiber Access Terminal FAT-16C
  • Product Information
  • Feedback
Among those famous fiber access terminal fat-16d manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal fat-16d made in China. Our factory is waiting for your contact.

Description
FAT-16D fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features

● Water-proof design with IP-65 Protection level.
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.

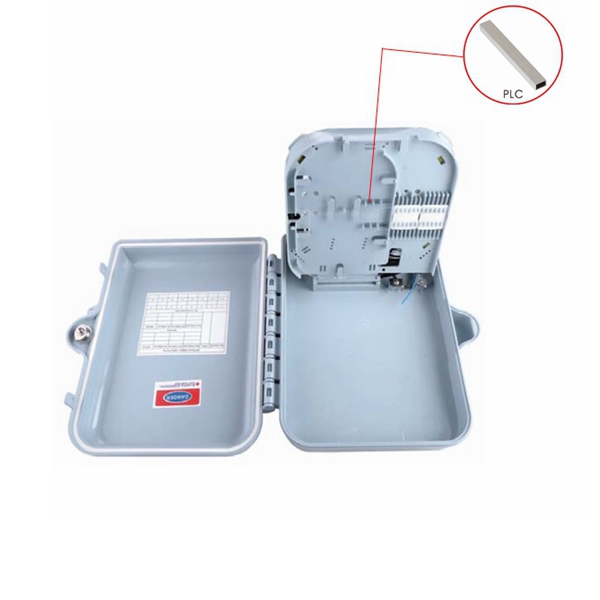

● 1*16 Modular Splitter can be installed as an option.
● Efficient cable management.

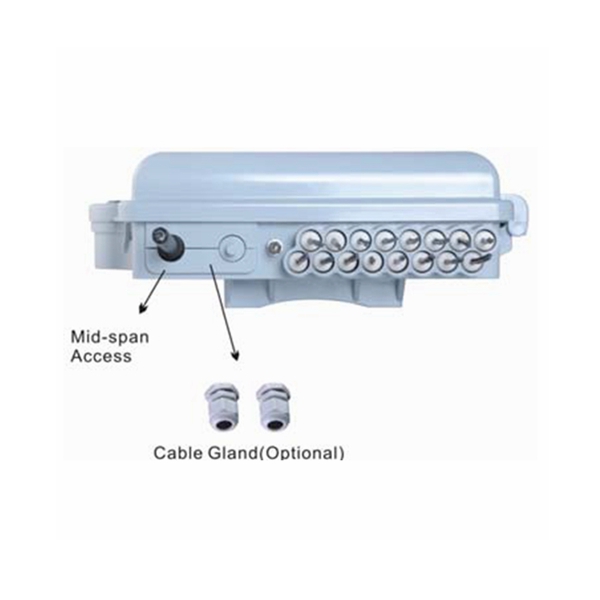

● 16 ports cable entrance for drop cable.
Configuration
Fiber Access Terminal FAT-16D Parameter

Material

Size

Max Capacity

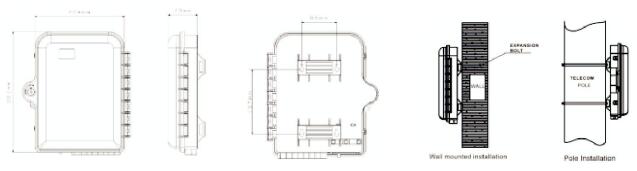

Installation Size

Weight

Color

PC+ABS

AxBxC(mm)

SC

Modular PLC

DxE(mm)

1.4kg

Light Grey

301x224x73

16 Ports

1x16(SC)

157x85





Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber seal for cable entrance.


Optional Accessories
Pole ring, Extra lock and key
