Fiber Access Terminal 12 Cores

GREEN TELECOM TECHNOLOGY CO.,LTD
Located in Ningbo,China.

Fiber Access Terminal FAT-12B
  • Fiber Access Terminal FAT-12B
  • Fiber Access Terminal FAT-12B
  • Fiber Access Terminal FAT-12B

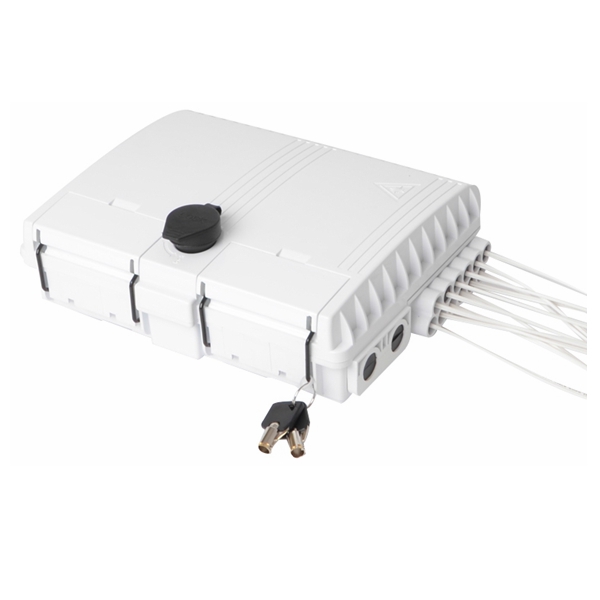

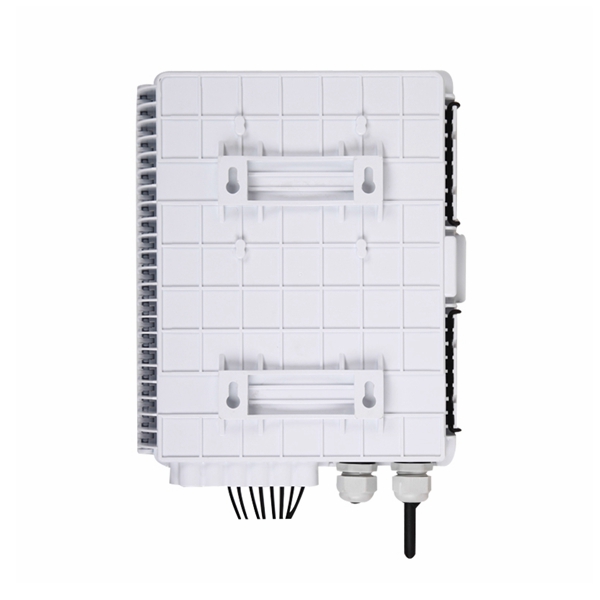

Fiber Access Terminal FAT-12B

FAT-12B fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
  • Product Information
  • Feedback
Among those famous fiber access terminal fat-12B manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal fat-12B made in China. Our factory is waiting for your contact.

Description


FAT-12B fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


Features

  • Water-proof design with IP-65 Protection level.
  • Integrated with splice cassette and cable management rods.
  • Manage fibers in a reasonable fiber radius condition.
  • Easy to maintain and extend the capacity.
  • Fiber bend radius control more than 40mm.
  • Suitable for the fusion splice or mechanical splice.
  • 1*8 PLC Splitter can be installed as an option.
  • Efficient cable management.
  • 12ports cable entrance for drop cable.


Configuration

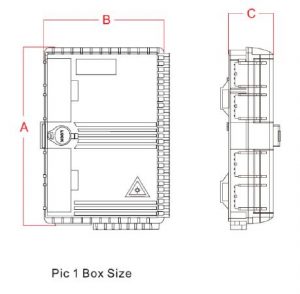

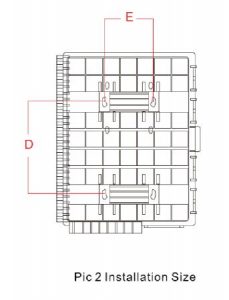

Fiber Access Terminal FAT-12A Parameter
Material Size Max Capacity Installation Size Weight Color
PC+ABS AxBxC(mm) SC LC PLC DxE(mm) 1.2kg White
250x190x72 12Ports 24 Ports 1x8(SC) 130x82


Standard Accessories

  Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber seal for cable entrance.


Optional Accessories

  Pole ring, Extra lock and key



Green Telecom

Registered in 1999,Green Telecom is professional China Fiber Access Terminal FAT-12B suppliers annd OEM/ODM Fiber Access Terminal FAT-12B company, engaged in the integration and service of customized projects of deployment and detection of optical communication network. Green Telecom offers the most comprehensive selection of fiber optic splice closure products to customers in different industries.

Green Telecom owns a factory of 40,000 square meters,with employees over 130 people,to manufacture 1) Telecom Racks and Cabinets 2) Plastic Fiber Termination Boxes 3) Fiber Passive Products 4) Fiber Test Instruments 5) custom Fiber Access Terminal FAT-12B and etc.
