Fiber Access Terminal FAT-12A
  • Fiber Access Terminal FAT-12A
  • Fiber Access Terminal FAT-12A
  • Fiber Access Terminal FAT-12A

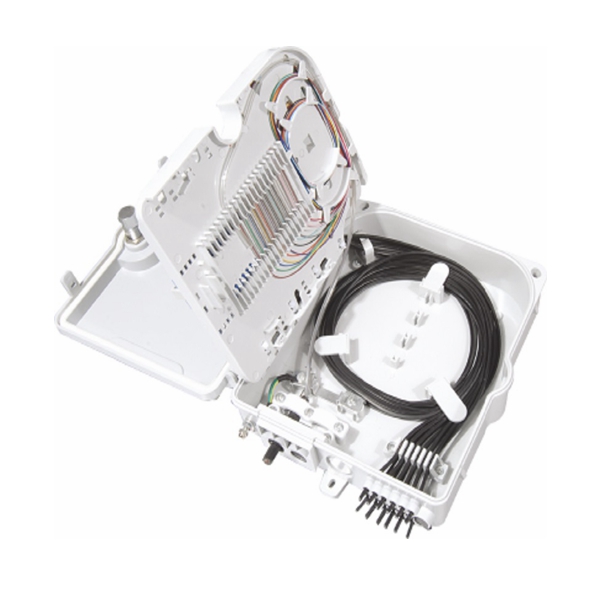

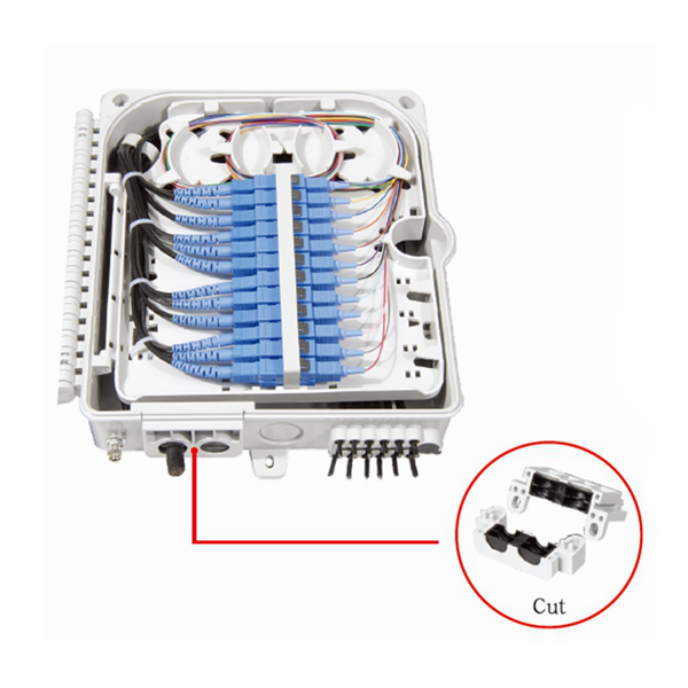

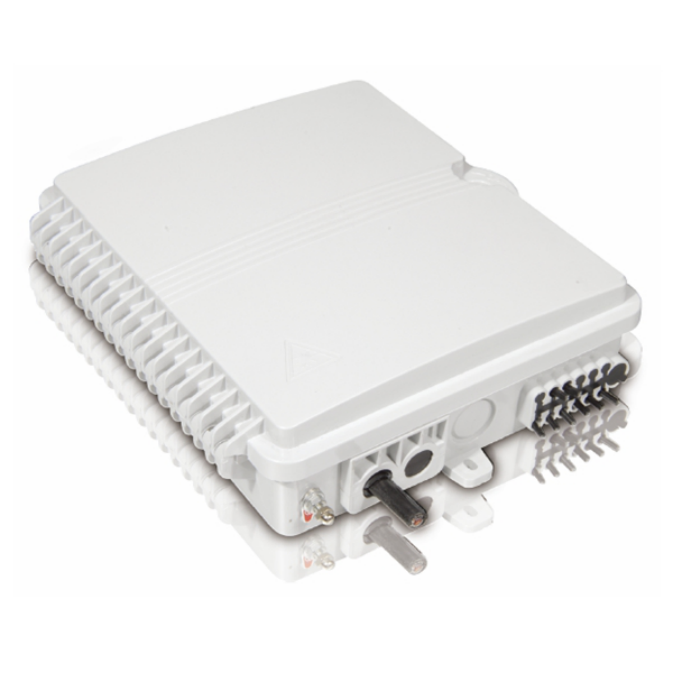

Fiber Access Terminal FAT-12A

FAT-12A fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
PREV:Fiber Access Terminal FAT-12B
NEXT:No next article
  • Product Information
  • Feedback
Among those famous fiber access terminal fat-12a manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal fat-12a made in China. Our factory is waiting for your contact.

Description
FAT-12A fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
● Water-proof design with IP-65 Protection level.
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.
● 1*8 Splitter can be installed as an option.
● Efficient cable management.
● 12 ports cable entrance for drop cable.
Configuration
Fiber Access Terminal FAT-12A Parameter

Material

Size

Max Capacity

Installation Size

Weight

Color

PC+ABS

AxBxC(mm)

SC

LC

PLC

DxE(mm)

1.5kg

Light Grey

235x200x62

12 Ports

24 Ports

1x8(SC)

168x210


Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber seal for cable entrance.
Optional Accessories
Pole ring, Extra lock and key
