ODF Patch Panel P2 Series
  • ODF Patch Panel P2 Series

ODF Patch Panel P2 Series

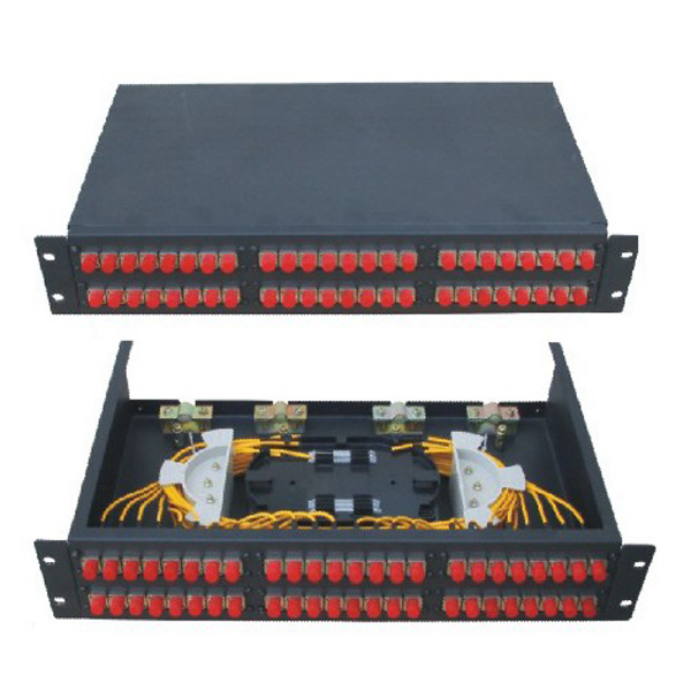

ODF patch panels are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management. Green Telecom ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction , ODN construction, LAN, Metro network and CATV.
Contact Us
  • Product Information
  • Feedback
Among those famous odf patch panel p2 series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized odf patch panel p2 series made in China. Our factory is waiting for your contact.   Description ODF patch panels are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management. Green Telecom ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction , ODN construction, LAN, Metro network and CATV.   Features ● Standard 19" fixed bolt installation rack-mounted design ● Integrated with splice cassette and cable management elements ● Manages large quantities of fiber with high density design ● Easy to maintain and extend fibers in the future ● Fiber bend radius control more than 40mm ● Suitable for the splice of ribbon and bunchy cables ● Maximum capacity up to 144 ports ● Efficient space for cable management ● Cable led out from left or right side of patch panel rear part ● Fully comply with Telcordia GR1209/1221 qualifications Specification

ODF Patch Panel P2 Parameter

Adaptor Type

SC,FC,ST,Duplex SC,Duplex LC

Capacity

12,24,48,72,96,144 fibers

Body Material

Cold rolled steel or stainless steel

Surface Treatment

Powder coating black or white color

Installation Method

Standard 19 inch rack mount

Size Dimension(mm)

485(W) x300(D)x46(H)(19"1U) for 12/24F

485(W) x300(D)x92(H)(19"2U) for 48F

485(W) x300(D)x140(H)(19"3U) for 72F

485(W) x300(D)x185(H)(19"4U) for 96F

485(W) x300(D)x200(H)(19"4.5U) for 144F

Strengthen Member Fixation

Yes

Bending Radius(mm)

>40

Customization Event ①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Print Ordering Information ODF-P2-XX -XX- XX-- XX- XX-- XX 1 -   2 -   3 -   4 -   5 -   6

1 Body Material

2 3 Adaptor

4 Capacity

5 Pigtail

6 Body Color

01:Cold Rolled Steel

Nil:No Adaptor

12:12F

09B:0.9mm Bunchy

WT:White

02:Stainless Steel

SU:SU/UPC

24:24F

09S:0.9mm Single

BK:Black

SA:SA/UPC

48:48F

09R:0.9mm Ribbon

GY:Grey

FU:FC/UPC

72:72F

20S:2.0mm Single

FA:FC/APC

96:96F

30S:3.0mm Single

LU:LC/UPC

144:144F

LA:LC/APC

Hot Tags: ODF patch panel P2 series factory, customized, manufacturers China, suppliers China, made in China, China made



Green Telecom

Registered in 1999,Green Telecom is professional China ODF Patch Panel P2 Series suppliers annd OEM/ODM ODF Patch Panel P2 Series company, engaged in the integration and service of customized projects of deployment and detection of optical communication network. Green Telecom offers the most comprehensive selection of fiber optic splice closure products to customers in different industries.

Green Telecom owns a factory of 40,000 square meters,with employees over 130 people,to manufacture 1) Telecom Racks and Cabinets 2) Plastic Fiber Termination Boxes 3) Fiber Passive Products 4) Fiber Test Instruments 5) custom ODF Patch Panel P2 Series and etc.
