Optical Variable Attenuator

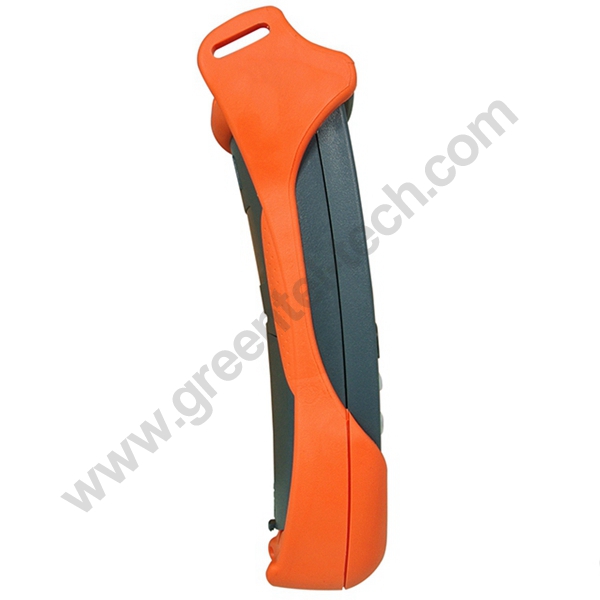

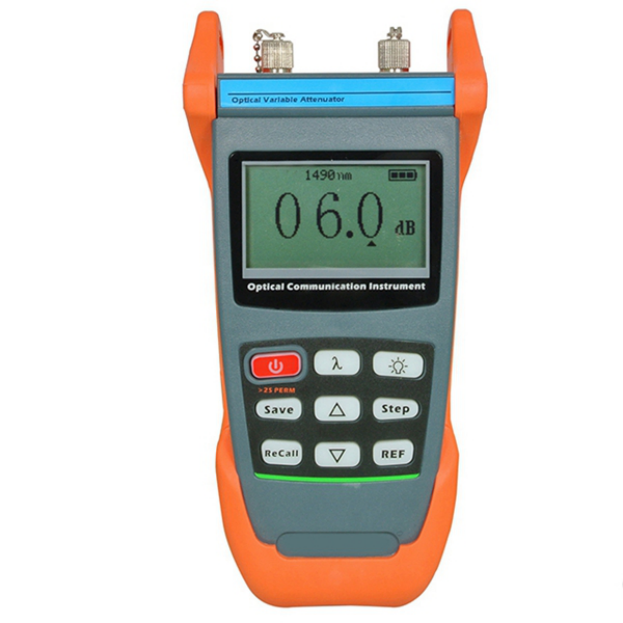

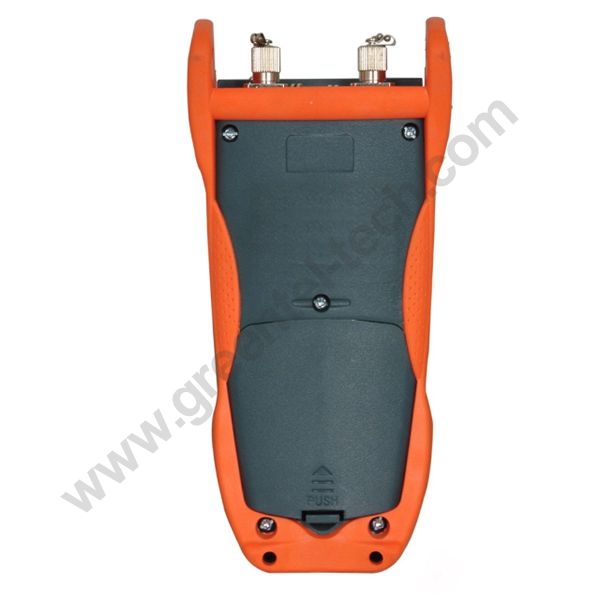

The GVA50 optical variable attenuator is designed for optimal flexibility and field usability,the GVA50 delivers the highest performance within handheld optical attenuator on the market, it is an ideal tool for telecom technicians to do the pre-test before the maintenance.
Contact Us
  • Product Information
  • Feedback
Among those famous optical variable attenuator manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized ova, fiber variable attenuator, optical digital attenuator made in China. Our factory is waiting for your contact.   Description The GVA50 optical variable attenuator is designed for optimal flexibility and field usability,the GVA50 delivers the highest performance within handheld optical attenuator on the market, it is an ideal tool for telecom technicians to do the pre-test before the maintenance. Features ● Compact and rugged portable design ● Three wavelengths: 1310nm / 1490nm / 1550nm ● Different attenuator range, 40dB, 60dB or 80dB ● Can save current value as reference ● Can save 10 tracks attenuation value ● Memorize the value after instruments shut down ● Energy save mode ● One-year warranty and three-year recommended calibration interval Specification

Optical Variable Attenuator - GVA-50 Parameter

Model

GVA50-40

GVA50-60

GVA50-80

Attenuating Range

40dB(SM)

60dB(SM)

80dB(SM)

Calibrated Wavelengths

1310nm / 1490nm / 1550nm

Fiber Mode

9/125um

Attenuating Mode

Digital

Display Resolving Power

0.1 dB

Display

LCD, 128*64

Max Input Power

+ 28 dBm

Return Loss*

>40 dB

Insertion Loss*

< 2.5 dB

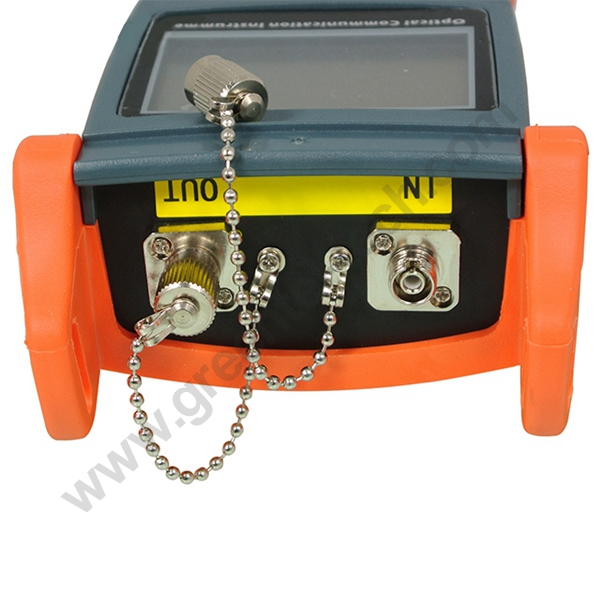

Optical Connector

FC/PC (or customize other connectors)

Uncertainty

+/- 0.5 dB

Repeatability*

+/- 0.2 dB

Auto Power Off

No operation in 10 minutes (can be canceled), Low battery energy

Battery Charge

Yes

Operate Time

Above 20 hours

Power Supply

3 * AA batteries or AC/DC adapter

Size(HxWxD)

190mm *90mm * 40mm

Weight

About 450g

Storage Temperature

-20  to  +70  ℃ ,<90% RH

Operating Temperature

-10  to  +50  ℃ ,<90% RH

* at 20±3℃, CW, with FC/PC connector,1550nm Standard Package ①GVA-50 main body*1 ②Nylon bag and the Q/C certificate*1 ③Operation Manual*1 ④Paper Box Ordering Information GVA50-XX (1)GVA50-40: Attenuation Range:40dB (2)GVA50-60: Attenuation Range:60dB (3)GVA50-80: Attenuation Range:80dB
