Optical Fusion Splicer

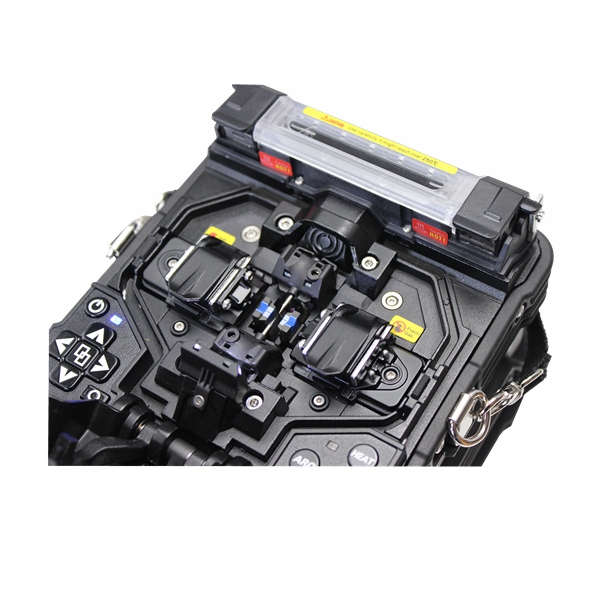

The OFS-3000 is the world's most advanced core alignment optical fusion splicer. With a solid performance, the OFS-3000 is speed and work flow optimised.6 seconds for SM fiber MODE splice time and 16 seconds heat time make it the fastest available.Low loss splice performance in a compact ultra-ruggedized design.
Contact Us
PREV:No previous article
NEXT:OTDR-HJ2100 Series
  • Product Information
  • Feedback
Among those famous optical fusion splicer manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized optical fusion splicer, fiber welding machine, fiber splicing machine made in China. Our factory is waiting for your contact.
Description The OFS-3000 is the world s most advanced core alignment optical fusion splicer. With a solid performance, the OFS-3000 is speed and work flow optimised.6 seconds for SM fiber MODE splice time and 16 seconds heat time make it the fastest available.Low loss splice performance in a compact ultra-ruggedized design.
Features
● Compact size,easy to carry
● 6-motors core alignment splicer
● 5 inches high resolution color touch screen
● FAST! 6S splicing and 16S heating
● Battery Max. 280 cycles (splicing & heating)
● Electrode life 3000 times per pair
● Fully ruggedized for shock, dust and moisture
● Up to 2,000 groups of splicing results storage
Specification

Optical Fusion Splicer OFS-3000 Parameter

Applicable Fibers

SM, MM, DS, NZDS

Average Splice Loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Fiber Aligning Method

Core Alignment,6 MOTROS

Splicing Time

Typical 6s with standard SM fiber

Heating Time

Typical 30S (10-900S adjustable)

Electrode Life

3000ARCS(battery life can be extended more than 20% by using an electrode grinder)

Adaptive discharge

automatic ARC calibration by air pressure and temperature

Battery Capacity

 5200mAh Max. 280 cycles (splicing and heating)

Monitor

5.0 inches color touch screen

Storage of Splice Result

2000 results

Tension Test

1.5N-2.0N

Splicing Mode

multiple splicing mode

Protection Sleeve Length

20mm, 40mm, 60mm

Environment Condition

-10~+50 (operation temperature), 0~95% RH(humidity), 0~5000m(altitude)

Power Supply

AC/DC adapter: input AC 100~240V, output DC 12-15V

Terminal

Mini USB 2.0

Dimension

135 x 160 x 150mm

Weight

2 . 2 k g
Standard Package
1.Fiber Cleaver*1
2.Fiber Stripper*1
3.Drop cable stripper*1
4.AC/DC Adapter*1
5.Battery*1
6.AC Power Cord*1
7.Spare Electrodes*1
8.Cooling Tray*1
9.bottle*1
9.Operation Manual*1
