Optical rosettes Fiber Rosette FRB-1A
  • Optical rosettes Fiber Rosette FRB-1A
  • Optical rosettes Fiber Rosette FRB-1A
  • Optical rosettes Fiber Rosette FRB-1A

Optical rosettes Fiber Rosette FRB-1A

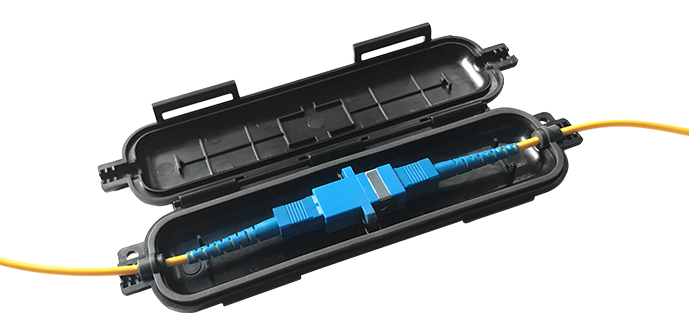

FRB-1A fiber rosette box is able to hold up to 1 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber termination, storage and cable connection in one solid protection box.
Contact Us
PREV:Optical rosettes Fiber Rosette FRB-4C
NEXT:DCB Series Demarcation Cable Box
  • Product Information
  • Feedback
Among those famous fiber rosette FRB-1A manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber rosette FRB-1A made in China. Our factory is waiting for your contact.
Description
FRB-1A fiber rosette box is able to hold up to 1 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber termination, storage and cable connection in one solid protection box.
Features
  • Dust-proof design with IP-65 Protection level.
  • Integrated with cable termination and management rods.
  • Manage fibers in a reasonable fiber radius condition.
  • High quality industrial anti-aging ABS plastic material.
  • Suitable for the wall mounted installation.
  • Buckled lock structure,easy for installation and removal.
  • 1 port cable entrance for drop cable or patch cable.
Specification
Application 3.0x2.0mm Drop Cable or patch cord
Fiber Cladding Diameter 125um(G652&G657)
Fiber Diameter 250um&900um
Fiber Type Single Mode(SM) & Multi Mode(MM)
Tensile Strength >50N
Connecting Adaptor SC & LC
Insertion Loss <0.2dB
Return Loss >50dB(UPC), >60dB(APC)
Bending Radius(mm) > 15
Operation Temperature -40~85 (°C)
Storage Temperature -40~85 (°C)
Configuration
Rosetas ópticas /Fiber Rosette FRB-1A Parameter
Material Size Max Capacity Mounting Method Weight Color

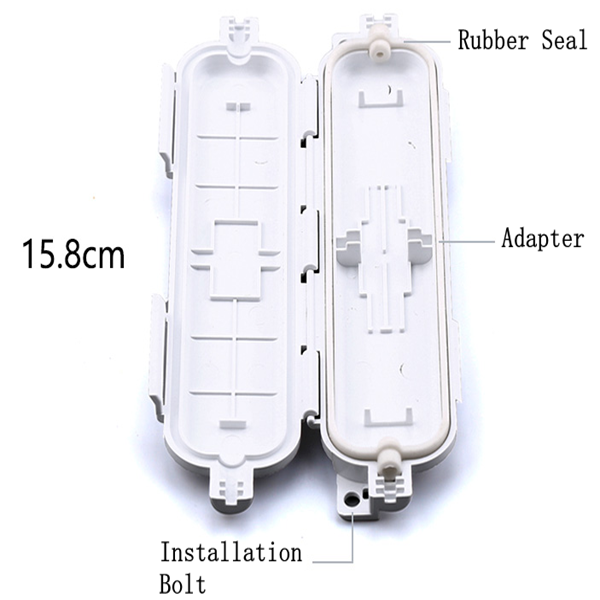

Industrial ABS(UV resistence) AxBxC(mm) SC LC Wall Mounting 40g White/black
158x45x16 1Port 2 Ports
Standard Accessories
Installation nuts and bolts,protection sleeves.
