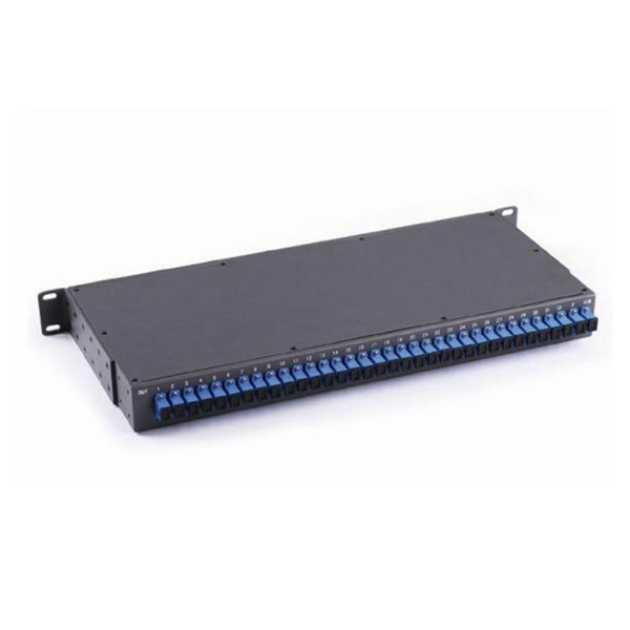

Rack Mounted PLC Splitter

Green Telecom provides a high precise rack mounted type PLC splitter for the construction of optical network .Low requirements of placing position and environment, standard 19 inch rack mounted design,the dimension if 1U or 2U rack mounted splitter can be customized based on the specific requirements.It is normally placed in ODF or 19 inch standard rack. It can be easily applied in FTTh construction, optical network construction,CATV networks and etc.
Contact Us
  • Product Information
  • Feedback
Among those famous rack mounted plc splitter manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized 19 inch rack plc splitter, metal box plc splitter, 1u plc splitter, lgx plc splitter, rack type plc splitter made in China. Our factory is waiting for your contact.
Description
Green Telecom provides a high precise rack mounted type PLC splitter for the construction of optical network .Low requirements of placing position and environment, standard 19 inch rack mounted design,the dimension if 1U or 2U rack mounted splitter can be customized based on the specific requirements.It is normally placed in ODF or 19 inch standard rack.
It can be easily applied in FTTh construction, optical network construction,CATV networks and etc.
Features
●  Compact design
●  Low insertion loss and low PDL
●  High reliability
●  High channel counts
●  Wide wavelength range
●  Large operating and temperature range
●  Customized packaging and configuration
●  Full Telcordia GR1209/1221 qualifications
Specification
1×N (N>2) PLCS (With connector) Optical parameters
Parameters
1×4
1x8
1×16
1×32
1×64
Operation wavelength
1260~1650nm
Insertion loss (dB) Max
7.5
10.7
14.0
17.2
21.2
Uniformity (dB)   Max
0.7
0.8
1.0
1.3
1.9
Return loss
      (dB) Minimum
APC
55
55
55
55
55
UPC
50
50
50
50
50
PDL (dB)          Max
0.2
0.3
0.3
0.3
0.3
Directivity (dB)     Min
55
55
55
55
55
Pigtail length (m)
1.2(±0.1) or customer specified
Fiber type
G.657A
Operation temperature
-40~85(°C)
Storage temperature
-40~85(°C)
Dimension (L×W×H) (mm)
480x200x1U
483x200x2U
2×N (N>2) PLCS (With connector) Optical parameters
Parameters
2×4
2×8
2×16
2×32
2×64
Operation wavelength
1260~1650(nm)
Insertion loss (dB) Max
7.7
11.2
14.2
17.4
21.5
Uniformity (dB)   Max
0.7
0.8
1.0
1.5
2.0
Return loss
      (dB) Min
APC
55
55
55
55
55
UPC
50
50
50
50
50
PDL (dB)         Max
0.2
0.3
0.4
0.4
0.4
Directivity (dB)   Min
55
55
55
55
55
Pigtail length (m)
1.2(±0.1) or customer specified
Fiber type
G.657A
Operation temperature
-40~85 (°C)
Storage temperature
-40~85 (°C)
Dimension (L×W×H) (mm)
483×200×1U
483×200×2U

Customization Event
①Channel count
②Fiber core type
③Input fiber length
④Input connector type
⑤Output fiber length
⑥Output connector type
⑦Input cable type
⑧Output cable type
