Fiber Ribbon Cable

Among those famous fiber ribbon cable manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized ribbon fiber fanout cable, optical ribbon cable, fiber ribbon distribution cable made in China. Our factory is waiting for your contact.

Description

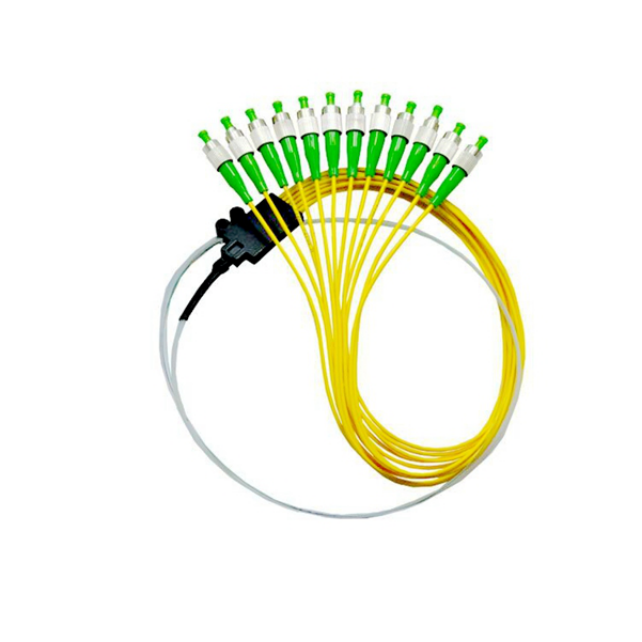

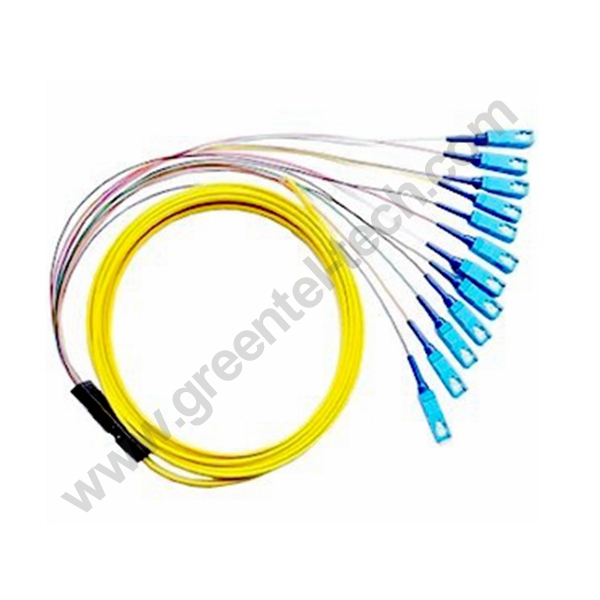

Ribbon fanout pigtails are designed to glue several single cores pigtails into one ribbon jacket to achieve the high density cabling and more suitable for ODN projects.Varies of connectors such as FC, SC, ST, LC are available. Strict manufacturing process ensure reliable quality of the pre-connectorized optical cable. All connectors are with good environmental and mechanical performance.
Green Telecom ribbon fanout pigtail offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction, ODN construction, LAN, Metro network and CATV.

Features
● Compact design
● Low insertion loss and low PDL
● High reliability
● High channel counts
● Wide wavelength range
● Large operating and temperature range
● Customized packaging and configuration
● Full Telcordia GR1209/1221 qualifications

Specification

FTTh Cable Parameter

Connector Type

SC FC ST LC MU E2000 DIN MPO

Polish Type

UPC or APC

Fiber Type

SM or MM(50/125um or 65.5/125um)

Fiber Count Type

4,6,8,12

Cable Jacket

LSZH or PVC 2.0mm Diameter

Outer Cable Jacket

Yellow for SM fiber,Orange for MM fiber

Strengthen Member

Kevlar

Fiber Insertion Loss(dB)

< 0. 2

Connector Insertion Loss(dB)

< 0. 3

Connector Return Loss(dB)

UPC(> 55dB),APC(>60dB)

Repeatability(500 times)(dB)

<0. 2

Bending Radius(mm)

> 30

Tensile Strength(kg/100mm)

>15

Working Temperature

-20 (℃) to +60(℃)

Storage Temperature

-40 (℃) to +80(℃)

Relative Humidity

<90%RH

Customization Event
①Fiber Core Type
②Fiber Count
③Cable Length
④Cable Jacket Color
⑤Connector  Type
⑥Polish Type

Ordering Information
    ORFC--XX -XX- XX-- XX- XX-- XX-- XX
                 1   -  2   -  3  -  4  - 5  -  6 -   7

1 Fiber Type

2 3 Connector

4 Cable Count

5 Fanout Length

6 Cable Color

7 Cable Length

S0:G652D

Nil:No Adaptor

04: 4F

0:0m

YL:Yellow

0:0m

S1:G657A

SU:SU/UPC

06: 6F

........

BU:Blue

........

S2:G657A2

SA:SA/UPC

08: 8F

999:999m

OG:Orange

999:999m

S3:G657B2

FU:FC/UPC

12: 12F

BN:Brown

S4:G657B3

FA:FC/APC

GY:Gray

S5:G655C

LU:LC/UPC

WT:White

M1:50/125um

LA:LC/APC

RD:Red

M2:62.5/125um

EU:E2000/ UPC

BK:Black

M3: OM3

EA:E2000/ APC

VL:Violet

M4: OM4

MU:MU/UPC

PK:Pink

DU: DIN/UPC

TUR:Turquoise

DA:DIN/ APC

ST:ST/ UPC
