Fiber Patchcord

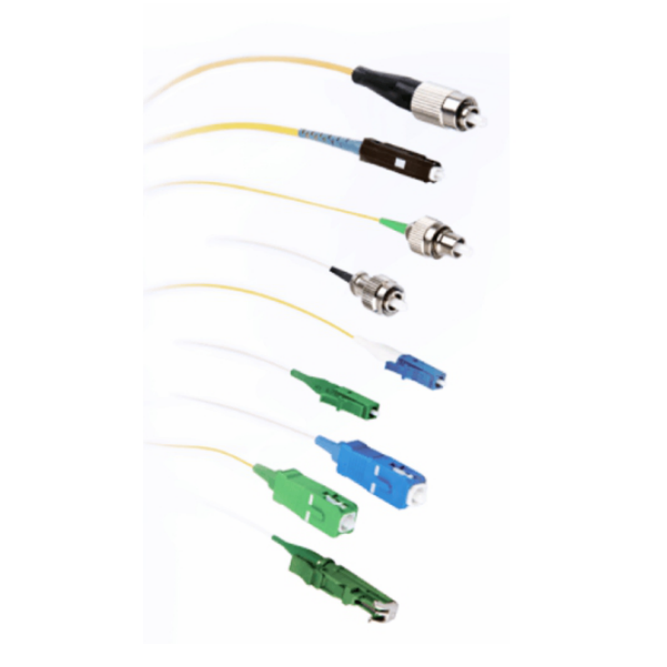

Pigtail and patch-cord are connected single fiber cable or duplex fiber cable. Varies connectors such as FC, SC, ST, LC, MU, E2000, DIN are available. Strict manufacturing process ensure reliable quality of the pre-connectorized optical cable. All connectors are with good environmental and mechanical performance. Green Telecom pigtail and patchcord offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction,ODN
Contact Us
  • Product Information
  • Feedback
Among those famous fiber patchcord manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber patch lead, fiber pigtail, fiber patch cable made in China. Our factory is waiting for your contact.

Description
Pigtail and patch-cord are connected single fiber cable or duplex fiber cable. Varies connectors such as FC, SC, ST, LC, MU, E2000, DIN are available. Strict manufacturing process ensure reliable quality of the pre-connectorized optical cable. All connectors are with good environmental and mechanical performance.
Green Telecom pigtail and patchcord offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction,ODN construction, LAN, Metro network and CATV.
Features
● Compact design
● Low insertion loss and low PDL
● High reliability
● High channel counts
● Wide wavelength range
● Large operating and temperature range
● Customized packaging and configuration
● Full Telcordia GR1209/1221 qualifications
Specification
FTTh Cable Parameter
Connector Type
SC FC ST LC MU E2000 DIN MPO
Polish Type
UPC or APC
Fiber Type
SM or MM(50/125um or 65.5/125um)
Cable Type
Simplex or Duplex
Cable Jacket
LSZH or PVC
Cable Diameter
0.9mm,1.4mm,1.6mm,2.0mm,3.0mm
Strengthen Member
Kevlar
Fiber Insertion Loss(dB)
< 0. 2
Connector Insertion Loss(dB)
< 0. 3
Connector Return Loss(dB)
UPC(> 55dB),APC(>60dB)
Repeatability(500 times)(dB)
<0. 2
Bending Radius(mm)
> 30
Tensile Strength(kg/100mm)
>12
Working Temperature
-20 (℃) to +60(℃)
Storage Temperature
-40 (℃) to +80(℃)
Relative Humidity
<90%RH

Customization Event
①Fiber Core Type
②Cable Diameter Type
③Cable Length
④Simplex or Duplex
⑤Connector A Type
⑥Connector B Type
⑦Polish Type
Ordering Information
       OFP--XX -XX- XX-- XX- XX-- XX-- XX
                    1 -  2 -  3 -  4 -  5 -  6 -  7
1 Fiber Type
2 3 Connector
4 Cable Type
5 Cable Diameter
6 Cable Color
7 Cable Length
S0:G652D
Nil:No Adaptor
SP: Simplex
09:0.9mm
YL:Yellow
0:0m
S1:G657A
SU:SU/UPC
DP:Duplex
14:1.4mm
BU:Blue
........
S2:G657A2
SA:SA/UPC
16:1.6mm
OG:Orange
999:999m
S3:G657B2
FU:FC/UPC
20:2.0mm
BN:Brown
S4:G657B3
FA:FC/APC
30:3.0mm
GY:Gray
S5:G655C
LU:LC/UPC
WT:White
M1:50/125um
LA:LC/APC
RD:Red
M2:62.5/125um
EU:E2000/ UPC
BK:Black
M3: OM3
EA:E2000/ APC
VL:Violet
M4: OM4
MU:MU/UPC
PK:Pink
DU: DIN/UPC
TUR:Turquoise
DA:DIN/ APC
ST:ST/ UPC
MFA:MPO/FEMALE/APC
MFU: MPO/FEMALE/UPC
MMA: MPO/MALE/ APC
MMU: MPO/MALE/ UPC
