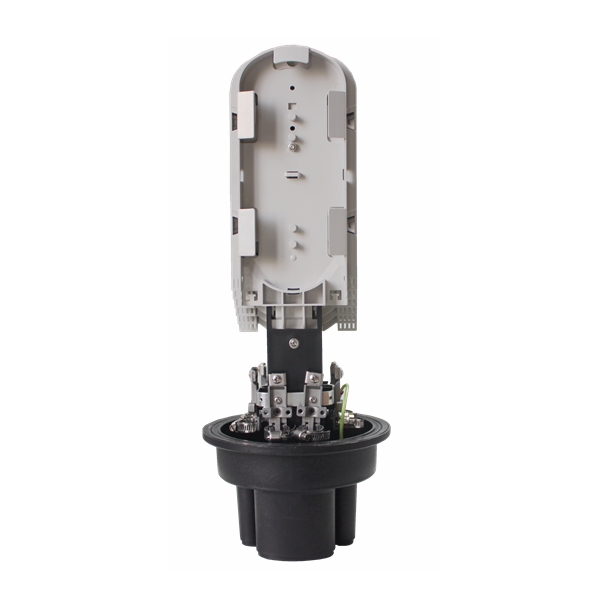

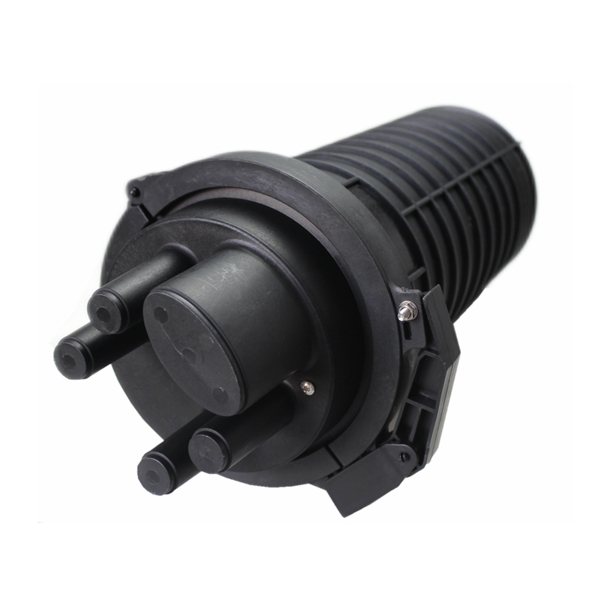

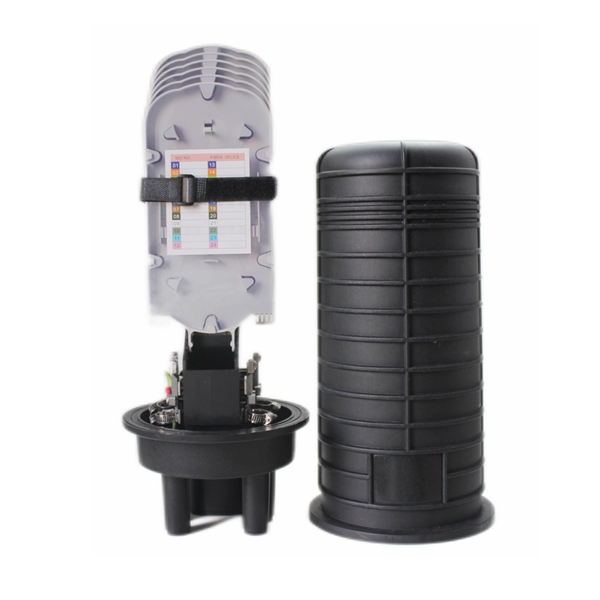

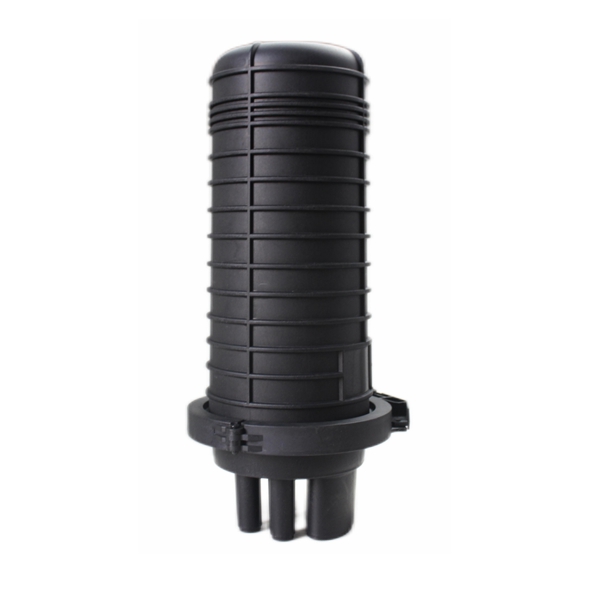

DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H
  • DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H
  • DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H
  • DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H
  • DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H
  • DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H
  • DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H
  • DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H

DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H

DOME type fiber optic splice closure is also called as vertical closure, it is suitable for FTTH accessing. The input and output are on the same side. An oval hole and four round holes facilitates the operation.It is suitable for aerial hanging,underground, pole and wall installation.
Contact Us
  • Product Information
  • Feedback
Among those famous dome fosc GJS-CQL-0204H manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized
dome fosc GJS-CQL-0204H made in China. Our factory is waiting for your contact.

Features

● Heat shrinkable sealing structure.
● High quality industrial plastic body material.

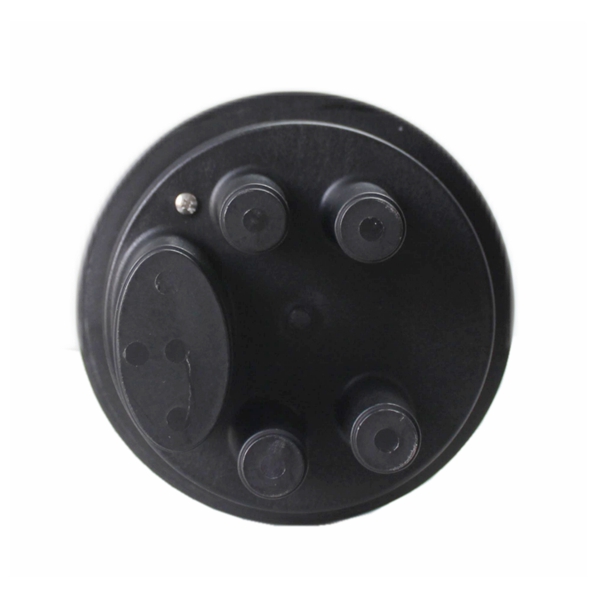

● One oval hole and four round holes for cable entrance.
● Oval port: 10-25mm cable, round port: 8-18.5mm cable.
● Protection level reaches IP68.
● Support underground,pipeline,man holes,hand holes.
360 degrees access, fiber bending > 40mm.
Maximum capacity: 144F single fibers

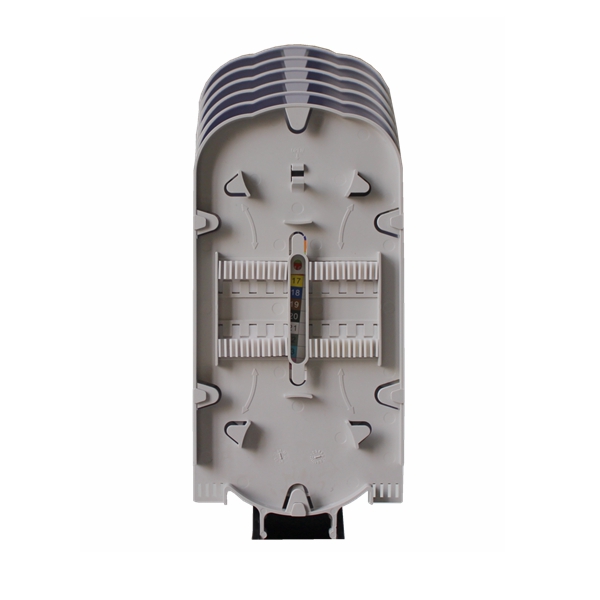

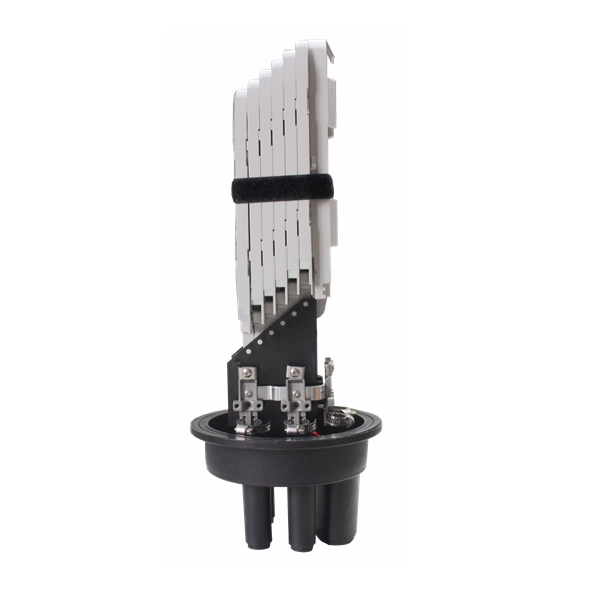

Number of trays: 6 pcs x 24F

Specification

Model
GJS-CQL-0204H
Type
DOME Type(Vertical Type)
Dimension
450mm x Φ176mm
Number of Splice Trays
1~6 Pieces (24F/tray)
Number of Inlet/Outlet Ports
5 Pieces(1 x Oval + 4 x Round)
Diameter of Fiber Cable
Oval port: 10-25mm cable, round port: 8-18.5mm cable.
Max Capacity(Cores)
144F Single Fibers
Operation Temperature
-40~65(°C)
Storage Temperature
-40~65(°C)
Hot Tags: Empalmes verticales de fibra óptica ,DOME Fiber optic Splice Closure GJS-CQL-0204H factory, customized, manufacturers China, suppliers China, made in China, China made



Green Telecom

Registered in 1999,Green Telecom is professional China DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H suppliers annd OEM/ODM DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H company, engaged in the integration and service of customized projects of deployment and detection of optical communication network. Green Telecom offers the most comprehensive selection of fiber optic splice closure products to customers in different industries.

Green Telecom owns a factory of 40,000 square meters,with employees over 130 people,to manufacture 1) Telecom Racks and Cabinets 2) Plastic Fiber Termination Boxes 3) Fiber Passive Products 4) Fiber Test Instruments 5) custom DOME Fiber Optic Splice Closure 144 cores GJS-CQL-0204H and etc.
