FTTX Installation Tool Bag

Among those famous fttx installation tool bag manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fttx installation tool bag made in China. Our factory is waiting for your contact.

Description
The FTTH construction is booming everywhere and quite a lot of places are down to the premise stage, this requires the engineers to have a all-in-one Tool Kits for the in-house installation which include the last mile installation, activation and fiber inspection.

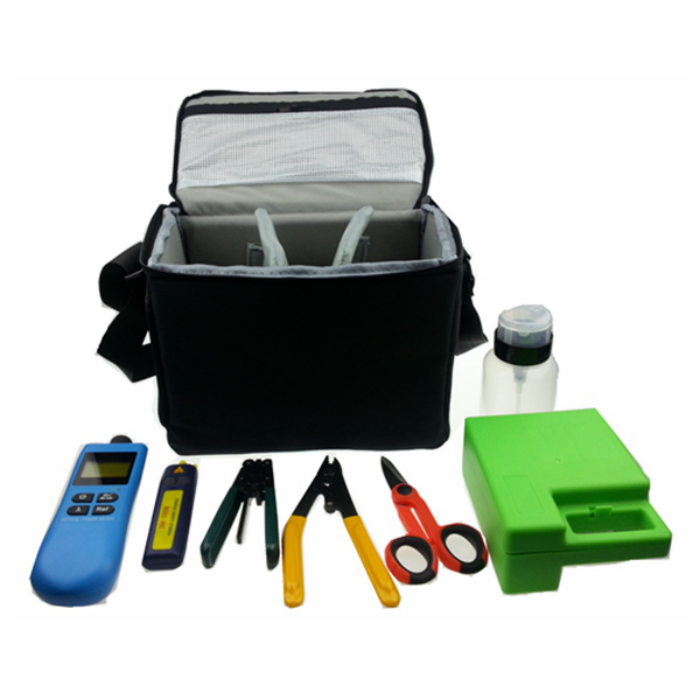

GreenTel launches the GTK-300 series FTTx installation tool bag which including a OPM, VFL,fiber cleaver, fiber coating stripper, drop cable stripper, alcohol bottle and kevlar scissor.

Specification

VFL(Visual Fault Locator)

Model

OV-15-01

Wavelength

650nm +/- 20nm

Output Power *

> 1mW

Dynamic Distance **

>5 km

Operation Mode

Pulsed (2Hz) and CW

Connector ***

2.5mm Universal connector

OPM (Optical Power Meter)

Model

OM-15A Or OM-15B

Wavelength(nm)

850/1300/1310/1490/1550/1625

Mesurement Range(dBm)

-70 to +10 Or -50 to +26

Connerctor

2.5mm Universal connector + default SC/UPC adaptor

Fiber Cleaver

Model

CLV-100C

Coating Diameter

250 to 900um, 2mm, 3mm, 3.5mm (Drop cable cleaving is supported)

Cleaving Angle

0.5 degrees typical (single mode fiber)

Blade Life

54000 fibers (1500 fibers * 12 positions * 3 heights)

*After 5 minutes warm-up, 20+/- 3 degrees, CW, FC connector
**The distance is tested by G.655, single mode, lab level fiber
***Standard connector is 2.5mm UPP, 1.25mm UPP will be customized and increase the cost

Standard Package

Description

Part Number

Qty

Remarks:

Optical Power Meter

OM-15A

1pcs

OM-15B is optional

Visual Fault Locator

OV-15-01

1pcs

OV-15-10 is optional

Drop Cable Stripper

CP-FB01

1pcs

Fiber Coating Stripper

CFS-2

1pcs

Kevlar Scissor

LW-9011Z

1pcs

Fiber Cleaver

CLV-100C

1pcs

Alcohol Bottle

GT-ADB-100

1pcs
