Drop Cable Retainer - DCR-2A, DCR-4A
  • Drop Cable Retainer - DCR-2A, DCR-4A
  • Drop Cable Retainer - DCR-2A, DCR-4A
  • Drop Cable Retainer - DCR-2A, DCR-4A
  • Drop Cable Retainer - DCR-2A, DCR-4A
  • Drop Cable Retainer - DCR-2A, DCR-4A
  • Drop Cable Retainer - DCR-2A, DCR-4A
  • Drop Cable Retainer - DCR-2A, DCR-4A

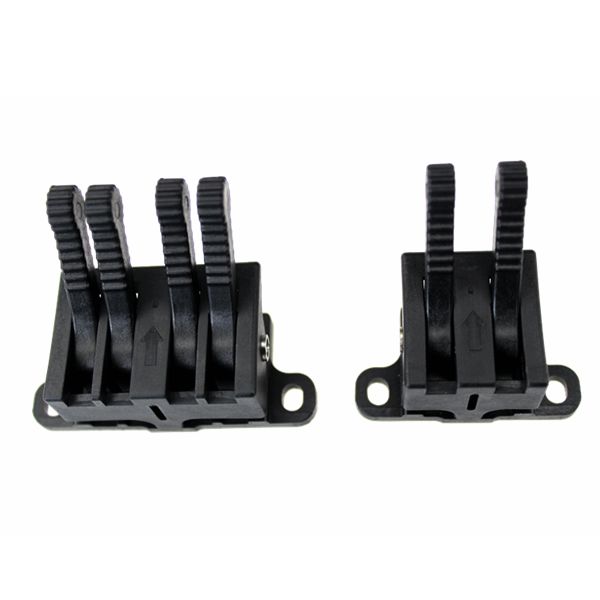

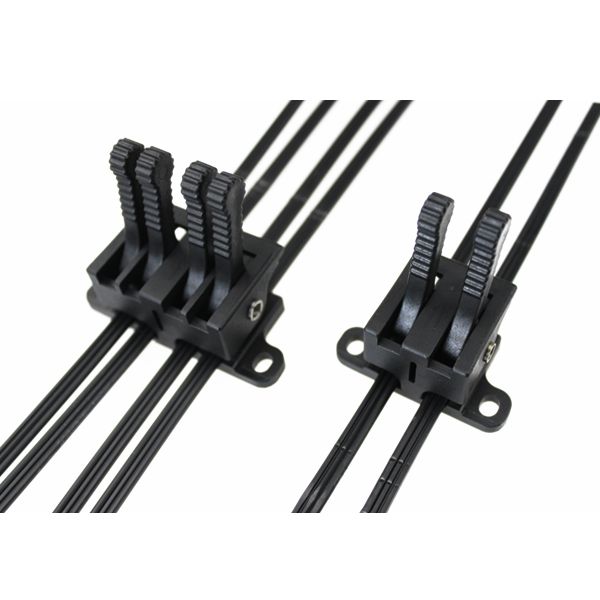

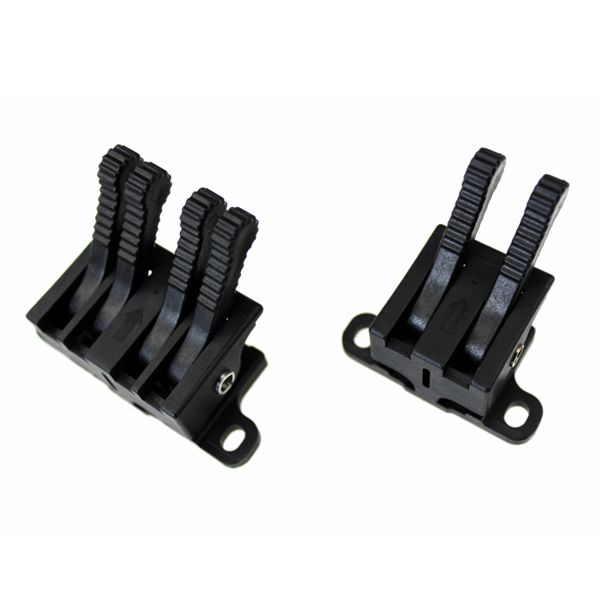

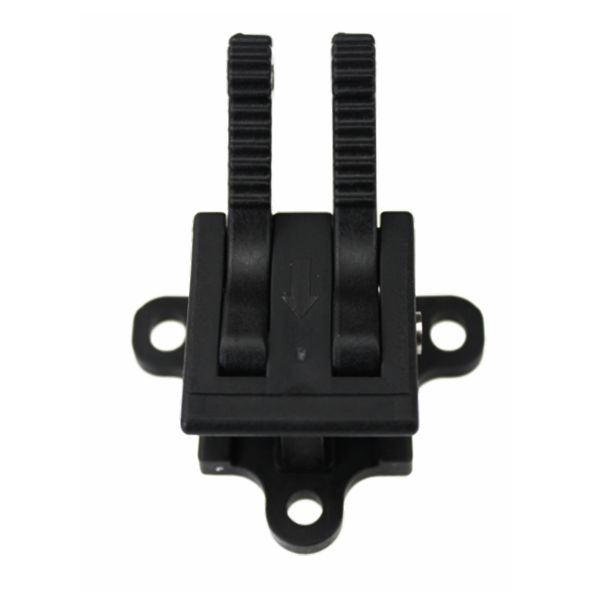

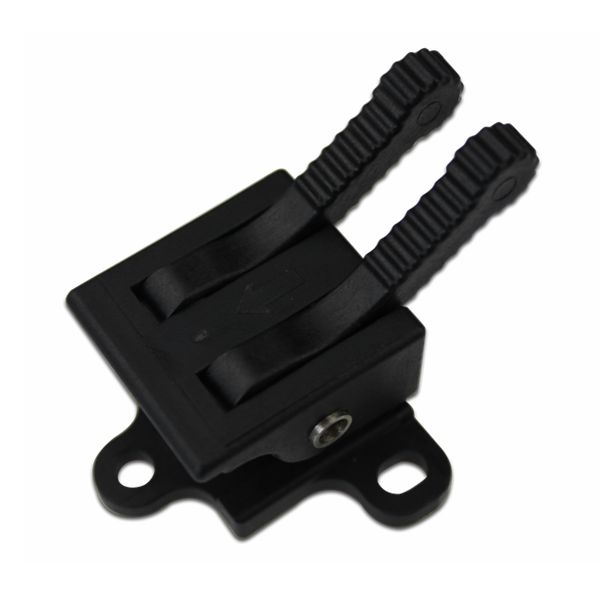

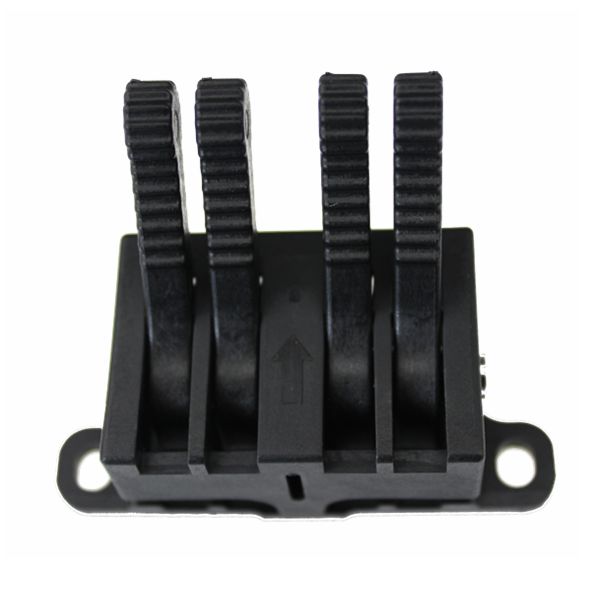

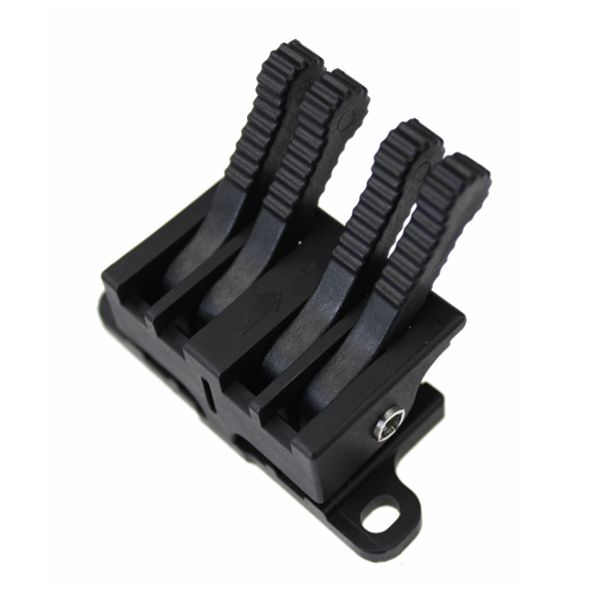

Drop Cable Retainer - DCR-2A, DCR-4A

DCR series drop cable retainer is designed to carry out safe installations in walls and poles for overhead drop cables, retaining the cable without any bending during and after installation.
Contact Us
  • Product Information
  • Feedback
Among those famous drop cable retainer DCR-2A and DCR-4A manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized drop cable retainer DCR-2A and DCR-4A made in China. Our factory is waiting for your contact.
  Description     DCR series drop cable retainer is designed to carry out safe installations in walls and poles for overhead drop cables, retaining the cable without any bending during and after installation. This retainer has mainly used for connection of 2x3mm flat drop cable, 2x5mm flat drop cable and 5mm round drop cable, and there are versions for other diameters. It is manufactured using UV thermoplastic polyamide material for use outdoors. It is secured to poles or walls using screws or hooks and can be easily installed in a bunch.     Features
  • Keeps drop cable straight and not bended to prevent damage.

  • Maximum tensile force > 50N.

  • Small size,tools-free uses, multiple installation and removal.

  • Adapt to any drop cable diameter.

  • Can be installed on poles,walls and all types of surface.

  • High density, 2 models for 2 drop cables or 4 drop cables.

  • Industrial standard material, life cycle of the product > 20 years.
  Specificaton
Item Parameters
Material UV resistant polyamide with fiber
Tensile strength 500N for 24 hours/1000N for 5 min
UV resistant According to ASTM 626 norm
Impact performance 1kg mass from 1m height
Life cycle >20 years
Fixation method Wall or pole mounted
Color Black
Operation Temperature -40~60 (°C)
Storage Temperature -40~85 (°C)
    Configuration
Drop Cable Retainer DCR-2A,DCR-4F Parameter
Material Size Max Drop Cable Capacity Installation Size Weight Color
Polyamide with fiber AxBxC(mm) Model Drop Cable DxE(mm) 30g Black
44x46x39 DCR-2A 2pcs 23x35
Polyamide with fiber AxBxC(mm) Model Drop Cable DxE(mm) 35g Black
58x46x39 DCR-4F 4pcs 23x49
    Standard Accessories     Installation expansion bolts x 3, fisher for bolts x 3.
