Fiber Distribution Terminal T6 Series

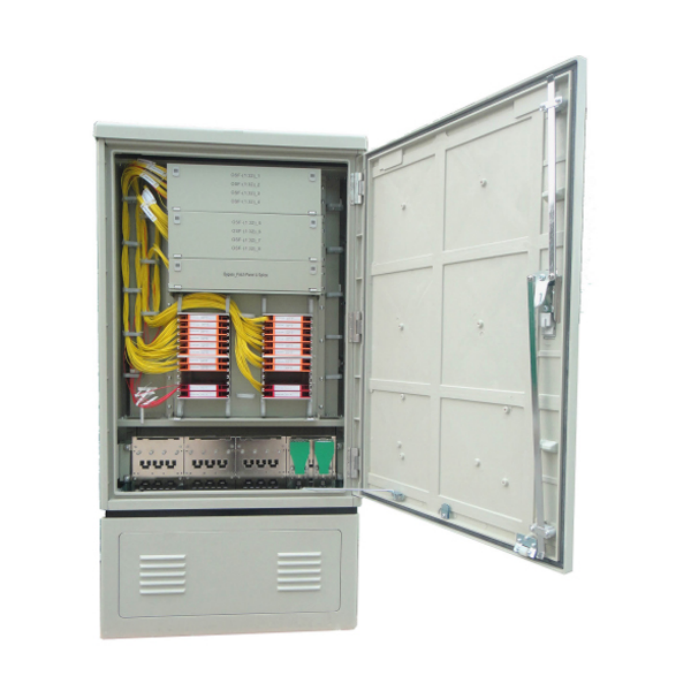

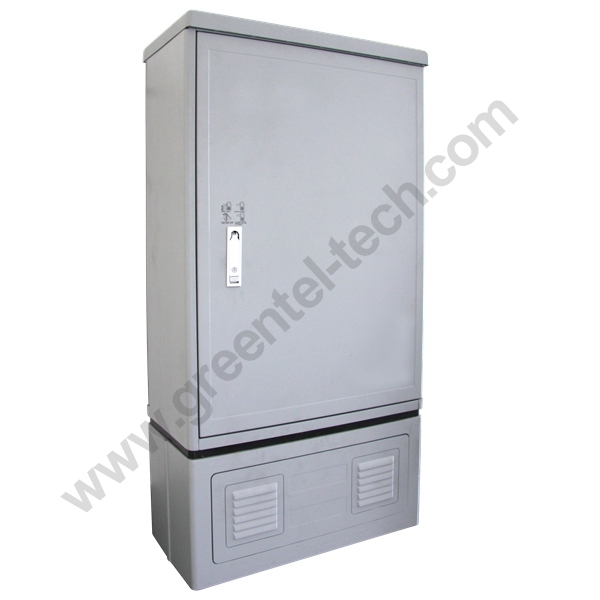

Among those famous fiber distribution terminal t6 series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber distribution terminal t6 series made in China. Our factory is waiting for your contact.   Description Fiber Distribution Terminal Cabinets enables telecom operator & service providers to maintain and manage the distribution of the connection in a disciplined manner for small and large scale FTTh network. These cabinets are specially designed and fabricated for outdoor operations provided to bear extreme weather conditions and provide well organized and centralized distribution of the connections. T6 Series Fiber Distribution Terminal Cabinets are mainly used for connection , distribution and splitting of communication optical cables from offices to optical distribution nodes,providing a safe,reliable and flexible fiber management system for communication networks. Features ● Nonmetal SMC body to effectively prevent condensation ● SMC body can be pulled out from inside structure without interfere in the existing cabling, easy for maintenance in future ● Distribution large quantity of cables through PLC Splitters ● Waterproof lock,two point locking,customized external padlock ● Dust and splash-proof level reaches IP66 ● Full front access or double side access(for 576 cores or above) ● Separate function zone for OSF,Bypass and Splice Shelf ● Available in FC/SC/ST/duplex LC adaptor ● Rotary OSF(splitter patch panel) to distribute high density fibers ● Optical cable fixing & stripping device to lead-in cables ● With pedestal,facilitating implementation Specification

Fiber Distribution Terminal T6 Parameter
Adaptor Type	SC,FC,ST,Duplex SC,Duplex LC
Capacity	384,768 fibers
Body Material	SMC or stainless steel
Surface Treatment	Powder coating white or grey color
Installation Method	Floor-standing
Bending Radius(mm)	>30

Customization Event ①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Print  Ordering Information

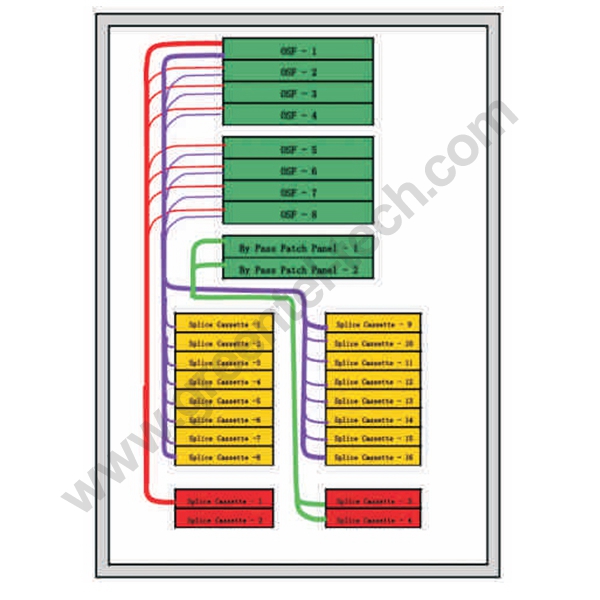

Model	Dimension HxWxD(mm)	OSF(Optical Splitter Shelf)	Straight Pass Through	Splice Shelf (Feeder+Distribution)	Door & Access
HD-FDT-384	1550x750x340	2:32Fx12pcs	48F(24Fx2 Trays)	12Fx36pcs	1xfront
HD-FDT-768	1554x1460x364	2:32Fx24pcs	96F(24Fx4 Trays)	12Fx72pcs	2xfront
Please contact sales department for availability and customization requirement
