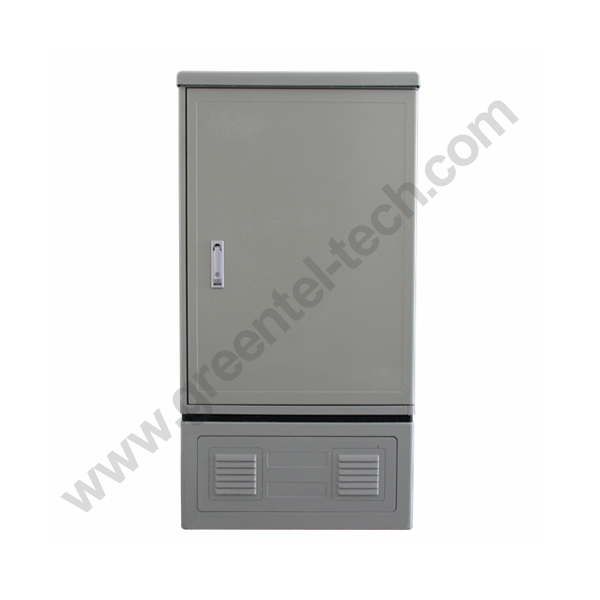

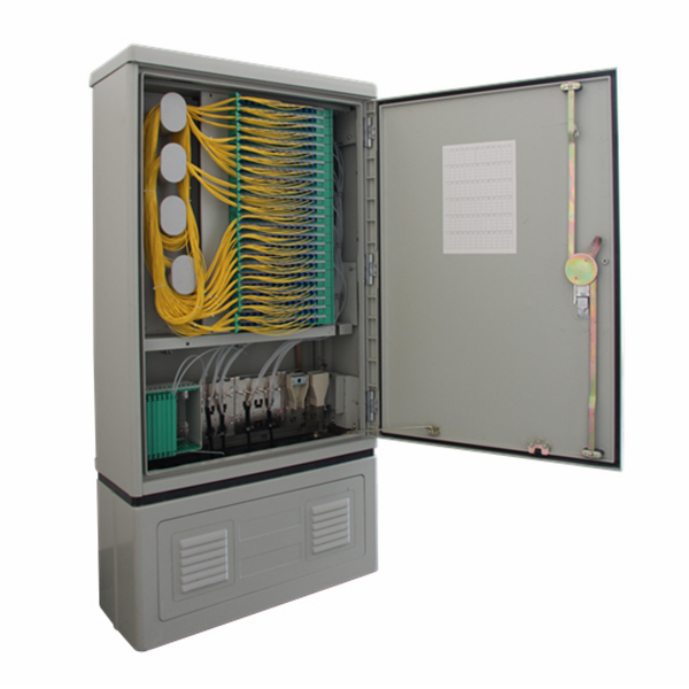

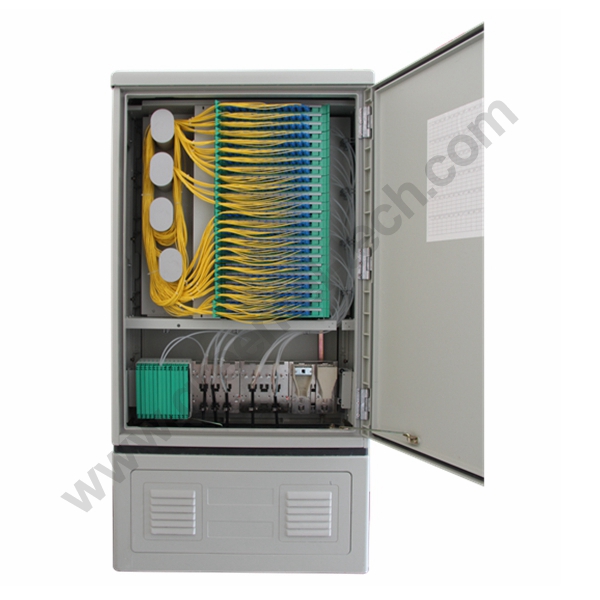

Fiber Distribution Terminal T1 Series

Fiber Distribution Terminal Cabinets enables telecom operator & service providers to maintain and manage the distribution of the connection in a disciplined manner for small and large scale FTTh network. These cabinets are specially designed and fabricated for outdoor operations provided to bear extreme weather conditions and provide well organized and centralized distribution of the connections. T1 Series Fiber Distribution Terminal Cabinets are mainly used for connection ,
Contact Us
  • Product Information
  • Feedback
Among those famous fiber distribution terminal t1 series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber distribution terminal t1 series made in China. Our factory is waiting for your contact.   Description Fiber Distribution Terminal Cabinets enables telecom operator & service providers to maintain and manage the distribution of the connection in a disciplined manner for small and large scale FTTh network. These cabinets are specially designed and fabricated for outdoor operations provided to bear extreme weather conditions and provide well organized and centralized distribution of the connections. T1 Series Fiber Distribution Terminal Cabinets are mainly used for connection , distribution and dispatching of communication optical cables from offices to optical distribution nodes,providing a safe,reliable and flexible fiber management system for communication networks.   Features ● Nonmetal SMC body to effectively prevent condensation ● SMC body can be pulled out from inside structure without interfere in the existing cabling, easy for maintenance in future ● Cross connection between feeder cable and distribution cable ● Waterproof lock,two point locking,customized external padlock ● Dust and splash-proof level reaches IP66 ● Full front access or double side access(for 576 cores or above) ● Available in 12F splicing & termination tray ● Available in FC/SC/ST/duplex LC adaptor ● Independent routing of patch cords and fibers ● Optical cable fixing & stripping device to lead-in cables ● With pedestal,facilitating implementation Specification

Fiber Distribution Terminal T1 Parameter

Adaptor Type

SC,FC,ST,Duplex SC,Duplex LC

Capacity

96,144,288,384,576,1152 fibers

Body Material

SMC or stainless steel

Surface Treatment

Powder coating white or grey color

Installation Method

Floor-standing

Bending Radius(mm)

> 30

Customization Event ①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Print Ordering Information

Model

Dimension HxWxD(mm)

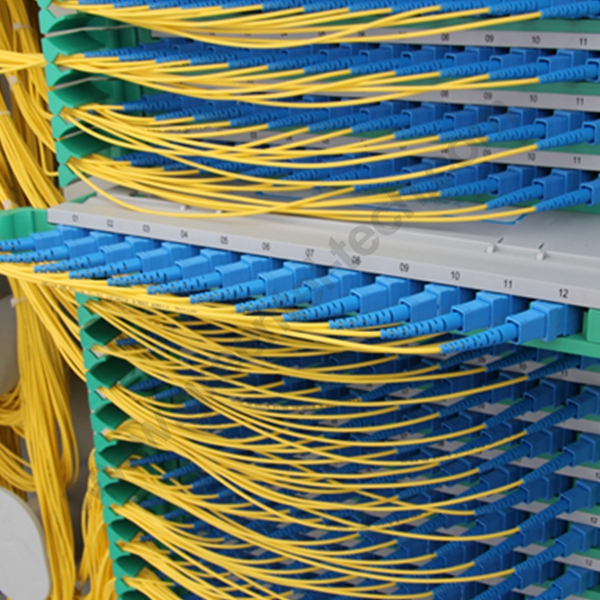

Termination /Splicing Unit

Straight Pass Through

PLC Splitter (Tray Type)

Door & Access

FDT-T1-96

780x450x275

96F(12Fx8 Trays)

48F(12Fx4 Trays)

1:16x2 trays

1xfront

FDT-T1-144

1000x550x305

144F(12Fx12 Trays)

72F(12Fx6 Trays)

1:16x3 trays

1xfront

FDT-T1-288

1460x750x340

288F(12Fx24 Trays)

144F(12Fx12 Trays)

1:16x6 trays

1xfront

FDT-T1-384

1550x750x340

384F(12Fx32 Trays)

144F(12Fx12 Trays)

1:16x6 trays

1xfront

FDT-T1-576A

1460x750x540

576F(12Fx48 Trays)

288F(12Fx24 Trays)

1:16x12 trays

1xfront+1xrear

FDT-T1-576B

1554x1460x364

576F(12Fx48 Trays)

288F(12Fx24 Trays)

1:16x12 trays

2xfront

FDT-T1-1152

1554x1460x620

1152F(12Fx96 Trays)

288F(12Fx48 Trays)

1:16x24 trays

2xfront+2xrear

Please contact sales department for availability and customization requirement
