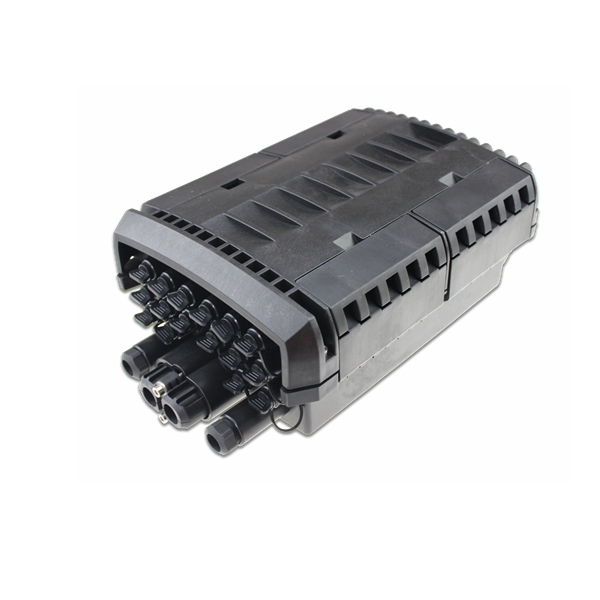

Fiber Access Terminal Closure FATC-006
  • Fiber Access Terminal Closure FATC-006
  • Fiber Access Terminal Closure FATC-006

Fiber Access Terminal Closure FATC-006

FATC-006 fiber access terminal closure is able to hold up to 16 subscribers and 144 splicing points as closure. It is used as a termination
point for the feeder cable to connect withdrop cable in FTTX network system. It integrates fiber splicing,storage and cable management
in one solid protection box.
Contact Us
PREV:Fiber Access Terminal Closure FATC-008
NEXT:Fiber Access Terminal Closure FATC-004
  • Product Information
  • Feedback
Among those famous fiber access terminal closure FATC-006 manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FATC-006 made in China. Our factory is waiting for your contact.


Description


FATC-006 fiber access terminal closure is able to hold up to 16 subscribers and 144 splicing points as closure. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing,storage and cable management in one solid protection box.


Features

● Water-proof design with IP-68 Protection level.

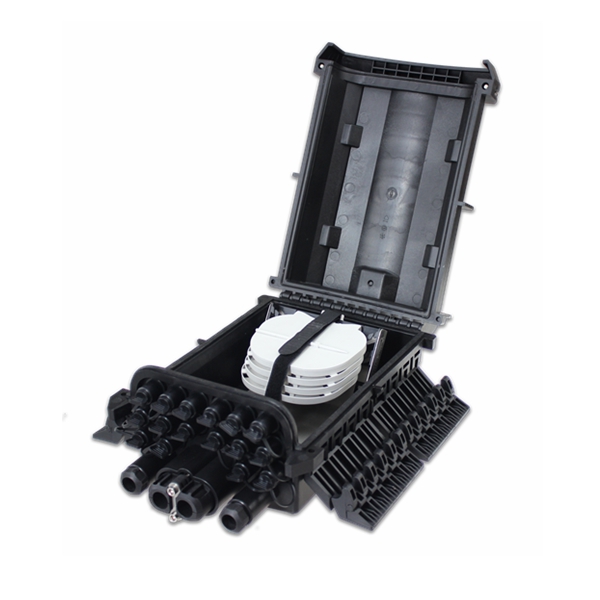

● Integrated with flap-up splice cassette and adapter holder.
● Impact test:1K10. Pull Force:100N. Full Rugged design.
● Maximum 144F splice capacity,stainless anti-rust bolts and nuts.
● Plug-and-play installation,easy for maintenance and expansion.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 1*8 or 1*16 PLC splitter can be installed in each splice tray as option.
● Mechanical sealing structure and mid-span cable entry.
● 16pcs of pre-installed reinforced water-proof adapter for SC.
● 1 mid-span cable entrance(10-16.5mm)for uncut cable and 2 mechanicals glands for distribution cable(8-16.5mm)




Configuration








Fiber Access Terminal Closure FATC-006 Parameter








Material




Size




Max Capacity




Ports




Weight




Color








Strengthen
Polymer
Plastic




AxBxC(mm)




Splice





PLC Splitter




16pcs of SC/APC




5kg




Black








385x245x155




144 Fibers
(6 trays,24F/tray)





2pcs of 1x8




or 16pcs of SC/UPC










Applications
● Wall mounting installation.
● Pole mounting installation.
● Aerial hanging installation.
● Suitable for Huawei pre-connectorized drop cable with reinforced connector.

Standard Accessories
Splice cassette and cable management tool,installtion bolts and nuts,protection sleeve,hose clamp,cable tube,wreach,cover holder,rubber seal for cable entrance.


Optional Accessories
Pole mounted kits,Aerial hanging kits.
