Fiber Access Terminal with Pre-connected Reinforced Adapters FATM-0408R
  • Fiber Access Terminal with Pre-connected Reinforced Adapters FATM-0408R
  • Fiber Access Terminal with Pre-connected Reinforced Adapters FATM-0408R
  • Fiber Access Terminal with Pre-connected Reinforced Adapters FATM-0408R

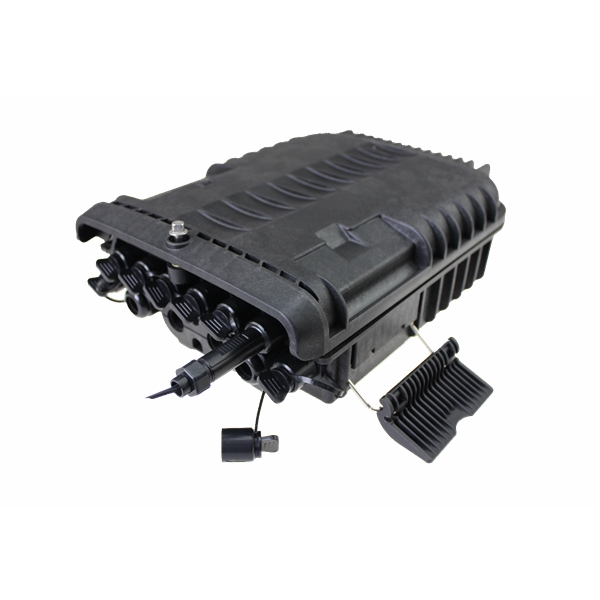

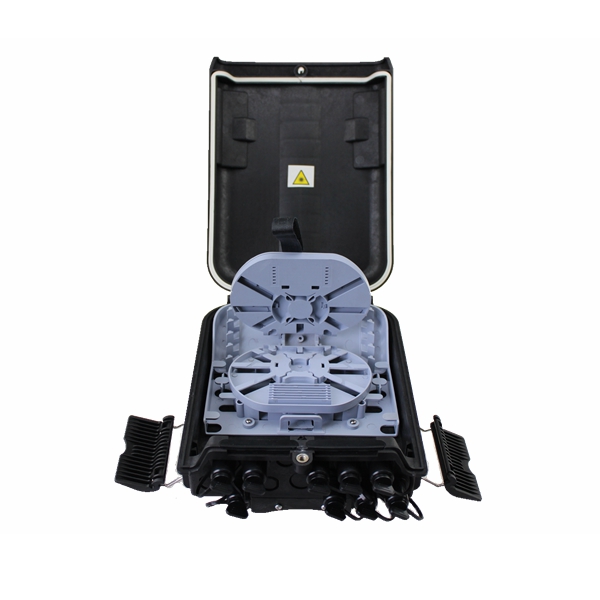

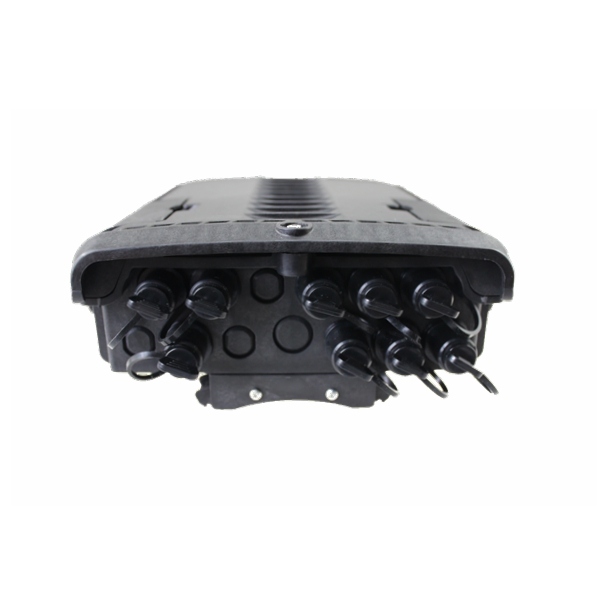

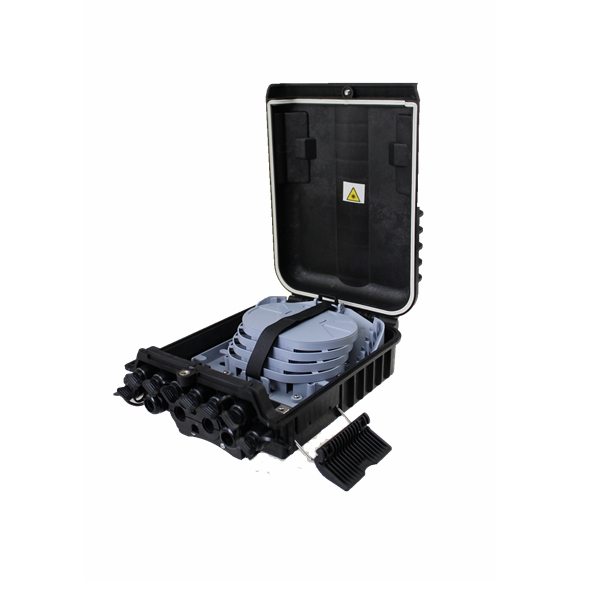

Fiber Access Terminal with Pre-connected Reinforced Adapters FATM-0408R

FATM-0408R fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.

Contact Us
PREV:Optic Distribution Point Fiber Access Terminal FATJ-0109R
NEXT:Fiber Access Terminal Cajas Terminales Opticas FATD-0208B
  • Product Information
  • Feedback
Among those famous fiber access terminal FATM-0408R manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FATM-0408R made in China. Our factory is waiting for your contact.


Features

●Water-proof design with IP-65 protection level for outdoor.

●8 x reinforced adapters for drop cable with reinforced connectors.

●Minimum fiber bending radius: 35mm.

●Plug-and-play installation, easy for maintenance and expansion.

●180 degree access with 2pcs of buckled lock structure.

●The box casing is made of industrial plastic PC+ABS material.

●Designated position for the placement of 1:8 and 1:16 PLC splitter.

●1 mid-span cable entrance(10-16.5mm) for uncut cable and 1 reserved cable entrances for distribution cable gland(8-13.5mm).

Configuration
Fiber Access Terminal FATM-0408R Parameter

Material

Size

Max Capacity

Nos of reinforced adapter

Weight

Color

PC+ABS

AxBxC(mm)

Splice 96 fibers

PLC splitter

8pcs SC/UPC

1.3kgs

Black

290*210*105


4 trays,24fiber/tray

4 pcs of 1x8 or 4 pcs of 1x16

or 8pcs SC/APC

Application
● wall-mounted installation
● pole-mounted installation

Standard Accessories

Splice trays x 2pcs, wall mounted kits, fiber protective sleeves, cable protection tube, key, PG 13.5 cable glands fordistribution ports.

Optional Accessories

pole-mounted kits

Hot Tags: cajas de terminales opticas,optical distribution box,fiber access terminal FATM-0408R factory, customized, manufacturers China, suppliers



Green Telecom

Registered in 1999,Green Telecom is professional China Fiber Access Terminal with Pre-connected Reinforced Adapters FATM-0408R suppliers annd OEM/ODM Fiber Access Terminal with Pre-connected Reinforced Adapters FATM-0408R company, engaged in the integration and service of customized projects of deployment and detection of optical communication network. Green Telecom offers the most comprehensive selection of fiber optic splice closure products to customers in different industries.

Green Telecom owns a factory of 40,000 square meters,with employees over 130 people,to manufacture 1) Telecom Racks and Cabinets 2) Plastic Fiber Termination Boxes 3) Fiber Passive Products 4) Fiber Test Instruments 5) custom Fiber Access Terminal with Pre-connected Reinforced Adapters FATM-0408R and etc.
