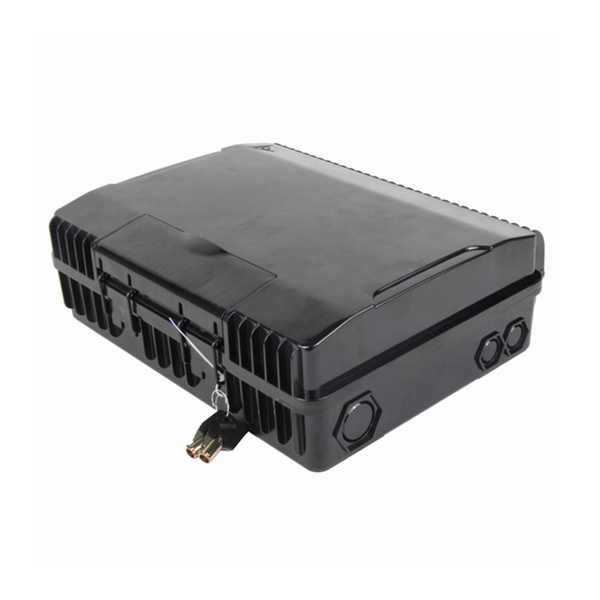

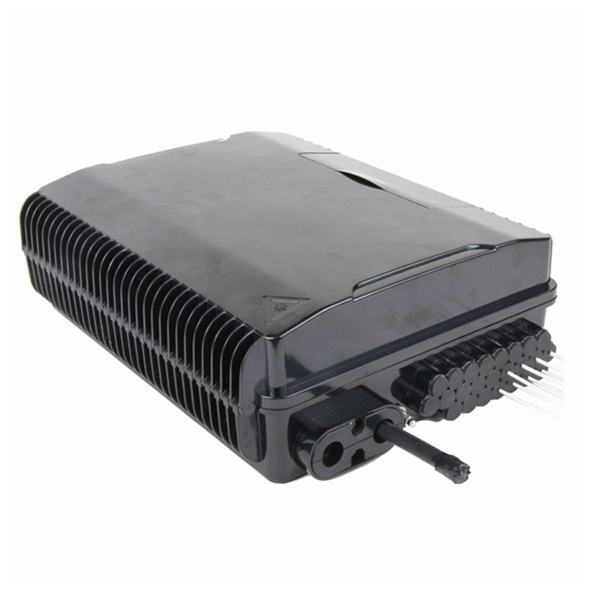

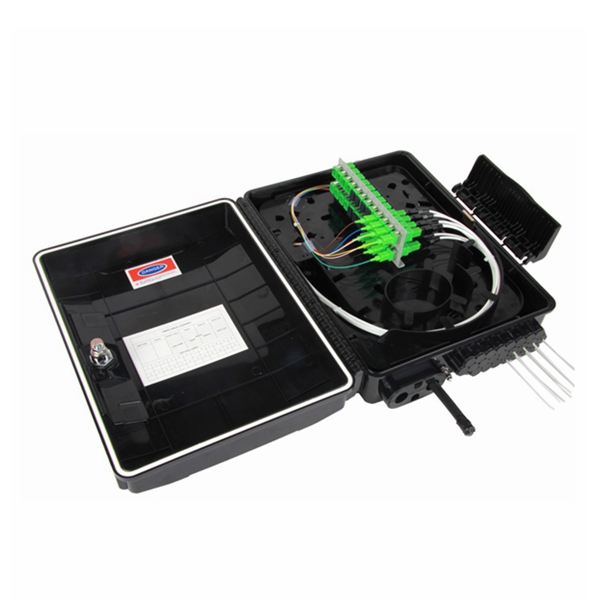

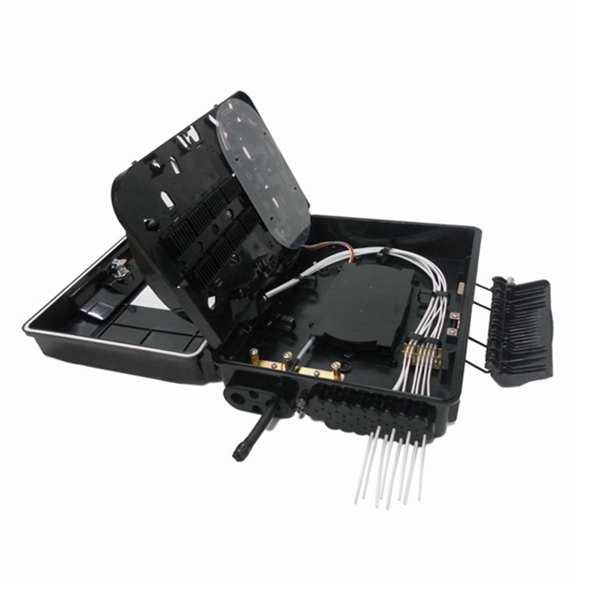

Fiber Distribution Box Fiber Access Terminal FAT-24B
  • Fiber Distribution Box Fiber Access Terminal FAT-24B
  • Fiber Distribution Box Fiber Access Terminal FAT-24B
  • Fiber Distribution Box Fiber Access Terminal FAT-24B

Fiber Distribution Box Fiber Access Terminal FAT-24B

FAT-24B fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
  • Product Information
  • Feedback
Among those famous fiber access terminal fat-24b manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal fat-24b made in China. Our factory is waiting for your contact.

Description
FAT-24B fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features
● Water-proof design with IP-65 Protection level.
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.
● 1*16 Splitter can be installed as an option.
● Efficient cable management.
● 24 ports cable entrance for drop cable.
Configuration
Fiber Access Terminal FAT-24B Parameter
Material
Size
Max Capacity
Installation Size
Weight
Color
PC+ABS
AxBxC(mm)
SC
Tube PLC
DxE(mm)
1.5kg
Light Grey
340x250x110
24 Ports
1 pcs 1x16
154x82

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,rubber seal for cable entrance.
Optional Accessories
Pole ring
