Fiber Access Terminal 24 cores Caja De Distribucion Box FAT-24A
  • Fiber Access Terminal 24 cores Caja De Distribucion Box FAT-24A
  • Fiber Access Terminal 24 cores Caja De Distribucion Box FAT-24A
  • Fiber Access Terminal 24 cores Caja De Distribucion Box FAT-24A

Fiber Access Terminal 24 cores Caja De Distribucion Box FAT-24A

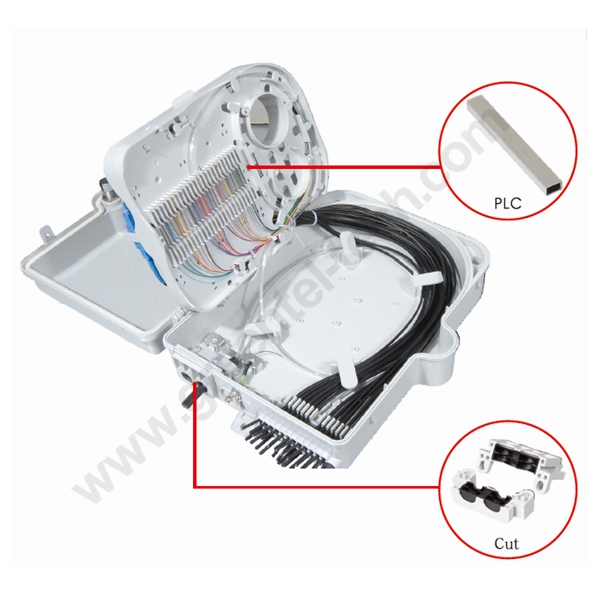

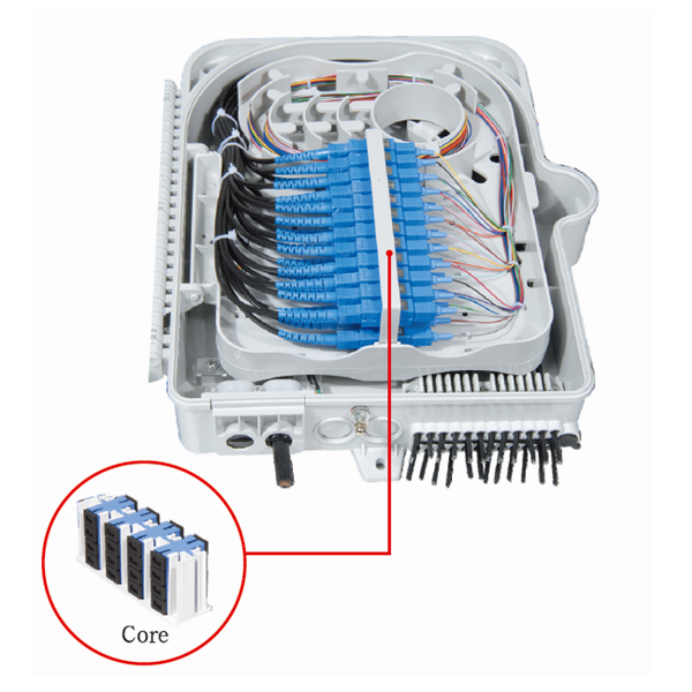

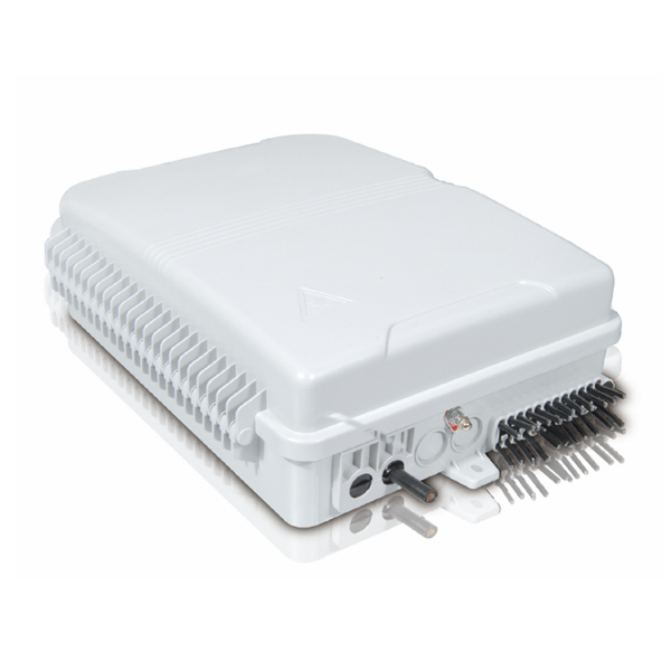

FAT-24A fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
PREV:Fiber Access Terminal FATB-0424A
NEXT:No next article
  • Product Information
  • Feedback
Among those famous fiber access terminal fat-24a manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal fat-24a made in China. Our factory is waiting for your contact.



Description
FAT-24A fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


Features
● Water-proof design with IP-65 Protection level.
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.
● 1x8 and 1*16 Splitter can be installed as an option.
● Efficient cable management.
● 24 ports cable entrance for drop cable.

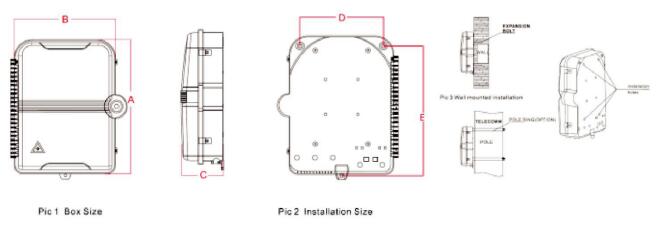

Configuration








Fiber Access Terminal FAT-24A Parameter








Material




Size




Max Capacity




Installation Size




Weight




Color








PC+ABS




AxBxC(mm)




SC




Box PLC




Tube PLC




DxE(mm)




1.5kg




Light Grey








317x237x101




24 Ports




1x16(SC)




2 pcs 1x8




206x274










Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber seal for cable entrance.


Optional Accessories
Pole ring, Extra lock and key
