Cajas Terminales Opticas FATM-0424AT
  • Cajas Terminales Opticas FATM-0424AT
  • Cajas Terminales Opticas FATM-0424AT

Cajas Terminales Opticas FATM-0424AT

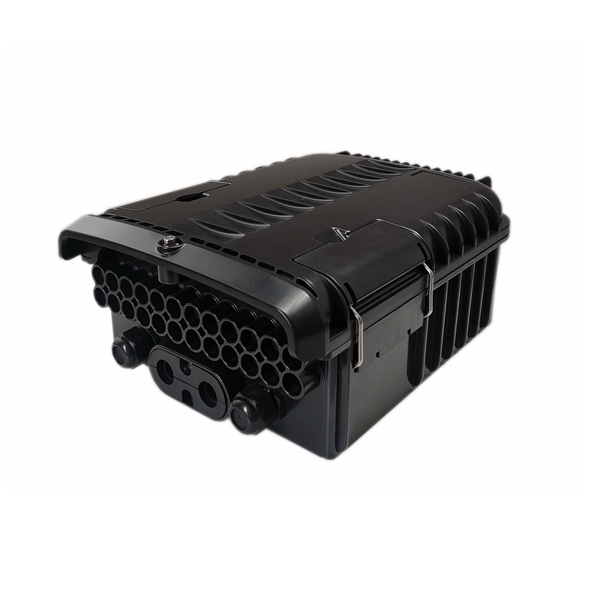

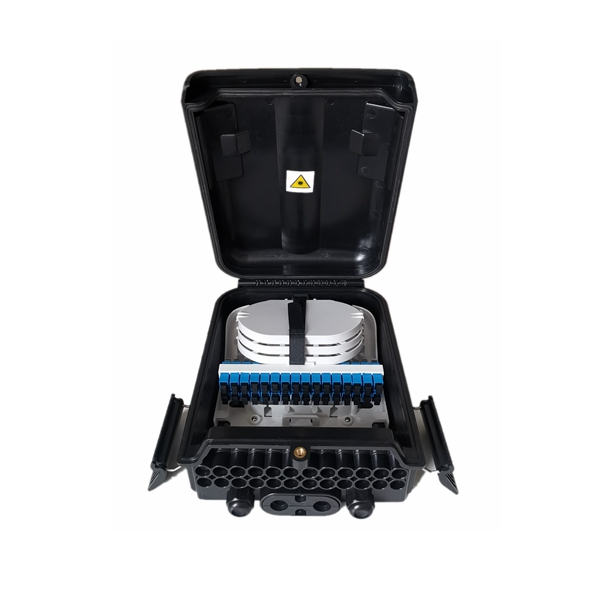

FATM-0424AT fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box

Contact Us
  • Product Information
  • Feedback
Among those famous fiber access terminal FATM-0424AT manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FATM-0424A  made in China. Our factory is waiting for your contact.


Features

● Water-proof design with IP-65 Protection level. ●180 degree access with 2pcs of buckled lock structure.Maximum 72F splice capacity, stainless anti-rust bolts and nuts . ● Easy for maintainance and expansion. ● Fiber bend radius control more than 40mm. ● Designated position for the placement of 3pcs of 1:8 splitter and 3pcs of 1:16 splitter. 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm).
Configuration
Fiber Access Terminal FATM-0424AT Parameter
Material
Size
Max Capacity
Nos of adapter
Weight
Color
PC+ABS
AxBxC(mm)

NO. of PLC splitter
24 pcs SC/UPC
1.5 kg
BLACK

290*210*115

Splice 72 fibers
3 pcs of 1x8 PLC
3 pcs of 1x16 PLC (SC)
or 24 pcs SC/APC
Application
● wall-mounted installation
pole-mounted installation

Standard Accessories

Wall mounted kits, fiber protective sleeves, key,  cable ties, manual of installation.

Optional Accessories
Pole mounted kits.
Hot Tags: fiber optic box,network access point,fiber access terminal FATM-0424AT factory, customized, manufacturers China, suppliers China, made in China, China made



Green Telecom

Registered in 1999,Green Telecom is professional China Cajas Terminales Opticas FATM-0424AT suppliers annd OEM/ODM Cajas Terminales Opticas FATM-0424AT company, engaged in the integration and service of customized projects of deployment and detection of optical communication network. Green Telecom offers the most comprehensive selection of fiber optic splice closure products to customers in different industries.

Green Telecom owns a factory of 40,000 square meters,with employees over 130 people,to manufacture 1) Telecom Racks and Cabinets 2) Plastic Fiber Termination Boxes 3) Fiber Passive Products 4) Fiber Test Instruments 5) custom Cajas Terminales Opticas FATM-0424AT and etc.
