Fiber Distribution Box Fiber Access Terminal FAT-24L
  • Fiber Distribution Box Fiber Access Terminal FAT-24L
  • Fiber Distribution Box Fiber Access Terminal FAT-24L
  • Fiber Distribution Box Fiber Access Terminal FAT-24L
  • Fiber Distribution Box Fiber Access Terminal FAT-24L
  • Fiber Distribution Box Fiber Access Terminal FAT-24L
  • Fiber Distribution Box Fiber Access Terminal FAT-24L
  • Fiber Distribution Box Fiber Access Terminal FAT-24L

Fiber Distribution Box Fiber Access Terminal FAT-24L

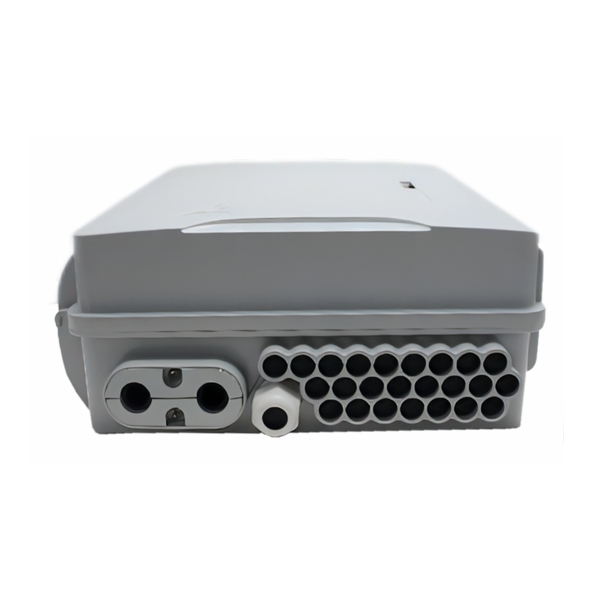

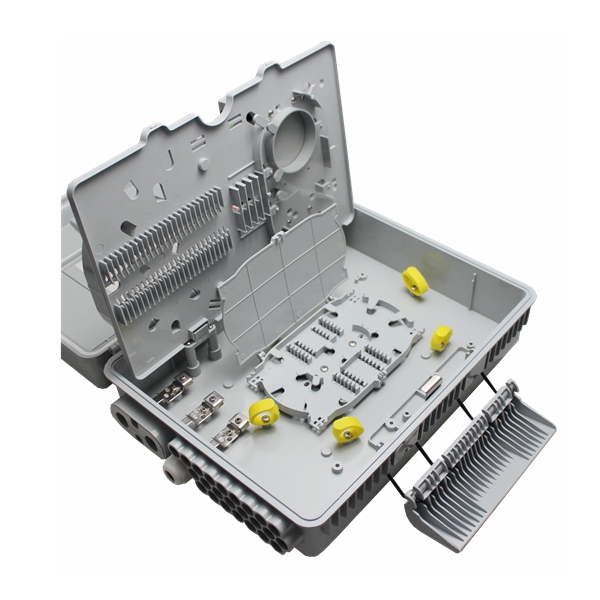

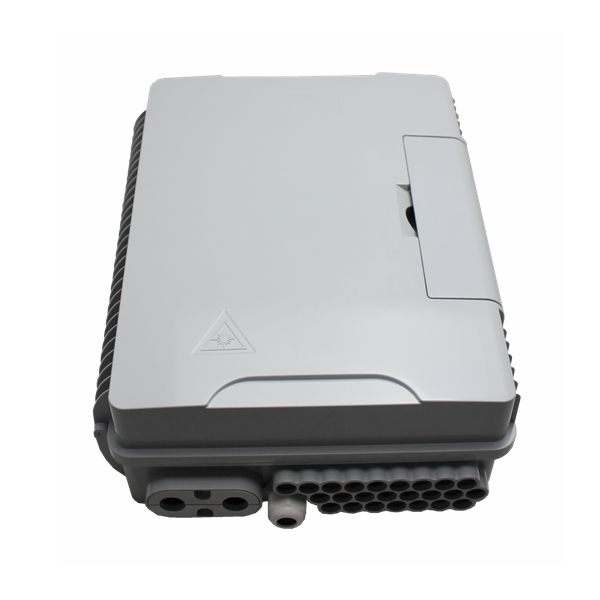

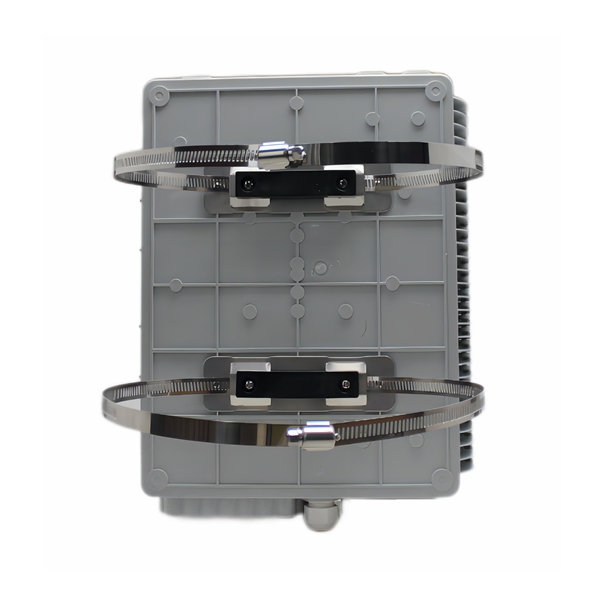

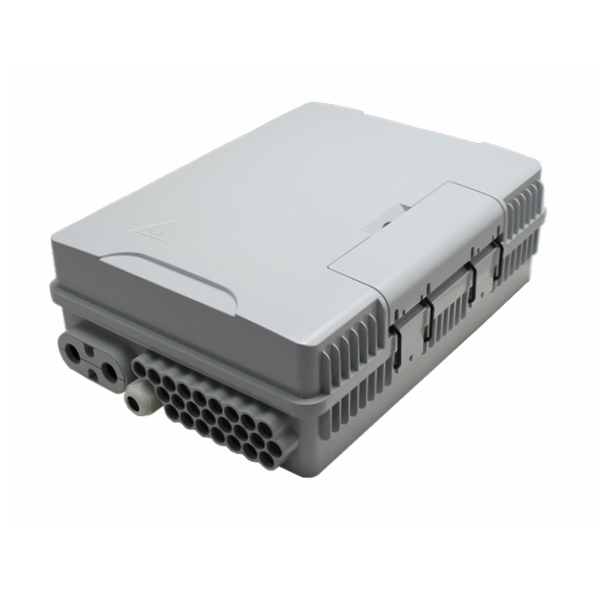

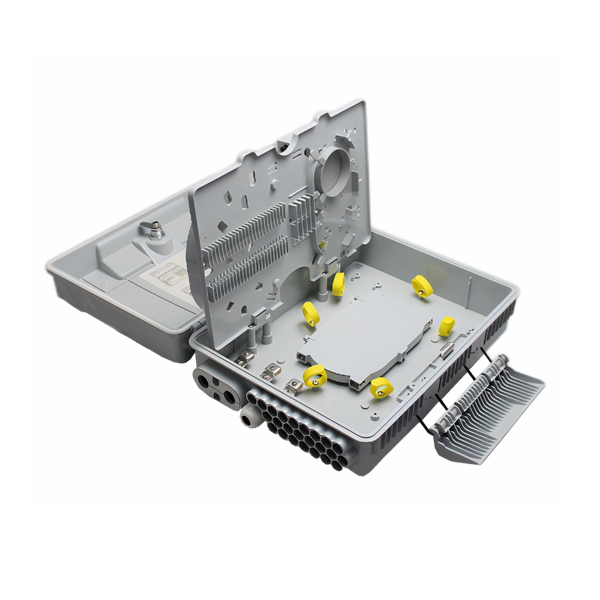

FAT-24L fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
PREV:Fiber Distribution Box Fiber Access Terminal FAN-0424S
NEXT:Fiber Access Terminal Cajas de Distribucion box FSP-0324A
  • Product Information
  • Feedback
Among those famous fiber access terminal fat-24L manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal fat-24L made in China. Our factory is waiting for your contact.

Description

FAT-24L fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features

● Water-proof design with IP-65 Protection level.

● Outdoor application for wall/pole installation.


● Maximum 24F splice capacity, stainless anti-rust bolts and nuts .


● Easy to maintain and future extension.


● Fiber bend radius control more than 40mm.


● 1 buckled clamp + lock structure, easy for installation.


● Suitable for 2pcs x 1:8 or 1pcs x 1:16 LGX type PLC splitters.


● Mid-Span for feeder cable(8-13.5mm)+1 x cable gland for distribution cable(8-13.5mm) + 16x drop cable(2x3mm) entrance.






Configuration








Fiber Access Terminal FAT-24L Parameter








Material




Size




Max Capacity




Weight




Color








PC+ABS




AxBxC(mm)




SPLICE




PLC Splitter




1.9kg




Light Grey








340x250x110




1 tray x 24F




2 pcs 1x8 LGX  or 1 pcs 1x16 LGX










Standard Accessories


Wall mounted kits, fiber protective sleeves, isolated tape, key, spiral fiber tube, cable ties, manual of installation.





Optional Accessories

Pole mounted kits.
