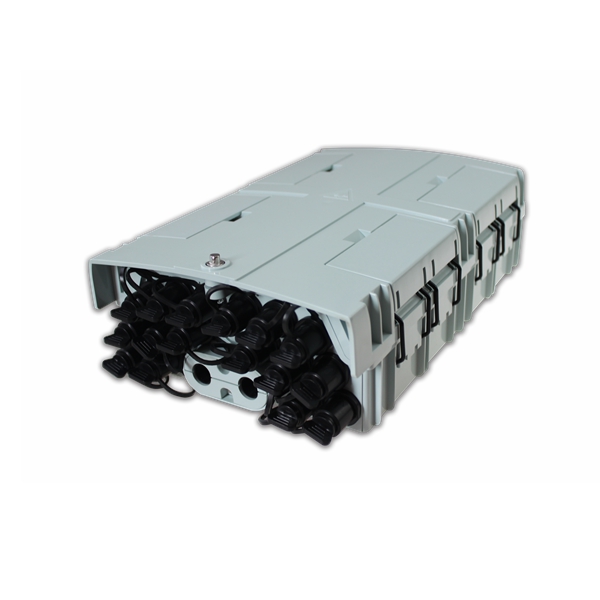

Fiber Access Terminal with Pre-connected Reinforced Adapters FATB-0216R
  • Fiber Access Terminal with Pre-connected Reinforced Adapters FATB-0216R
  • Fiber Access Terminal with Pre-connected Reinforced Adapters FATB-0216R

Fiber Access Terminal with Pre-connected Reinforced Adapters FATB-0216R

FATB-0216R fiber access termination box is able to hold up to 16 subscribers and 120 splicing point. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
PREV:Fiber Access Terminal NAP Box FATB-0416S
NEXT:Fiber Access Terminal FATB-0416L
  • Product Information
  • Feedback
Among those famous fiber access terminal FATB-0216R manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FATB-0216R made in China. Our factory is waiting for your contact.



Description
FATB-0216R fiber access termination box is able to hold up to 16 subscribers and 120 splicing point. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

● Water-proof design with IP-65 Protection level.

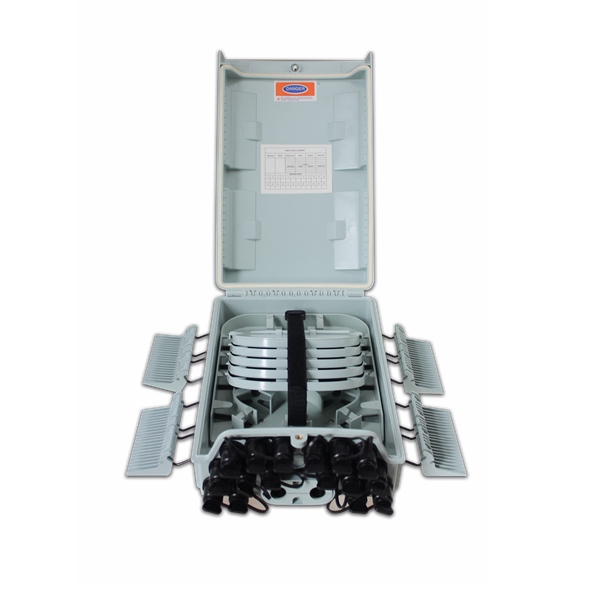

● Integrated with flap-up splice cassette and adapter holder.
● Maximum 120F splice capacity,stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 2pcs of 1*8 PLC splitter can be installed
● 16pcs of pre-installed reinforced water-proof adapter for SC.
● 1 mid-span cable entrance(10-16.5mm) for uncut cable.
Configuration
Fiber Access Terminal FATB-0216R Parameter

Material

Size

Max Capacity

Nos of adapter

Weight

Color

PC+ABS

AxBxC(mm)

Splice 120 fibers

PLC splitter

16pcs SC/UPC

1.85kg

Grey/Black

340x220x95

5 trays,24fiber/tray

2 pcs of 1x8

or 16pcs SC/APC

Application

● wall-mounted installation
● pole-mounted installation
● Aerial-hanging installation
● suitable for Huawei Pre-connectorized drop cable with reinforced connector.
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube,key,wrench,rubber seal for cable entrance.
Optional Accessories
Pole mounted kits.
