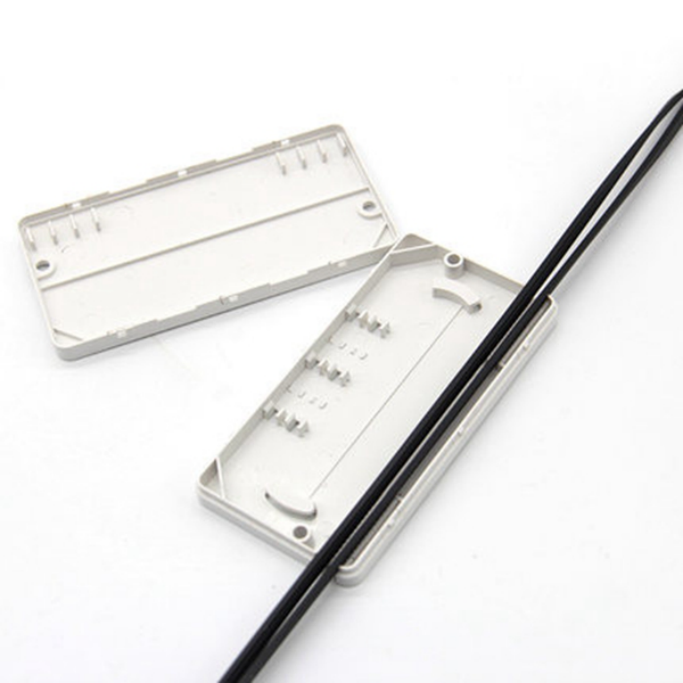

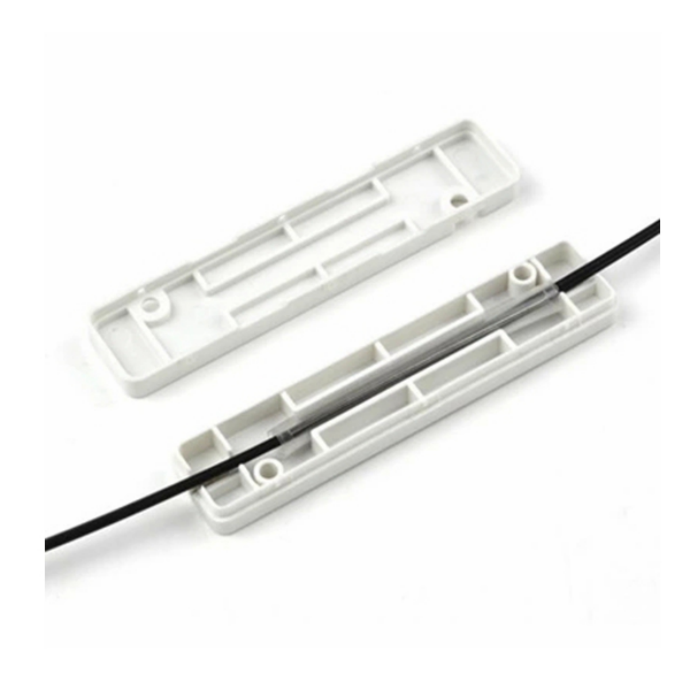

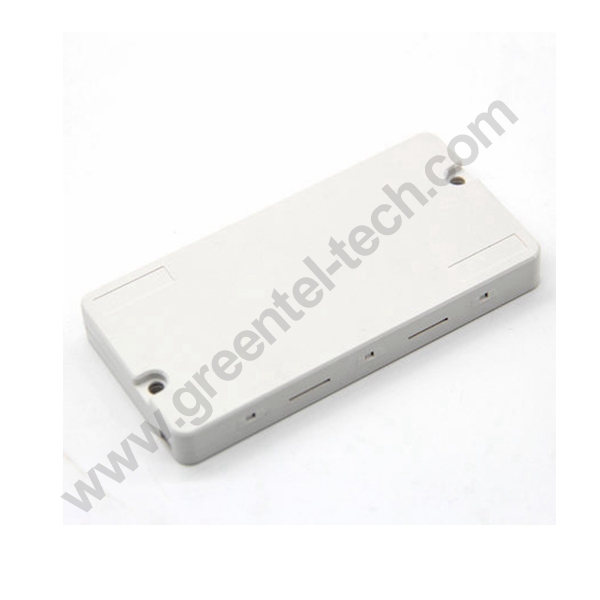

Drop Cable Splice Box B Series
  • Drop Cable Splice Box B Series
  • Drop Cable Splice Box B Series
  • Drop Cable Splice Box B Series

Drop Cable Splice Box B Series

DSB series drop cable splice box is able to hold up to 1-2 subscribers drop cable. It is used as a termination point for the drop cable to connect with pigtail cable access to ONT in FTTH indoor application. It integrates fiber splice connection in one solid protection box.
Contact Us
PREV:No previous article
NEXT:Drop Cable Splice Box A Series
  • Product Information
  • Feedback
Among those famous drop cable splice box b series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized drop cable splice box b series made in China. Our factory is waiting for your contact.


Description
DSB series drop cable splice box is able to hold up to 1-2 subscribers drop cable. It is used as a termination point for the drop cable to connect with pigtail cable access to ONT in FTTH indoor application. It integrates fiber splice connection in one solid protection box.


Features
● Dust-proof design with IP-45 Protection level.
● Industrial ABS PBT-V0 flame resistance material.
● Protect the fiber splice sleeve (45-60mm) from damage.
● Easy to maintain and extend the capacity.
● Suitable for the wall mounted installation.
● Embedded type surface, easy for installation and removal.
● 1-2 ports cable entrance choices for drop cable or pigtail.


Specification








Application




3.0x2.0mm Drop Cable or Indoor Cable








Fiber Cladding Diameter




125um(G652D&G657A)








Fiber Diameter




250um&900um








Fiber Type




Single Mode(SM) & Multi Mode(MM)








Tensile Strength




>50N








Repeat Uses Circles




5 times








Insertion Loss




<0.2dB








Return Loss




>50dB(UPC), >60dB(APC)








Bending Radius(mm)




> 15








Operation Temperature




-40~60(°C)








Storage Temperature




-40~85(°C)








Configuration








Drop Cable Splice Box DSB-1A,DSB-2A Parameter








Material




Size




Max Capacity




Mounting Method




Weight




Color








ABS




AxBxC(mm)




Model




Fiber Count




Wall Mounting




15g




White








18x11x85




DSB-1B




1 Cores








ABS




AxBxC(mm)




Model




Length




Wall Mounting




22g




White








48x10x95




DSB-2B




2 Cores








Standard Accessories
Installation nuts and bolts,protection sleeves.
