Fiber Splitter Terminal Closure FSTC-16QX
  • Fiber Splitter Terminal Closure FSTC-16QX
  • Fiber Splitter Terminal Closure FSTC-16QX

Fiber Splitter Terminal Closure FSTC-16QX

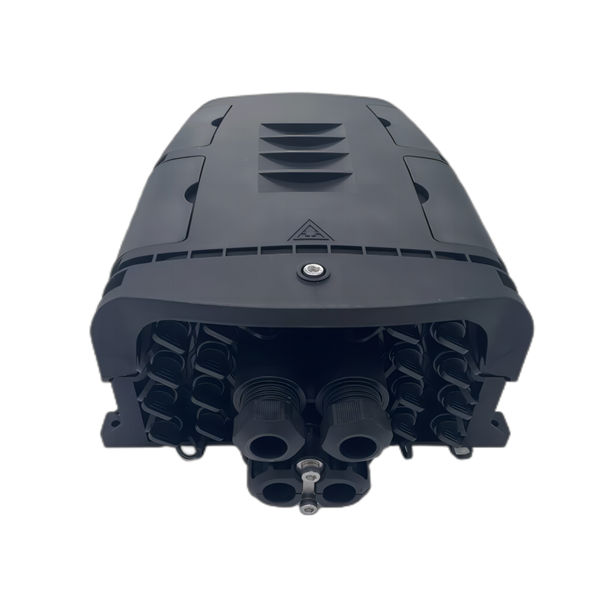

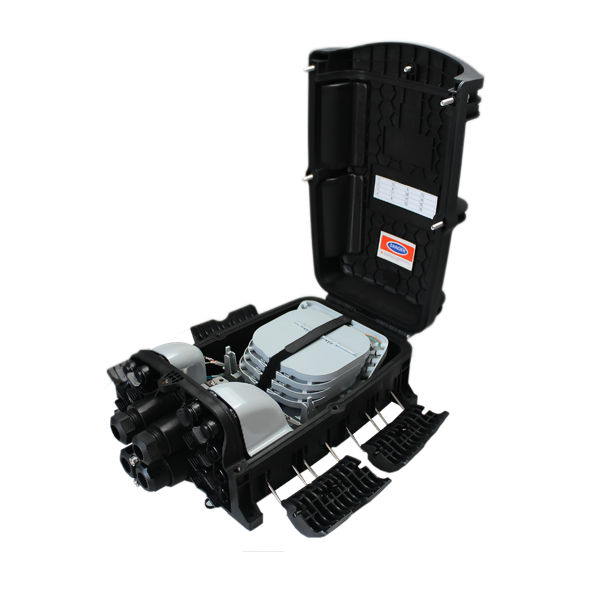

FSTC-16QX fiber splitter termination closure is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
PREV:Fiber Splitter Terminal Closure FSTC-001
NEXT:Fiber Splitter Terminal Closure FSTC-8QX
  • Product Information
  • Feedback
Among those famous fiber splitter terminal closure FSTC-16QX manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FSTC-16QX made in China. Our factory is waiting for your contact.


Features
  • Water-proof design with IP-68 Protection level.
  • Integrated with flap-up splice trays.
  • Impact test:IK10,Pull Force:100N,Full rugged design.
  • All stainless metal plate and anti-rusting bolts,nuts.
  • Fiber bend radius control more than 32mm.
  • 4x 12F splice trays,4 pcs of 1*16 PLC Splitters can be installed as an option.
  • Plug-and-play installation, easy for maintenance and expansion.
  • 180 degree access with 4pcs of buckled lock structure
  • 16x reinforced adapters for drop cable with reinforced connectors.
  • 1x mid-span cable entrance for uncut cables (7-18mm).and 2x mechanical glands for distribution cable(7-18mm)
Configuration
Fiber Splitter Terminal Closure FSTC-16QX Parameter

Material

Size

Max Capacity

Nos of Reinforced adapter

Weight

Color

PP+GF

AxBxC(mm)

Splice tray

PLC splitter

16pcs SC/UPC

2.6 kgs

Black/Light grey

355*256*140


4x 12F trays

4 pcs of 1x16
or 16pcs SC/APC

Application
● wall-mounted installation
● pole-mounted installation

Standard Accessories

Wall mounted kits, fiber protective sleeves, cable protection tube, 16x reinforced adapters SC/APC or SC/UPC(pre-installed).

Optional Accessories

Pole-mounted kits
